| Specification | LX | SX | X-Pro |
|---|---|---|---|
| Drive Type | 2WD | 4WD | 4WD |
| Transmission | 8-Speed Automatic (8AT) | 8-Speed Automatic (8AT) | 8-Speed Automatic (8AT) |
| Overall Length x Width x Height (mm) | 5410 x 1930 x 1930 | 5410 x 1930 x 1930 | 5410 x 1930 x 1960 |
| Wheelbase (mm) | 3270 | 3270 | 3270 |
| Wheel Tread Front/Rear (mm) | 1636 / 1624 | 1636 / 1624 | 1636 / 1624 |
| Overhang Front/Rear (mm) | 855 / 1285 | 855 / 1285 | 855 / 1285 |
| Coefficient of Drag (Cd) | 0.42 | 0.42 | 0.43 |
| Specification | LX | SX | X-Pro |
|---|---|---|---|

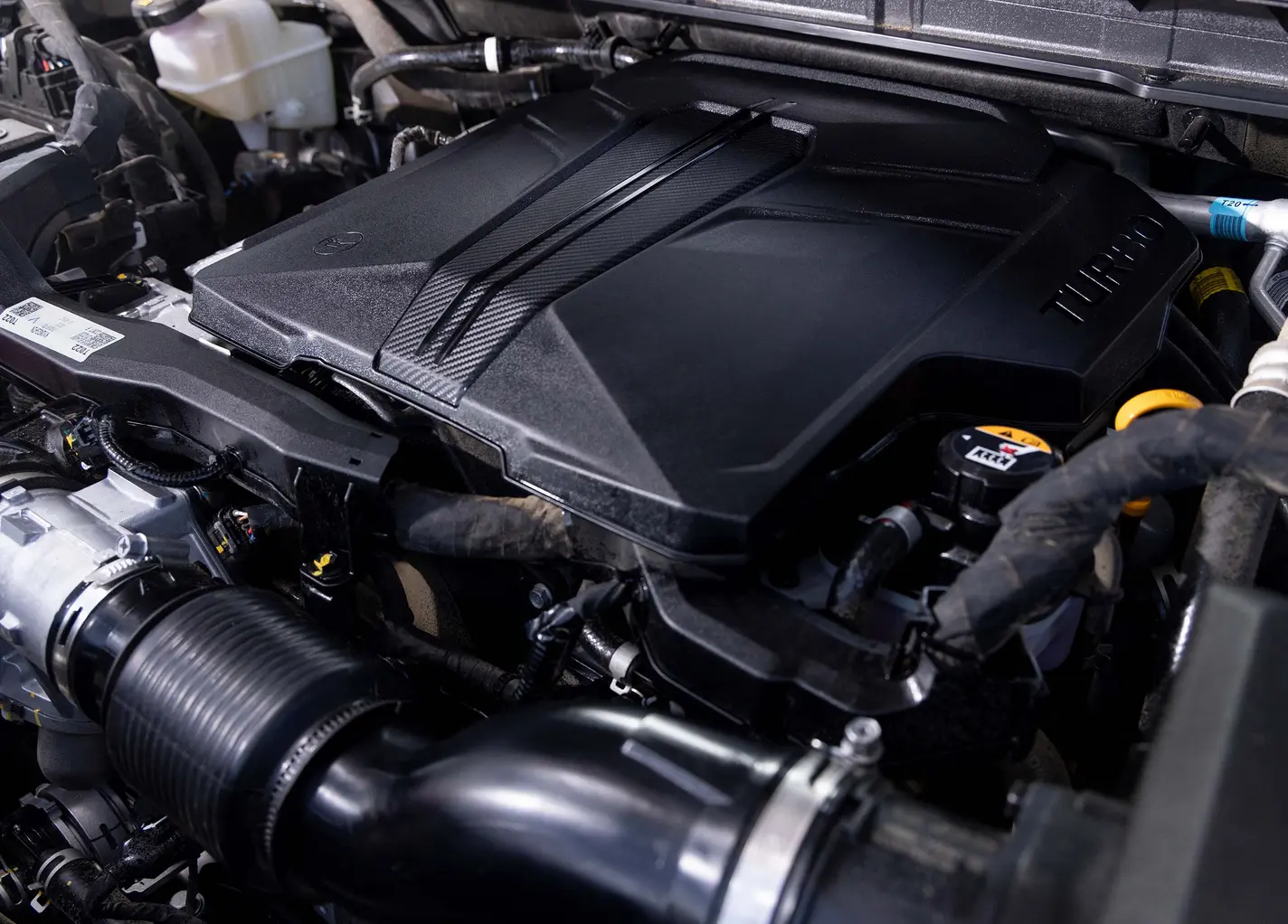

| Engine Type | In-line 4 Cylinder, 16-Valve HLA | In-line 4 Cylinder, 16-Valve HLA | In-line 4 Cylinder, 16-Valve HLA |
| Displacement (cc) | 2151 | 2151 | 2151 |
| Valve System | 16-Valve HLA | 16-Valve HLA | 16-Valve HLA |
| Maximum Power (kW @ rpm) | 154 @ 3800 | 154 @ 3800 | 154 @ 3800 |
| Maximum Torque (Nm @ rpm) | 440 / 1750-2750 | 440 / 1750-2750 | 440 / 1750-2750 |
| Compression Ratio | 16.0 : 1 | 16.0 : 1 | 16.0 : 1 |
| Bore x Stroke (mm) | 83.0 x 99.4 | 83.0 x 99.4 | 83.0 x 99.4 |
| Fuel System | Common Rail Direct Injection (CRDi) | Common Rail Direct Injection (CRDi) | Common Rail Direct Injection (CRDi) |
| Fuel Type | Diesel (10ppm - 50ppm) | Diesel (10ppm - 50ppm) | Diesel (10ppm - 50ppm) |
| Fuel Consumption (L/100km) | 7.5 (Combined) | 7.8 (Combined) | 7.8 (Combined) |
| Acceleration (0-100 km/h) | 10.4 sec | 10.4 sec | 10.4 sec |
| Maximum Speed (km/h) | 185 | 185 | 185 |
| CO2 Emissions Combined (g/km) | 198 | 206 | 206 |
| Specification | LX | SX | X-Pro |
|---|---|---|---|
| Ground Clearance (mm) | 231 | 224 | 252 |

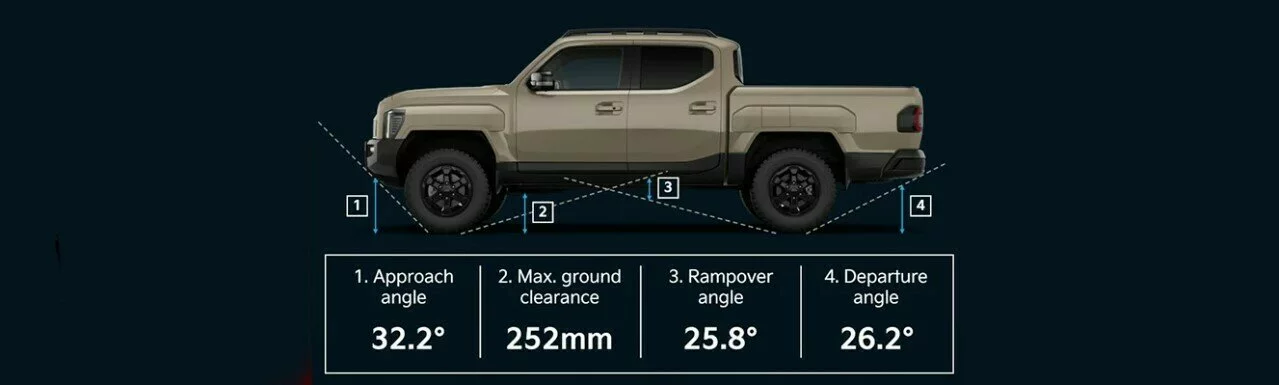

| Approach / Departure Angle (°) | 28.9 / 25.0 | 28.9 / 25.0 | 32.2 / 26.2 |
| Ramp Breakover Angle (°) | 23.7 | 23.7 | 25.8 |
| Wading Depth (mm) | 800 | 800 | 800 |
| Bed Dimensions (L x W x H mm) | 1573 x 1600 x 543 | 1573 x 1600 x 543 | 1512 x 1572 x 540 |
| Bed Capacity (VDA, L) | 1212 | 1212 | 1173 |
| Curb Weight (kg) | 2178 | 2275 | 2317 |
| Gross Vehicle Mass (GVM) (kg) | 3240 | 3250 | 3250 |
| Gross Combination Weight (kg) | 6200 | 6200 | 6200 |
| Payload (kg) | 1123 | 1008 | 1008 |
| Towing Mass Braked / Unbraked (kg) | 3500 / 750 | 3500 / 750 | 3500 / 750 |
| Fuel Tank Capacity (L) | 80 | 80 | 80 |
| Front Brakes | Ventilated Disc (325mm) | Ventilated Disc (325mm) | Ventilated Disc (325mm) |
| Rear Brakes | Ventilated Disc (325mm) | Ventilated Disc (325mm) | Ventilated Disc (325mm) |
| Brake Booster | Tandem (235mm) | Tandem (235mm) | Tandem (235mm) |
| Front Suspension | Double Wishbone | Double Wishbone | Double Wishbone |
| Rear Suspension | Rigid Axle (Leaf Spring) | Rigid Axle (Leaf Spring) | Rigid Axle (Leaf Spring) |
| Steering Type | 4-Spoke Steering Wheel / C-MDPS | 4-Spoke Steering Wheel / C-MDPS | 4-Spoke Steering Wheel / C-MDPS |
| Minimum Turning Radius (m) | 6.17 (C to C) | 6.17 (C to C) | 6.25 Off-road (C to C) |
| Underseat Storage Capacity | 31L | 31L | 31L |
| Drive Mode Select | • | • | • |
| High Performance Damper (Front & Rear) | • | • | • |
| Mechanical Locking Differential | - | • | - |
| Electronic Locking Differential | - | - | • |
| X-TREK Mode (Off-road Crawl Assist) | - | - | • |
| Specification | LX | SX | X-Pro |
|---|---|---|---|
| Wheels | 17" Alloy | 17" Alloy | 17" Alloy |
| Tyre Size | 265/65R17 | 265/65R17 | 265/70R17 |
| Off-Road Tyre | - | - | • |
| Spare Wheel | Full Size Alloy | Full Size Alloy | Full Size Alloy |
| Specification | LX | SX | X-Pro |
|---|---|---|---|
| Auto Light Control | • | • | • |
| LED Daytime Running Lights | • | • | • |
| LED Multi-Focus Reflector (3-cell) Headlamps | • | • | - |
| LED Vertical Projection Headlamps | - | - | • |
| LED Fog Lamps (Front & Rear) | • | • | • |
| LED High-Mounted Stop Lamp | • | • | • |
| LED Rear Combination Lamp | • | • | • |
| LED Front & Rear Turn Indicators | • | • | • |
| Side Mirror Puddle Lamps | • | • | • |
| Mud Guards | • | • | • |
| Auto-Folding Side Mirrors | • | • | • |
| Solar-Control Glass (Windshield & Front Door) | • | • | • |
| Cargo Deck (Load Box) | • | • | • |
| Load Box Bed Liner | • | • | • |
| Body-Colour Outside Handles | • | • | • |
| Gas Lift Tailgate Opening & Lift Up Tailgate | • | • | • |
| Cargo Bed Rails & Cleats (2) | • | • | - |
| Roof Rack | • | • | • (Bridge Type) |
| Side Steps | - | • | • |
| Fender Garnish Body Colour | • | • | • |
| LED Multi-Focus Reflector Headlamps | - | - | - |
| Specification | LX | SX | X-Pro |
|---|---|---|---|
| Leg Room Front / Rear (mm) | 1052 / 915 | 1052 / 915 | 1052 / 830~940 (Sliding & Reclining) |
| Head Room Front / Rear (mm) | 1044 / 1004 | 1044 / 1004 | 1044 / 1004 |
| Shoulder Room Front / Rear (mm) | 1522 / 1516 | 1522 / 1516 | 1522 / 1516 |
| Hip Room Front / Rear (mm) | 1449 / 1410 | 1449 / 1410 | 1449 / 1410 |

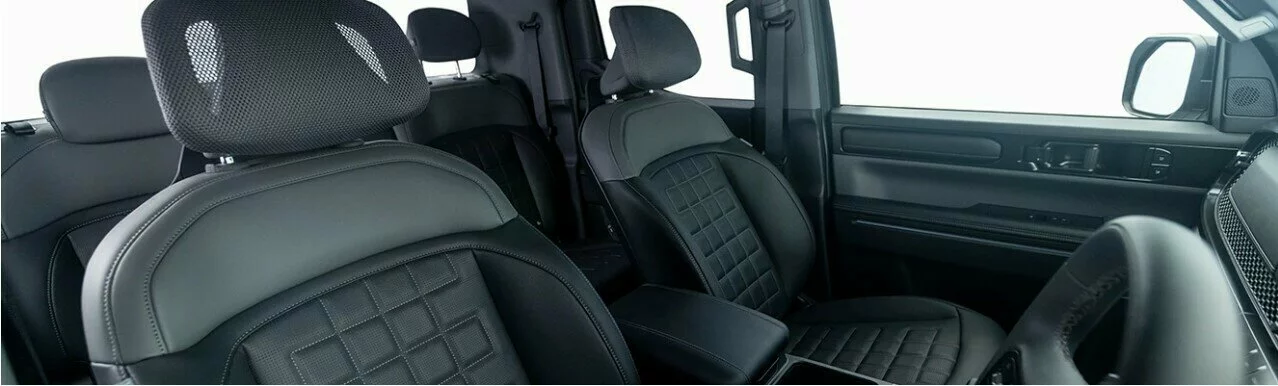

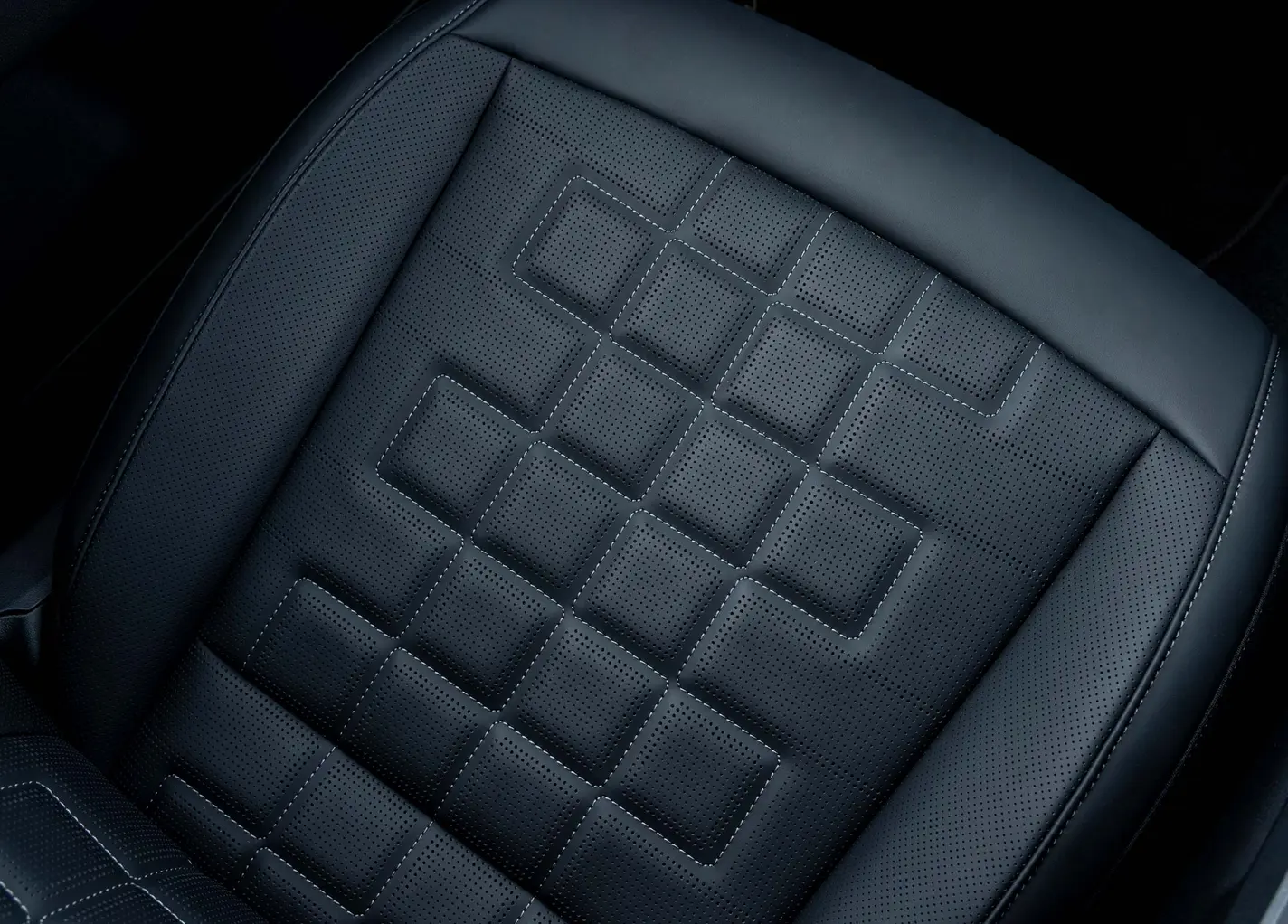

| Seat Material | Cloth | Artificial Leather | Artificial Leather |
| 60:40 Split Back Folding Rear Seat | • | • | • |
| Driver Seat Height Adjustment | Manual | Power Adjustment | Power Adjustment |
| Electric Driver Seat Adjustment | - | Driver Seat | - |
| Electronic Lumbar Support | - | Driver Seat | Driver & Passenger |
| Artificial Leather Upholstery | - | • | • |
| Sliding Rear Seats (Left & Right) | - | - | • |
| Heated Steering Wheel | - | - | • |
| Alloy Pedals | - | - | • |
| Overhead Console Lamp & 2nd Row Room Lamp | • | • | • |
| Remote Steering Controls | • | • | • |
| Rear Occupant Alert | • | • | • |
| Illuminated Sunvisor with Vanity Mirror | • | • | • |
| Back Seat Panel with Pocket | - | Driver & Passenger | Driver & Passenger |
| Electric Driver & Passenger Seat Adjustment | - | - | • |
| Specification | LX | SX | X-Pro |
|---|---|---|---|
| Air Conditioner | Manual | Automatic Dual Zone | Automatic Dual Zone |
| Rear Air Conditioner Vents | • | • | • |
| Battery Saver System | • | • | • |
| Smart Key with Push Button Start | • | • | • |
| Centre Console Armrest with Storage Box | • | • | • |
| Center Console Power Outlet | • | • | • |
| Electric Windows (Front & Rear) | • | • | • |
| Privacy Window Tinting with Heating | • | • | • |
| Auto Window Defogger | - | • | • |
| Electrochromatic Rearview Mirror | - | • | • |
| Rain Sensing Wipers | - | • | • |
| Electric Windows Safety Control (Driver & Passenger) | - | - | • |

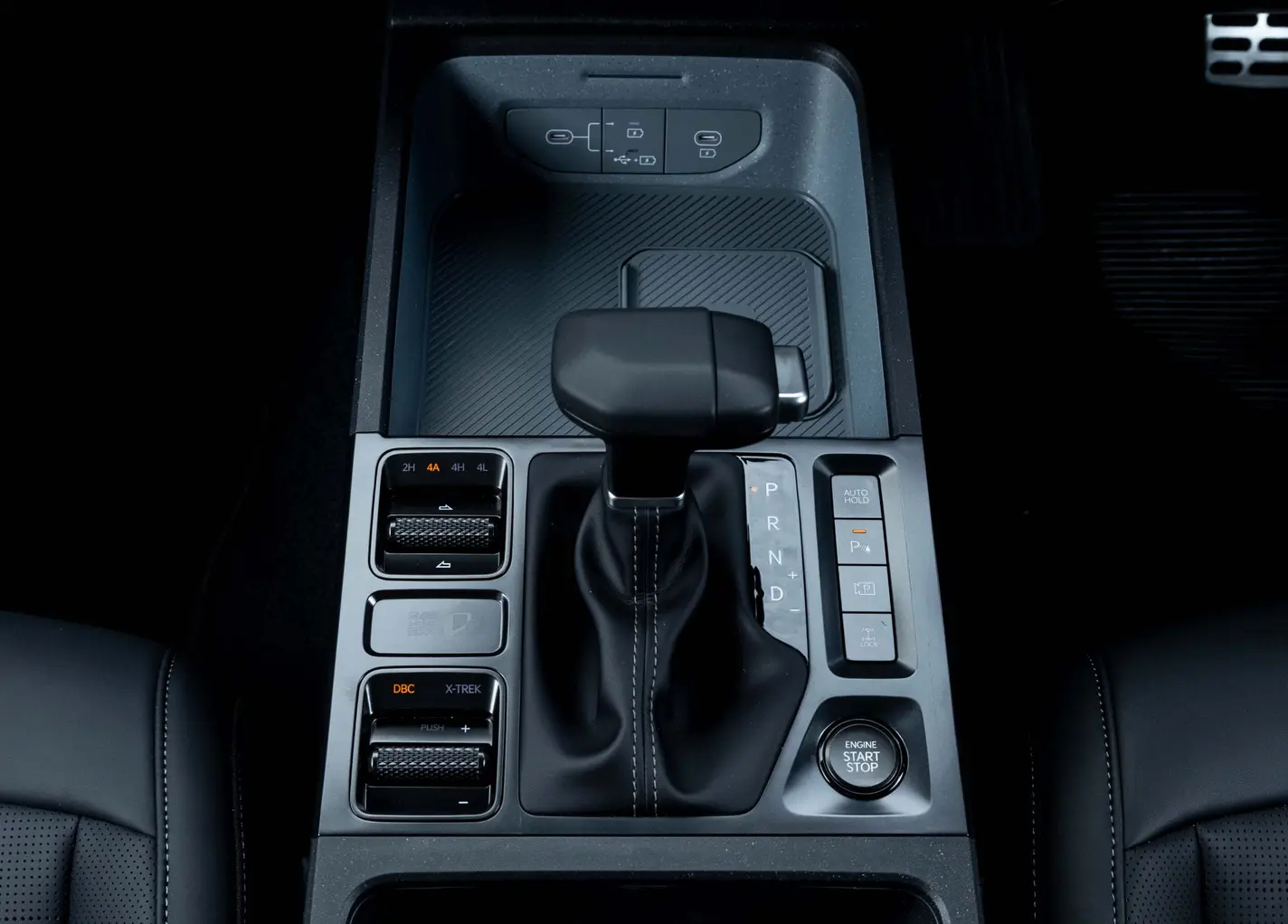

| Paddle Shifter (Lever Type) | - | - | • |
| Mood Lamp with Controller | - | - | • |
| Front Heated Seats (3-Level Control) | - | - | • |
| Front Ventilated Seats | - | - | • |
| Rear Cup Holder at Center Armrest | - | - | • |
| Specification | LX | SX | X-Pro |
|---|---|---|---|
| Infotainment Display | 12.3" AV Integrated Touchscreen | 12.3" AV Integrated Touchscreen | 12.3" AV Integrated Touchscreen |
| Wireless Apple CarPlay & Android Auto | • | • | • |
| Bluetooth with Voice Recognition | • | • | • |

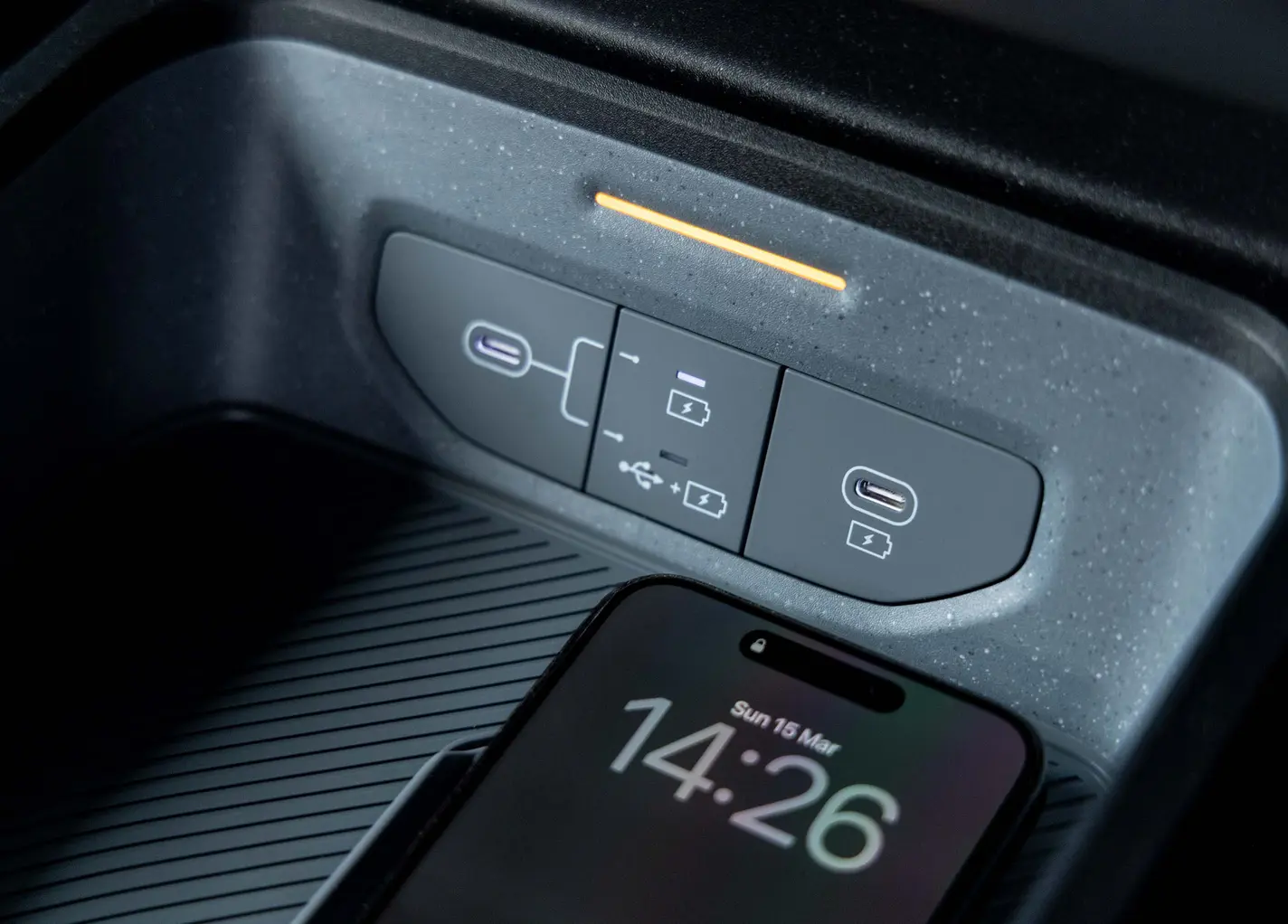

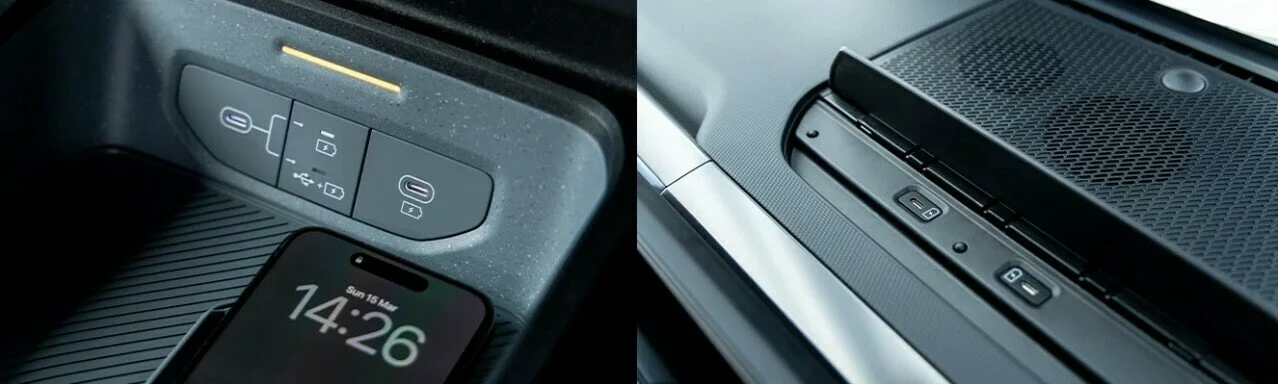

| Front USB Port & Charger | 2 Ports | 2 Ports | 4 Ports |
| Front Seat USB Charge Ports | - | 2 Ports | 2 Ports |
| Instrument Cluster Display | Digital 4" TFT Integrated Cluster | Digital 12" TFT Integrated LCD Cluster | Digital 12" TFT Integrated LCD Cluster |
| Wireless Smartphone Charger | - | • | • |
| Speaker System | 6 Speakers + Tweeter | 6 Speakers + Tweeter | 8 Speakers |

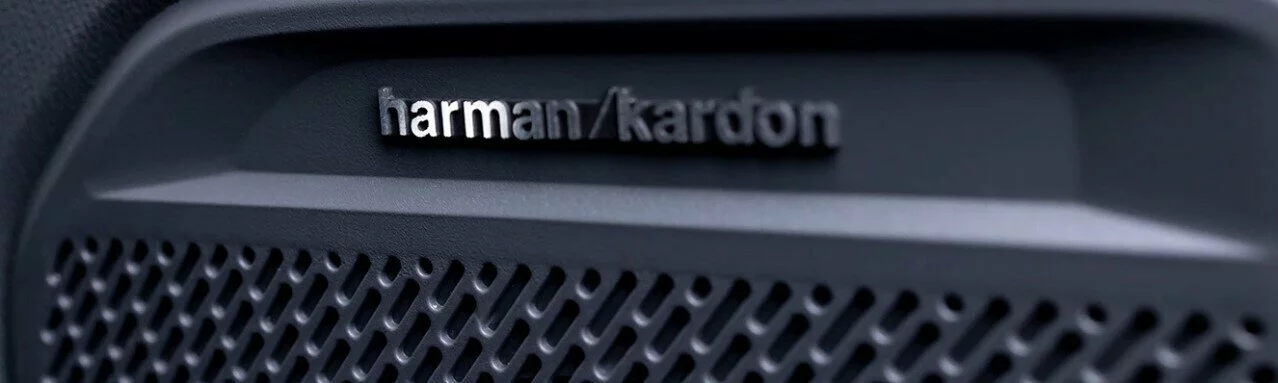

| Harman Kardon Premium Sound System | - | - | • |
| Specification | LX | SX | X-Pro |
|---|---|---|---|
| Airbags | Front, Thorax & Pelvis, Curtain | Front, Thorax & Pelvis, Curtain | Front, Thorax & Pelvis, Curtain |
| Anti-Lock Braking System (ABS) | • | • | • |
| Electric Parking Brake (EPB) with Auto Hold | • | • | • |
| Electronic Stability Control (ESC) | • | • | • |
| Hill Start Assist Control (HAC) | • | • | • |
| Downhill Brake Control (DBC) | • | • | • |
| Multi-Collision Braking System (MCB) | • | • | • |
| Trailer Stability Assist (TSA) | • | • | • |
| Integrated Trailer Brake Controller (ITBC) | - | - | • |
| Manual Speed Limit Assist (MSLA) | • | • | • |
| Cruise Control | Conventional | Smart Cruise Control (SCC) | Smart Cruise Control (SCC) |
| Central Locking with Immobiliser | • | • | • |
| Rear View Camera | • | • | • |
| ISOFIX Child Seat Anchors | • | • | • |
| Parking Distance Warning (PDW) | Front & Rear | Front, Rear and Side | Front, Rear and Side |
| Smart Cruise Control with DMS | - | • | • |

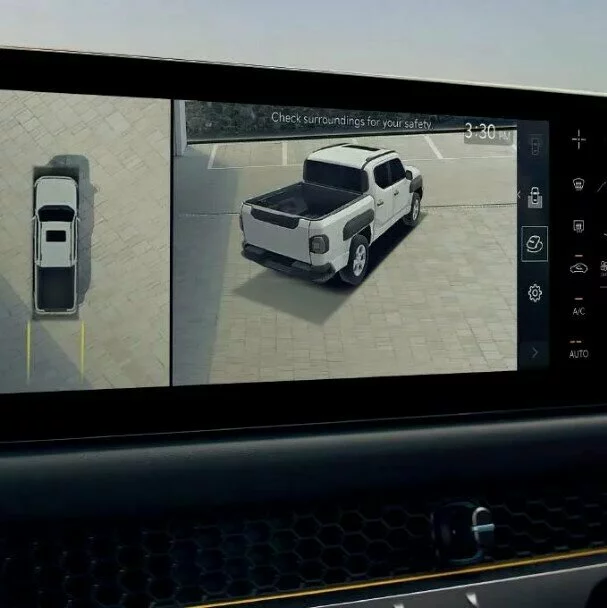

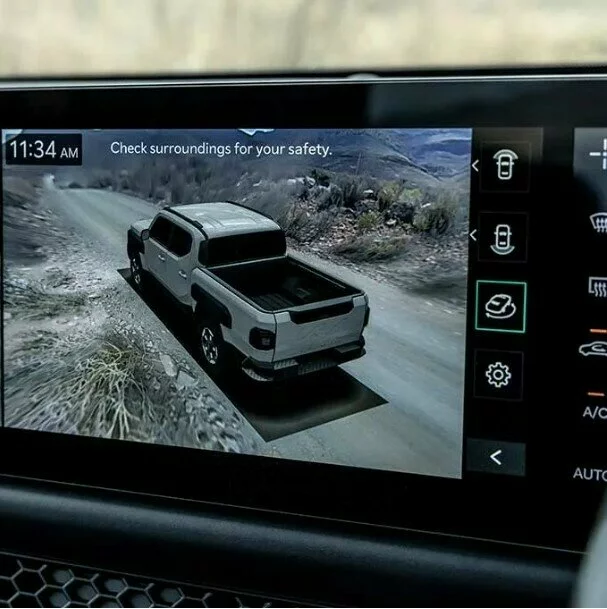

| Surround View Monitor (SVM) | - | • | • |
| Blind-Spot View Monitor (BVM) | - | • | • |
| Parking Collision-Avoidance Assist Reverse (PCA) | - | • | • |

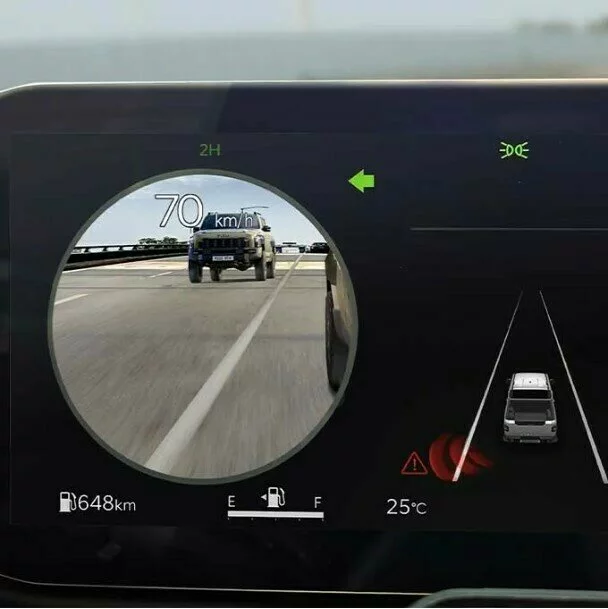

| Blind-Spot Collision-Avoidance Assist (BCA) | - | • | • |
| Lane Keeping Assist (LKA) | - | • | • |
| Forward Collision-Avoidance Assist (FCA) | - | • | • |
| Lane Following Assist 2 (LFA 2) | - | • | • |
| Tire Pressure Monitoring System (TPMS High Line) | • | • | • |
| Specification | LX | SX | X-Pro |
|---|---|---|---|
| Warranty | 5 Years / Unlimited Kilometre | 5 Years / Unlimited Kilometre | 5 Years / Unlimited Kilometre |
| Service Plan | 6 Years / 90 000 km | 6 Years / 90 000 km | 6 Years / 90 000 km |
| Roadside Assistance | 5 Years / Unlimited Kilometre | 5 Years / Unlimited Kilometre | 5 Years / Unlimited Kilometre |
