| Specification | LX 1.6D CRDi | EX 1.6D CRDi | GT-Line 1.6 T-GDi | GT-Line Plus 1.6D CRDi | GT-Line Plus 1.6 T-GDi | GT-Line S 1.6 T-GDi |
|---|---|---|---|---|---|---|
| Drive Type | 2WD | 2WD | 2WD | 2WD | 2WD | 2WD |
| Transmission | 7-Speed Dual Clutch Transmission (7DCT) | 7-Speed Dual Clutch Transmission (7DCT) | 7-Speed Dual Clutch Transmission (7DCT) | 7-Speed Dual Clutch Transmission (7DCT) | 7-Speed Dual Clutch Transmission (7DCT) | 7-Speed Dual Clutch Transmission (7DCT) |
| Overall Dimensions (L x W x H) (mm) | 4515 x 1865 x 1650 | 4515 x 1865 x 1650 | 4515 x 1865 x 1650 | 4515 x 1865 x 1650 | 4515 x 1865 x 1650 | 4515 x 1865 x 1650 |
| Wheelbase (mm) | 2680 | 2680 | 2680 | 2680 | 2680 | 2680 |
| Overhang Front / Rear (mm) | 905 / 930 | 905 / 930 | 905 / 930 | 905 / 930 | 905 / 930 | 905 / 930 |
| Minimum Ground Clearance (mm) | 170 | 170 | 170 | 170 | 170 | 170 |
| Specification | LX 1.6D CRDi | EX 1.6D CRDi | GT-Line 1.6 T-GDi | GT-Line Plus 1.6D CRDi | GT-Line Plus 1.6 T-GDi | GT-Line S 1.6 T-GDi |
|---|---|---|---|---|---|---|
| Engine Type | 1.6D CRDi Diesel | 1.6D CRDi Diesel | 1.6 Turbo Petrol (T-GDi) | 1.6D CRDi Diesel | 1.6 Turbo Petrol (T-GDi) | 1.6 Turbo Petrol (T-GDi) |
| Displacement (cc) | 1582 | 1582 | 1598 | 1582 | 1598 | 1598 |
| Valve System | 16-Valve HLA | 16-Valve HLA | 16-Valve HLA | 16-Valve HLA | 16-Valve HLA | 16-Valve HLA |
| Maximum Power | 100 kW @ 4,000 rpm | 100 kW @ 4,000 rpm | 132 kW @ 5,500 rpm | 100 kW @ 4,000 rpm | 132 kW @ 5,500 rpm | 132 kW @ 5,500 rpm |
| Maximum Torque | 320 Nm @ 2,000–2,250 rpm | 320 Nm @ 2,000–2,250 rpm | 265 Nm @ 1,500–4,500 rpm | 320 Nm @ 2,000–2,250 rpm | 265 Nm @ 1,500–4,500 rpm | 265 Nm @ 1,500–4,500 rpm |
| Compression Ratio | 15.9 : 1 | 15.9 : 1 | 10.5 : 1 | 15.9 : 1 | 10.5 : 1 | 10.5 : 1 |
| Bore x Stroke (mm) | 77.0 x 85.8 | 77.0 x 85.8 | 75.6 x 89.0 | 77.0 x 85.8 | 75.6 x 89.0 | 75.6 x 89.0 |
| Fuel Injection System | Common Rail Direct Injection (CRDi) | Common Rail Direct Injection (CRDi) | Gasoline Direct Injection (GDi) | Common Rail Direct Injection (CRDi) | Gasoline Direct Injection (GDi) | Gasoline Direct Injection (GDi) |
| Fuel Type | Diesel | Diesel | Petrol | Diesel | Petrol | Petrol |
| Acceleration (0-100 km/h) | 11.4 sec | 11.4 sec | 8.8 sec | 11.4 sec | 8.8 sec | 8.8 sec |
| Maximum Speed (km/h) | 180 | 180 | 201 | 180 | 201 | 201 |
| CO2 Emissions Combined (g/km) | 129 | 129 | 149 | 129 | 149 | 149 |
| Specification | LX 1.6D CRDi | EX 1.6D CRDi | GT-Line 1.6 T-GDi | GT-Line Plus 1.6D CRDi | GT-Line Plus 1.6 T-GDi | GT-Line S 1.6 T-GDi |
|---|---|---|---|---|---|---|
| Gross Vehicle Mass (GVM) (kg) | 2090 | 2090 | 2115 | 2090 | 2115 | 2115 |
| Towing Mass Braked / Unbraked (kg) | 1650 / 750 | 1650 / 750 | 1650 / 750 | 1650 / 750 | 1650 / 750 | 1650 / 750 |
| Fuel Tank Capacity (L) | 54 | 54 | 54 | 54 | 54 | 54 |

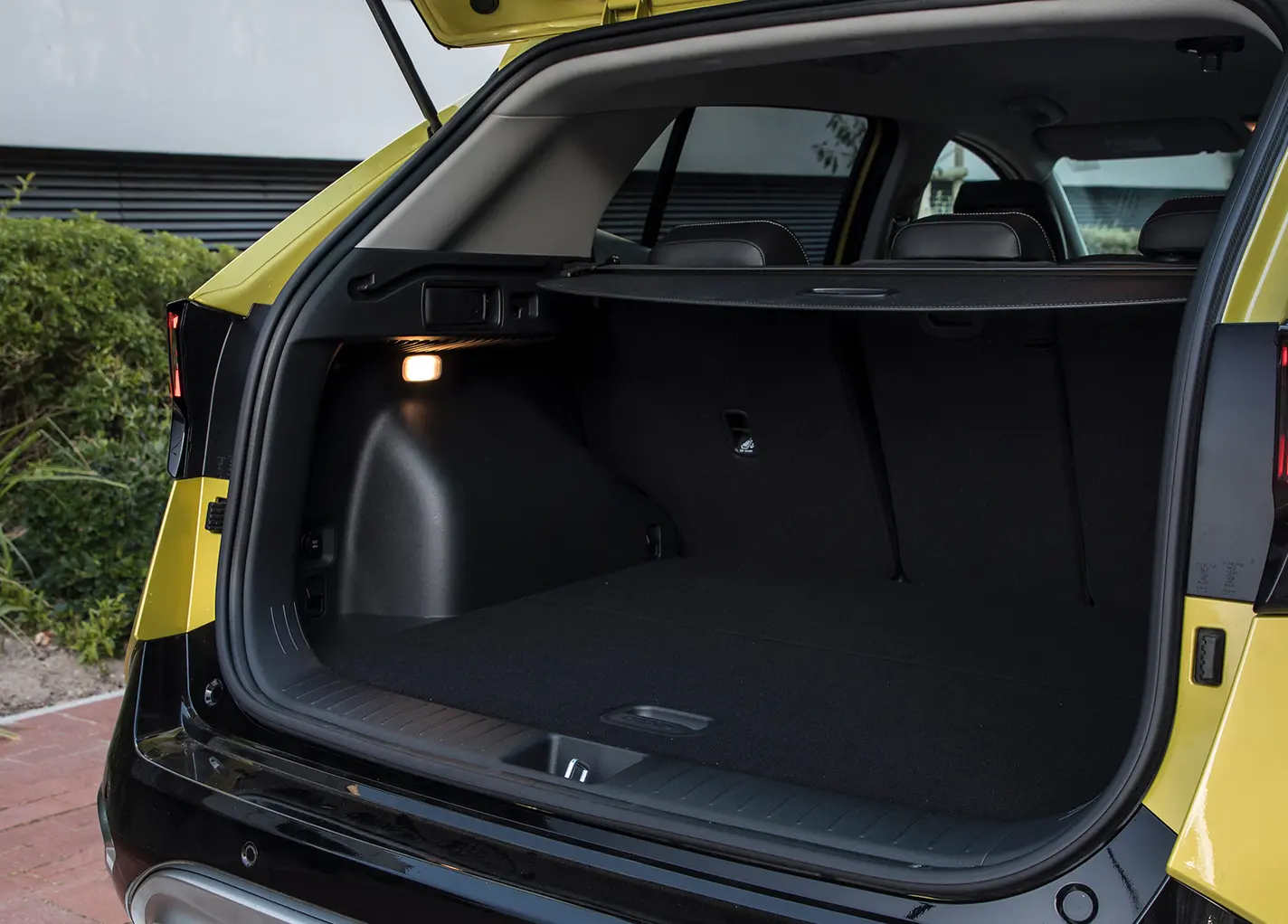

| Cargo Space (VDA, L) | 571 / 1760 | 571 / 1760 | 591 / 1780 | 571 / 1760 | 591 / 1780 | 591 / 1780 |
| Cargo Opening (W x H) (mm) | 1091 / 744 | 1091 / 744 | 1091 / 744 | 1091 / 744 | 1091 / 744 | 1091 / 744 |
| Lift-over Height (mm) | 727 | 727 | 727 | 727 | 727 | 727 |
| Steering Type | Motor-Driven Power Steering (MDPS) | Motor-Driven Power Steering (MDPS) | Motor-Driven Power Steering (MDPS) | Motor-Driven Power Steering (MDPS) | Motor-Driven Power Steering (MDPS) | Motor-Driven Power Steering (MDPS) |
| Steering Operation | Variable Gear Ratio Rack (VGR) | Variable Gear Ratio Rack (VGR) | Variable Gear Ratio Rack (VGR) | Variable Gear Ratio Rack (VGR) | Variable Gear Ratio Rack (VGR) | Variable Gear Ratio Rack (VGR) |
| Minimum Turning Radius (m) | 5.46 | 5.46 | 5.46 | 5.46 | 5.46 | 5.46 |
| Front Brakes | Ventilated Disc (325mm) | Ventilated Disc (325mm) | Ventilated Disc (325mm) | Ventilated Disc (325mm) | Ventilated Disc (325mm) | Ventilated Disc (325mm) |
| Rear Brakes | Solid Disc (300mm) | Solid Disc (300mm) | Solid Disc (300mm) | Solid Disc (300mm) | Solid Disc (300mm) | Solid Disc (300mm) |
| Front Suspension | MacPherson Strut | MacPherson Strut | MacPherson Strut | MacPherson Strut | MacPherson Strut | MacPherson Strut |
| Rear Suspension | Multi-Link | Multi-Link | Multi-Link | Multi-Link | Multi-Link | Multi-Link |
| Specification | LX 1.6D CRDi | EX 1.6D CRDi | GT-Line 1.6 T-GDi | GT-Line Plus 1.6D CRDi | GT-Line Plus 1.6 T-GDi | GT-Line S 1.6 T-GDi |
|---|---|---|---|---|---|---|

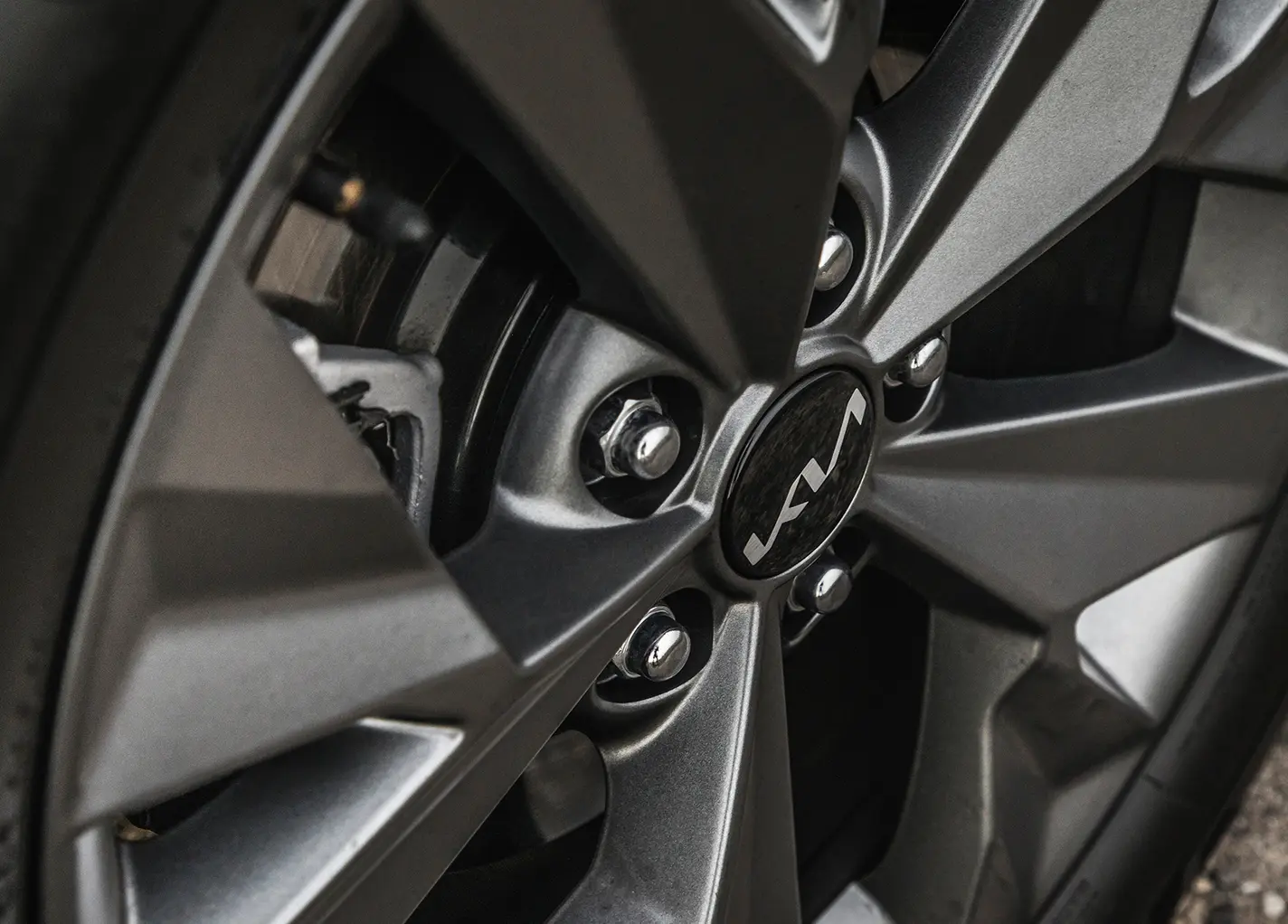

| Wheels | 17" Alloy | 18" Alloy | 18" GT-Line Alloy | 19" GT-Line Alloy | 19" GT-Line Alloy | 19" GT-Line Alloy |
| Tyres | 215/65 R17 103V | 235/55 R18 104V | 235/55 R18 104V | 235/50 R19 103V | 235/50 R19 103V | 235/50 R19 103V |
| Spare Wheel | Full Size Alloy | Full Size Alloy | Full Size Alloy | Full Size Alloy | Full Size Alloy | Full Size Alloy |
| Specification | LX 1.6D CRDi | EX 1.6D CRDi | GT-Line 1.6 T-GDi | GT-Line Plus 1.6D CRDi | GT-Line Plus 1.6 T-GDi | GT-Line S 1.6 T-GDi |
|---|---|---|---|---|---|---|
| Airbags | 6 (Driver, Passenger, Side & Curtain) | 6 (Driver, Passenger, Side & Curtain) | 6 (Driver, Passenger, Side & Curtain) | 6 (Driver, Passenger, Side & Curtain) | 6 (Driver, Passenger, Side & Curtain) | 6 (Driver, Passenger, Side & Curtain) |
| Anti-Lock Braking System (ABS) | • | • | • | • | • | • |
| Electronic Stability Control (ESC) | • | • | • | • | • | • |
| Downhill Brake Control (DBC) | • | • | • | • | • | • |
| Hill-Start Assist Control (HAC) | • | • | • | • | • | • |
| Trailer Stability Assist (TSA) | • | • | • | • | • | • |
| Central Locking with Alarm & Immobiliser | • | • | • | • | • | • |
| Data Dot | • | • | • | • | • | • |
| Electronic Brake-force Distribution (EBD) | • | • | • | • | • | • |
| Electric Parking Brake with Auto Hold (EPB) | • | • | • | • | • | • |
| ISOFIX Child Seat Anchors | • | • | • | • | • | • |
| Child Safety Lock (Manual) | • | • | • | • | • | • |
| Rheostat | • | • | • | • | • | • |
| Smart Entry with Push Button Start | • | • | • | • | • | • |
| Specification | LX 1.6D CRDi | EX 1.6D CRDi | GT-Line 1.6 T-GDi | GT-Line Plus 1.6D CRDi | GT-Line Plus 1.6 T-GDi | GT-Line S 1.6 T-GDi |
|---|---|---|---|---|---|---|
| Start-Stop Technology | • | • | - | • | • | - |
| Front & Rear Shock Absorbers (Advanced Valve) | • | • | • | • | • | • |
| Parking Assist Sensors | Rear Only | Front & Rear | Front & Rear | Front & Rear | Front & Rear | Front & Rear |

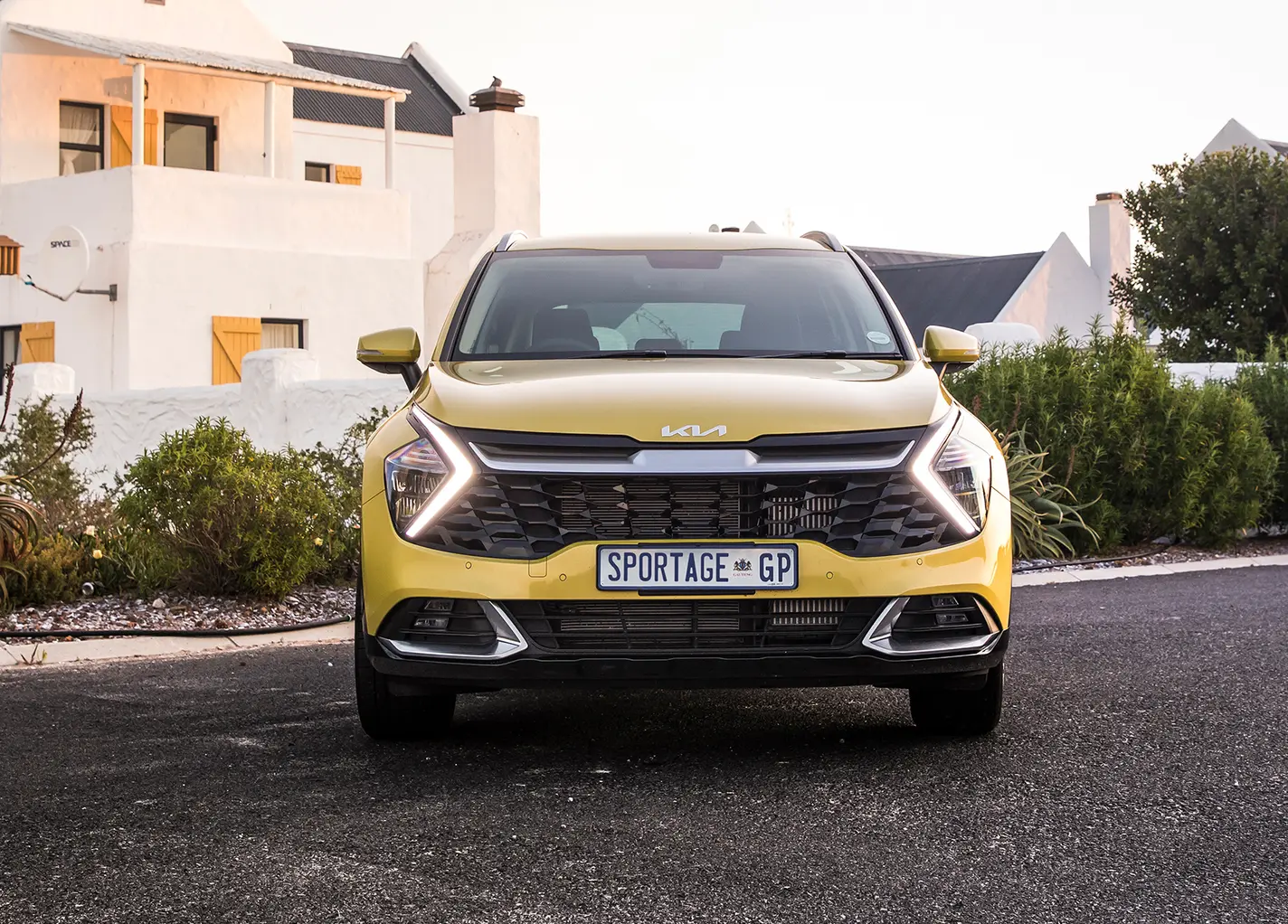

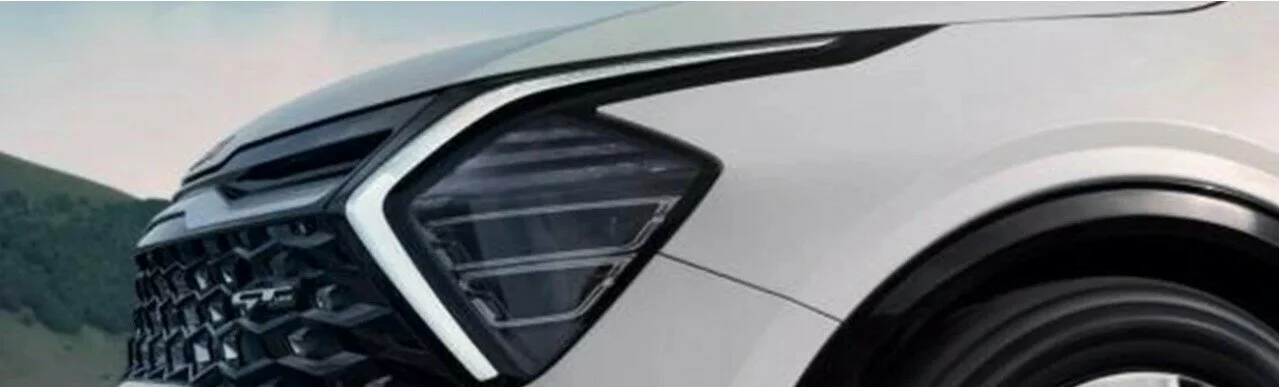

| LED Headlamps & Daytime Running Lights | • | • | • | • | • | • |
| Automatic Light Control | • | • | • | • | • | • |
| LED Rear Combination Lamps | LED + Bulb | • | • | • | • | • |
| LED Front & Rear Fog Lamps | • | • | • | • | • | • |
| Rain Sensing Wipers | • | • | • | • | • | • |
| Electric Folding & Adjustable Mirrors | • | • | • | • | • | • |
| Roof Rack & Mud Guards | • | • | • | • | • | • |
| Silver Paint Door Garnish & Skid Plate | • | • | • | • | • | • |
| Satin Finish Beltline | • | • | • | • | • | • |
| Power Tailgate | - | - | • | • | • | • |
| Deluxe Scuff Plates | - | - | • | • | • | • |
| Panoramic Sunroof | - | - | - | • | • | • |
| Dual LED Lamps with Adaptive Driving Beam | - | - | - | - | - | • |
| Specification | LX 1.6D CRDi | EX 1.6D CRDi | GT-Line 1.6 T-GDi | GT-Line Plus 1.6D CRDi | GT-Line Plus 1.6 T-GDi | GT-Line S 1.6 T-GDi |
|---|---|---|---|---|---|---|

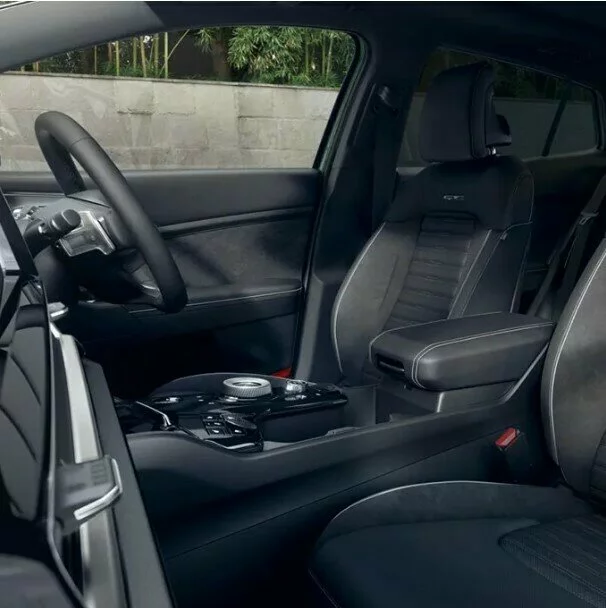

| Seat Material | Cloth | Cloth / Artificial Leather | Artificial Leather / Suede | Artificial Leather / Suede | Artificial Leather / Suede | Artificial Leather / Suede |
| 2-Way Electric Lumbar Support (Driver) | • | • | • | • | • | • |
| 2nd Row Split Folding Seats (40:20:40) | • | • | • | • | • | • |
| Centre Armrest Cup Holders & Seat Back Pockets | • | • | • | • | • | • |
| Artificial Leather Steering Wheel & Gear Knob | • | • | • | • | • | • |
| Illuminated Sunvisors with Vanity Mirrors | • | • | • | • | • | • |
| Automatic Dual-Zone Temperature Control | • | • | • | • | • | • |
| Rear Air Ventilation Ducts & Auto Window Defogger | • | • | • | • | • | • |
| Rear Privacy Glass | - | • | • | • | • | • |
| Remote Folding Rear Seats | - | • | • | • | • | • |
| Electric Front Seats & Driver Memory Seat | - | • | • | • | • | • |
| Front & Rear Heated Seats | - | • | • | • | • | • |
| Heated Steering Wheel | - | • | • | • | • | • |
| Paddle Gear Shift Lever | - | - | • | • | • | • |
| Alloy Pedals | - | - | • | • | • | • |
| E-Shift by Wire (Rotary Dial) | - | - | - | - | - | • |
| Passenger Walk-In Device | - | - | - | - | - | • |
| Ventilated Front Seats | - | - | - | - | - | • |
| Ambient Mood Lamp | - | - | - | - | - | • |
| Specification | LX 1.6D CRDi | EX 1.6D CRDi | GT-Line 1.6 T-GDi | GT-Line Plus 1.6D CRDi | GT-Line Plus 1.6 T-GDi | GT-Line S 1.6 T-GDi |
|---|---|---|---|---|---|---|

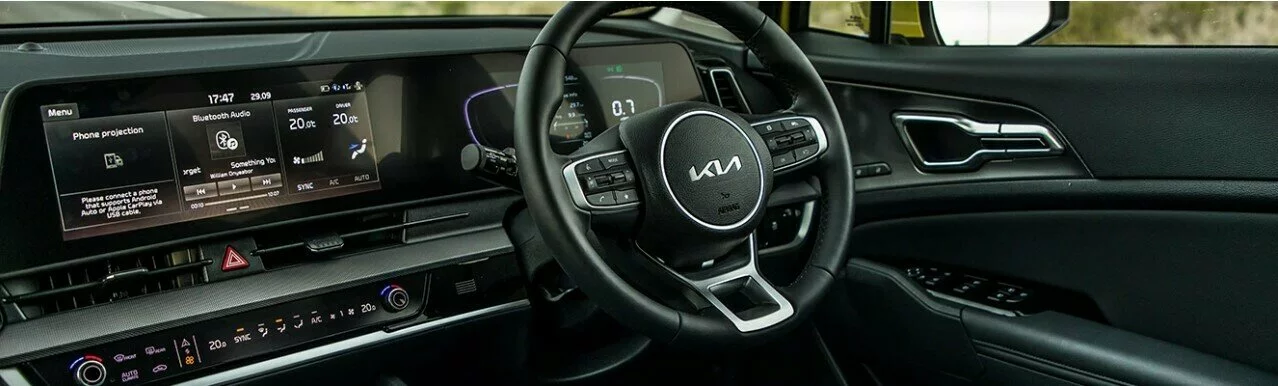

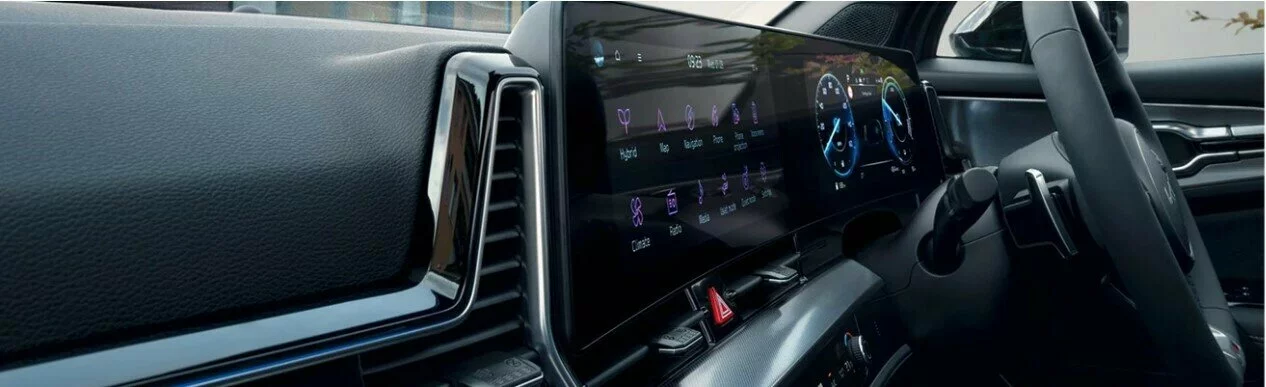

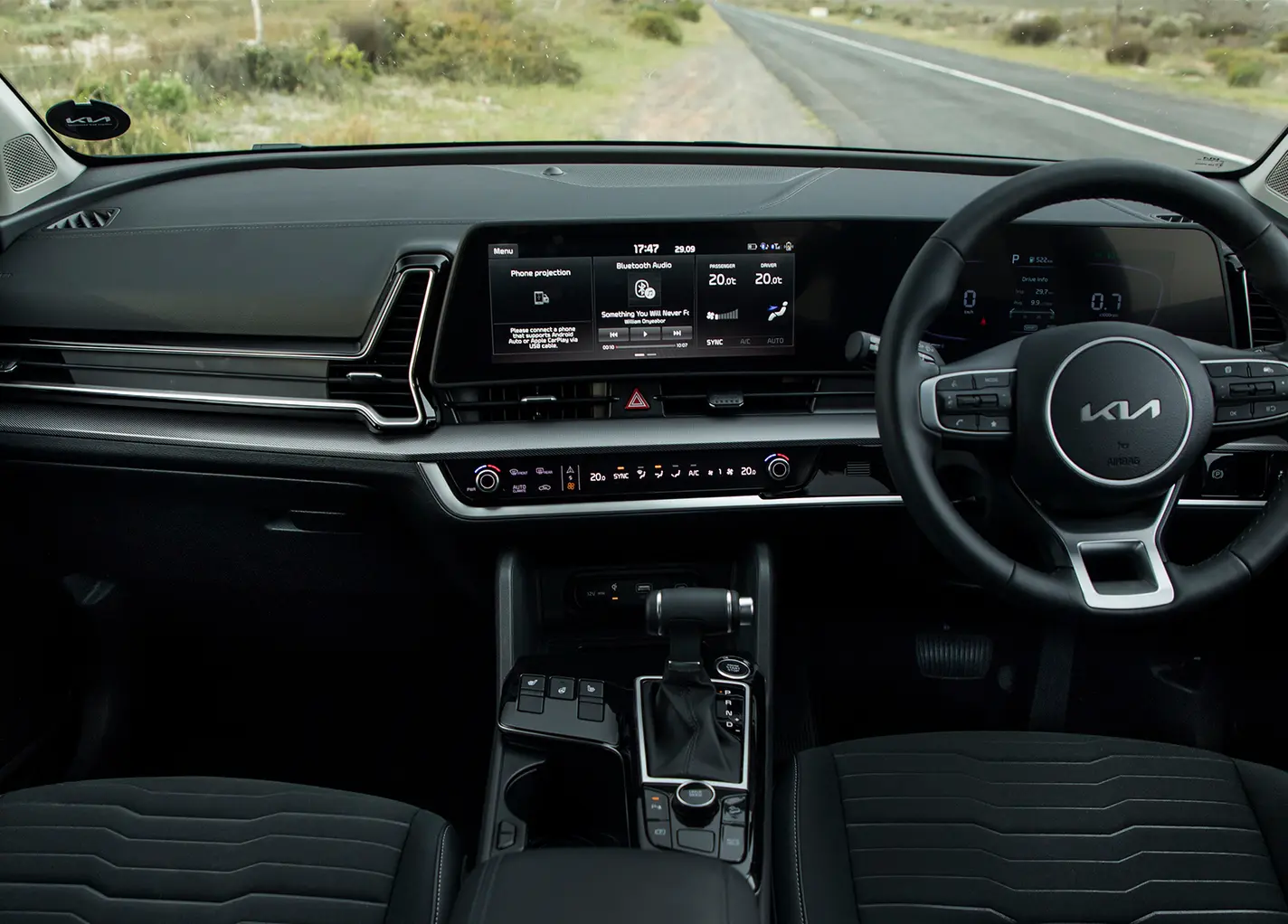

| Infotainment Display | 12.3" AV Touchscreen Infotainment System | 12.3" AV Touchscreen Infotainment System | 12.3" AV Touchscreen Infotainment System | 12.3" AV Touchscreen Infotainment System | 12.3" AV Touchscreen Infotainment System | 12.3" AV Touchscreen Infotainment System |
| Instrument Cluster Display | 4.2" Supervision TFT LCD | 4.2" Supervision TFT LCD | Digital 12" TFT Integrated Display | Digital 12" TFT Integrated Display | Digital 12" TFT Integrated Display | Digital 12" TFT Integrated Display |
| Apple CarPlay & Android Auto | • | • | • | • | • | • |
| Bluetooth Connectivity with Voice Recognition | • | • | • | • | • | • |
| Steering Wheel Remote Controls | • | • | • | • | • | • |
| USB Ports | Front USB + 2 Rear Fast Charging USB Ports | Front USB + 2 Rear Fast Charging USB Ports | Front USB + 2 Rear Fast Charging USB Ports | Front USB + 2 Rear Fast Charging USB Ports | Front USB + 2 Rear Fast Charging USB Ports | Front USB + 2 Rear Fast Charging USB Ports |
| Electrochromatic Rearview Mirror | • | • | • | • | • | • |
| Wireless Smartphone Charger | - | • | • | • | • | • |
| Speakers | 6 Speakers | 6 Speakers | 6 Speakers | 6 Speakers | 6 Speakers | 6 Speakers |
| Specification | LX 1.6D CRDi | EX 1.6D CRDi | GT-Line 1.6 T-GDi | GT-Line Plus 1.6D CRDi | GT-Line Plus 1.6 T-GDi | GT-Line S 1.6 T-GDi |
|---|---|---|---|---|---|---|
| Forward Collision-Avoidance Assist (Car/Ped/Cyc) | • | • | • | • | • | • |
| Lane Keeping Assist (LKA) | • | • | • | • | • | • |
| Lane Following Assist (LFA) | • | • | • | • | • | • |
| Blind-Spot Collision Warning | • | • | • | • | • | • |
| Rear View Camera with Guidelines | • | • | • | • | • | • |
| Cruise Control | Conventional | Conventional | Conventional | Conventional | Conventional | Smart Cruise Control (SCC) |
| Forward Collision-Avoidance Assist with Junction Turning | - | - | - | - | - | • |

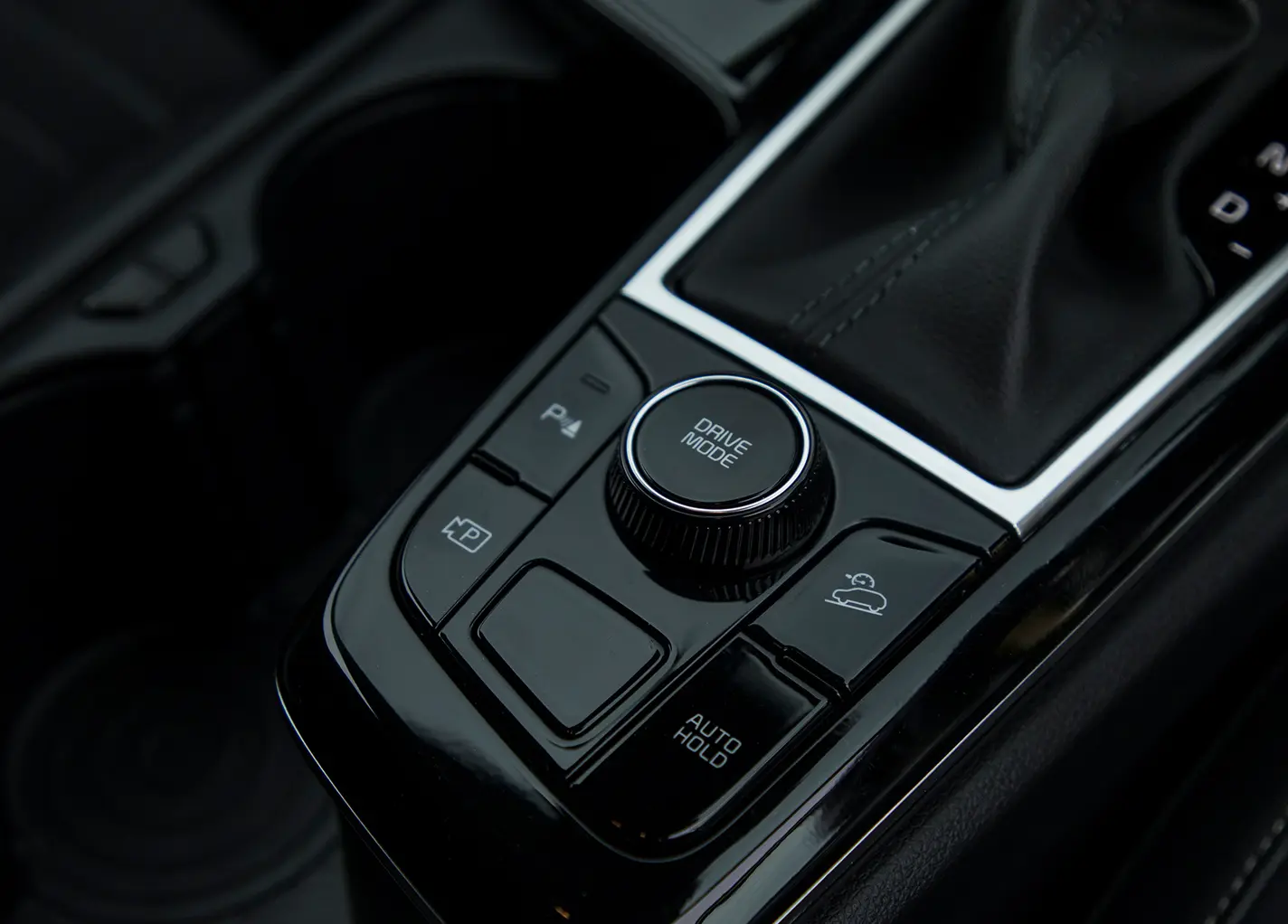

| Drive Mode Select | • | • | • | • | • | • |
| Specification | LX 1.6D CRDi | EX 1.6D CRDi | GT-Line 1.6 T-GDi | GT-Line Plus 1.6D CRDi | GT-Line Plus 1.6 T-GDi | GT-Line S 1.6 T-GDi |
|---|---|---|---|---|---|---|
| Warranty | 5 Years / Unlimited Kilometre | 5 Years / Unlimited Kilometre | 5 Years / Unlimited Kilometre | 5 Years / Unlimited Kilometre | 5 Years / Unlimited Kilometre | 5 Years / Unlimited Kilometre |
| Service Plan | 6 Years / 90 000 km | 6 Years / 90 000 km | 6 Years / 90 000 km | 6 Years / 90 000 km | 6 Years / 90 000 km | 6 Years / 90 000 km |
| Roadside Assistance | 5 Years / Unlimited Kilometre | 5 Years / Unlimited Kilometre | 5 Years / Unlimited Kilometre | 5 Years / Unlimited Kilometre | 5 Years / Unlimited Kilometre | 5 Years / Unlimited Kilometre |
