| Specification | EX+ | SX | SXL |
|---|---|---|---|
| Drive Type | 2WD | AWD | AWD |
| Transmission | 8-Speed Dual-Clutch Transmission (8DCT) | 8-Speed Dual-Clutch Transmission (8DCT) | 8-Speed Dual-Clutch Transmission (8DCT) |
| Overall Dimensions (L x W x H) (mm) | 4810 x 1900 x 1700 | 4810 x 1900 x 1700 | 4810 x 1900 x 1700 |
| Wheelbase (mm) | 2815 | 2815 | 2815 |
| Overhang Front / Rear (mm) | 925 / 1075 | 925 / 1075 | 925 / 1075 |
| Minimum Ground Clearance (mm) | 176 | 176 | 176 |
| Wheel Tread Front / Rear (mm) | 1637 / 1647 | 1637 / 1647 | 1637 / 1647 |
| Specification | EX+ | SX | SXL |
|---|---|---|---|

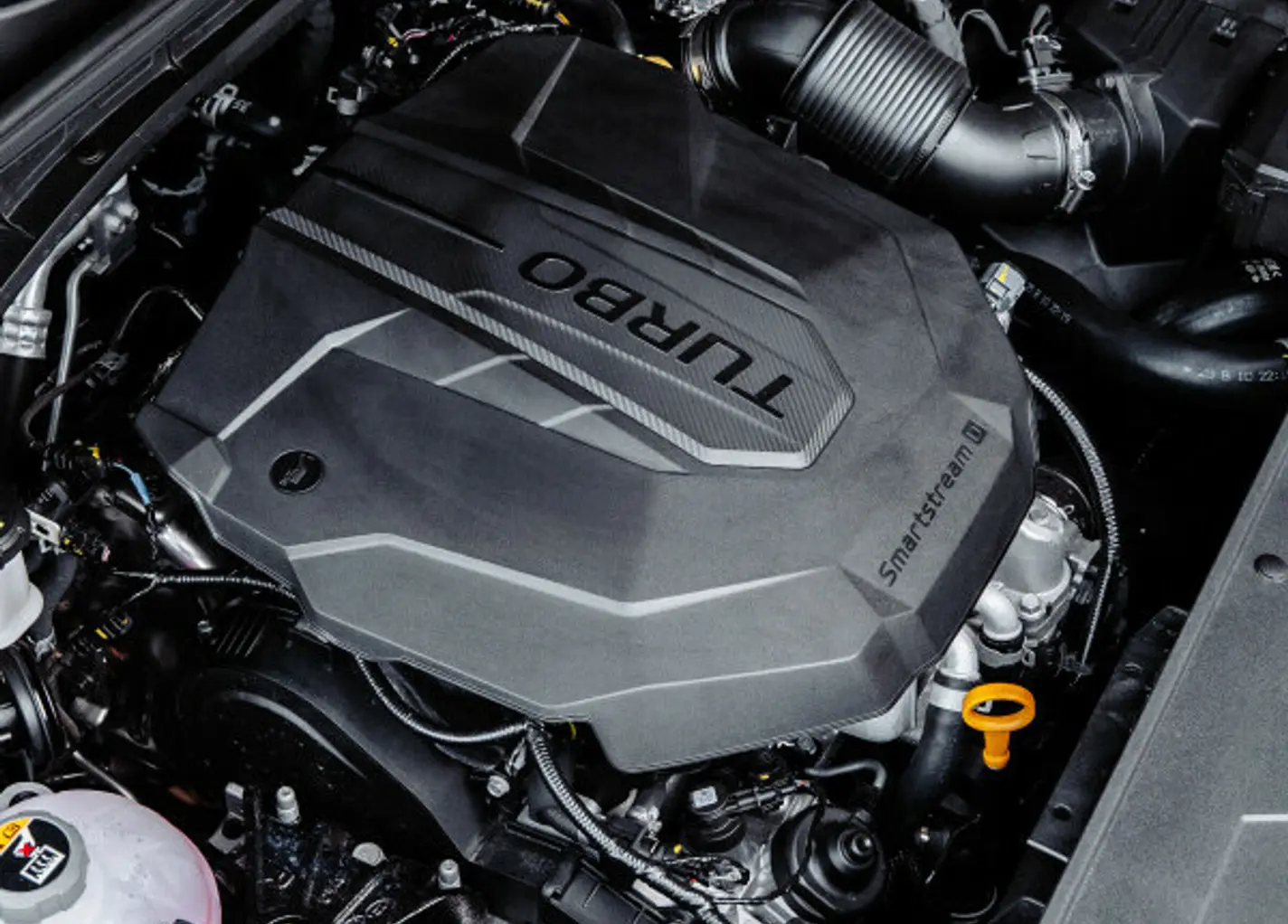

| Engine Type | In-line 4 Cylinder, 16-Valve HLA | In-line 4 Cylinder, 16-Valve HLA | In-line 4 Cylinder, 16-Valve HLA |
| Displacement (cc) | 2151 | 2151 | 2151 |
| Valve System | 16-Valve HLA | 16-Valve HLA | 16-Valve HLA |
| Maximum Power | 148 kW @ 3,800 rpm | 148 kW @ 3,800 rpm | 148 kW @ 3,800 rpm |
| Maximum Torque | 440 Nm @ 1,750–2,750 rpm | 440 Nm @ 1,750–2,750 rpm | 440 Nm @ 1,750–2,750 rpm |
| Compression Ratio | 16.0 : 1 | 16.0 : 1 | 16.0 : 1 |
| Bore x Stroke (mm) | 83.0 x 99.4 | 83.0 x 99.4 | 83.0 x 99.4 |
| Fuel Injection System | Common Rail Direct Injection (CRDi) | Common Rail Direct Injection (CRDi) | Common Rail Direct Injection (CRDi) |
| Fuel Type | Diesel (10ppm - 50ppm) | Diesel (10ppm - 50ppm) | Diesel (10ppm - 50ppm) |
| Acceleration (0-100 km/h) | 9.5 sec | 9.7 sec | 9.7 sec |
| Maximum Speed (km/h) | 201 | 201 | 201 |
| CO2 Emissions Combined (g/km) | 158 (2WD) | 158 (AWD) | 158 (AWD) |
| Specification | EX+ | SX | SXL |
|---|---|---|---|
| Curb Weight (kg) | 1831 | 1894 | 1894 |
| Gross Vehicle Mass (GVM) (kg) | 2600 | 2600 | 2600 |
| Towing Mass Braked / Unbraked (kg) | 2500 / 750 | 2500 / 750 | 2500 / 750 |
| Fuel Tank Capacity (L) | 80 | 80 | 80 |
| Cargo Space (VDA 1st/2nd/3rd row, L) | 1966 / 608–813 / 179 | 1966 / 608–813 / 179 | 1966 / 608–813 / 179 |
| Steering Type | Motor Driven Power Steering (Column Type) | Motor Driven Power Steering (Column Type) | Motor Driven Power Steering (Column Type) |
| Minimum Turning Radius (m) | 5.78 | 5.78 | 5.78 |
| Front Brakes | Ventilated Disc (345mm) | Ventilated Disc (345mm) | Ventilated Disc (345mm) |
| Rear Brakes | Disc (325mm) | Disc (325mm) | Disc (325mm) |
| Front Suspension | MacPherson Strut | MacPherson Strut | MacPherson Strut |
| Rear Suspension | Multi-Link | Multi-Link | Multi-Link |
| Specification | EX+ | SX | SXL |
|---|---|---|---|

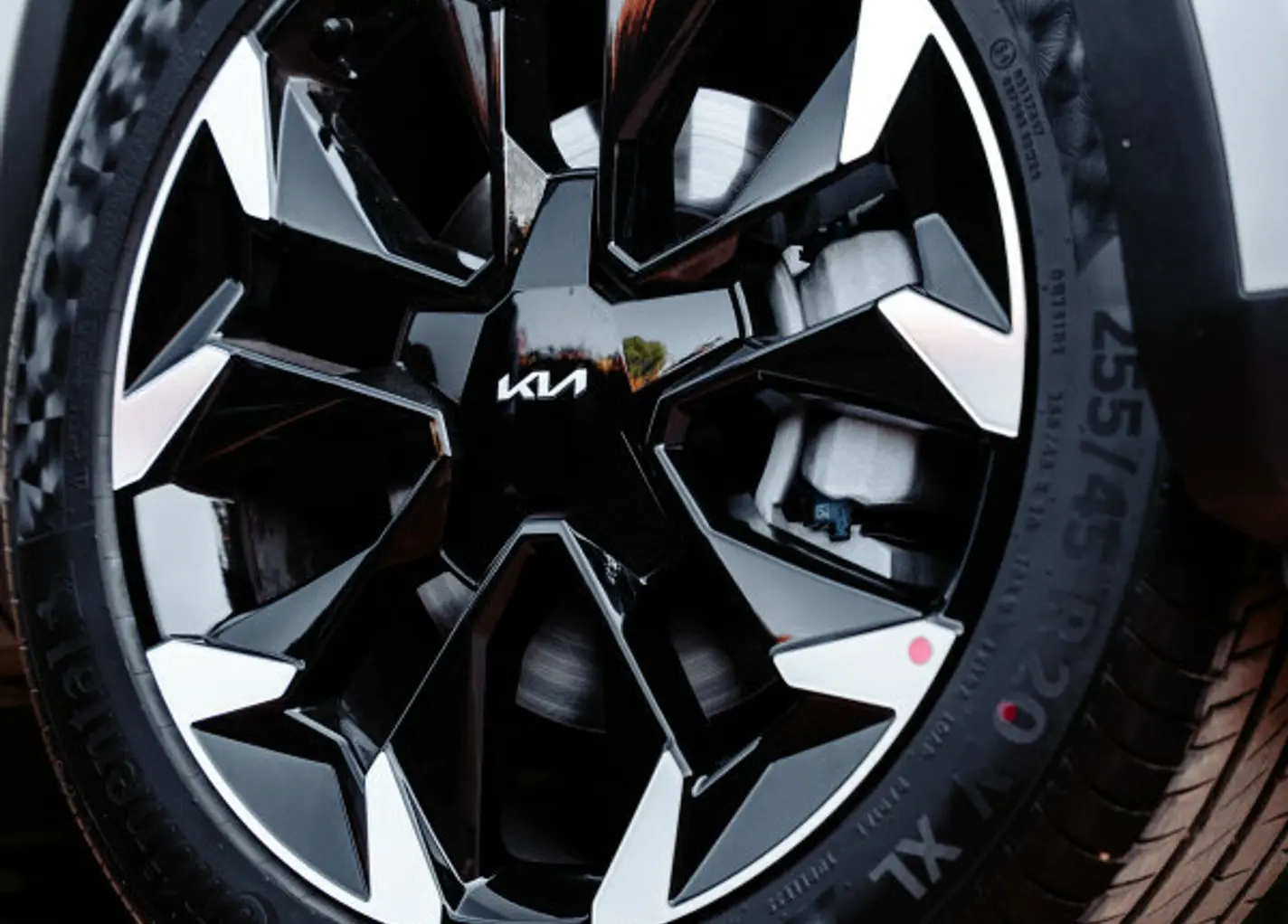

| Wheels | 20" Alloy | 20" Alloy | 20" Alloy |
| Tyres | 255/45 R20 | 255/45 R20 | 255/45 R20 |
| Spare Wheel | Temporary Steel | Temporary Steel | Temporary Steel |
| Specification | EX+ | SX | SXL |
|---|---|---|---|
| Airbags | Driver & Passenger, Front Thorax & Pelvis, Rear Thorax, Curtain | Driver & Passenger, Front Thorax & Pelvis, Rear Thorax, Curtain | Driver & Passenger, Front Thorax & Pelvis, Rear Thorax, Curtain |
| Anti-Lock Braking System (ABS) | • | • | • |
| Electronic Stability Control (ESC) | • | • | • |
| Downhill Brake Control (DBC) | • | • | • |
| Hill Start Assist Control (HAC) | • | • | • |
| Trailer Stability Assist (TSA) | • | • | • |
| Electronic Brake-Force Distribution (EBD) | • | • | • |
| Electric Parking Brake with Auto Hold (EPB) | • | • | • |
| ISOFIX Child Seat Anchors (Rear & 3rd Row) | • | • | • |
| Power Child Lock (Auto) | • | • | • |
| Data Dot | • | • | • |
| Central Locking with Alarm & Immobiliser | • | • | • |
| Smart Entry with Push Button Start | • | • | • |
| Remote Vehicle Start | • | • | • |
| Specification | EX+ | SX | SXL |
|---|---|---|---|
| Auto Light Control + Escort & Welcome Home Function | • | • | • |

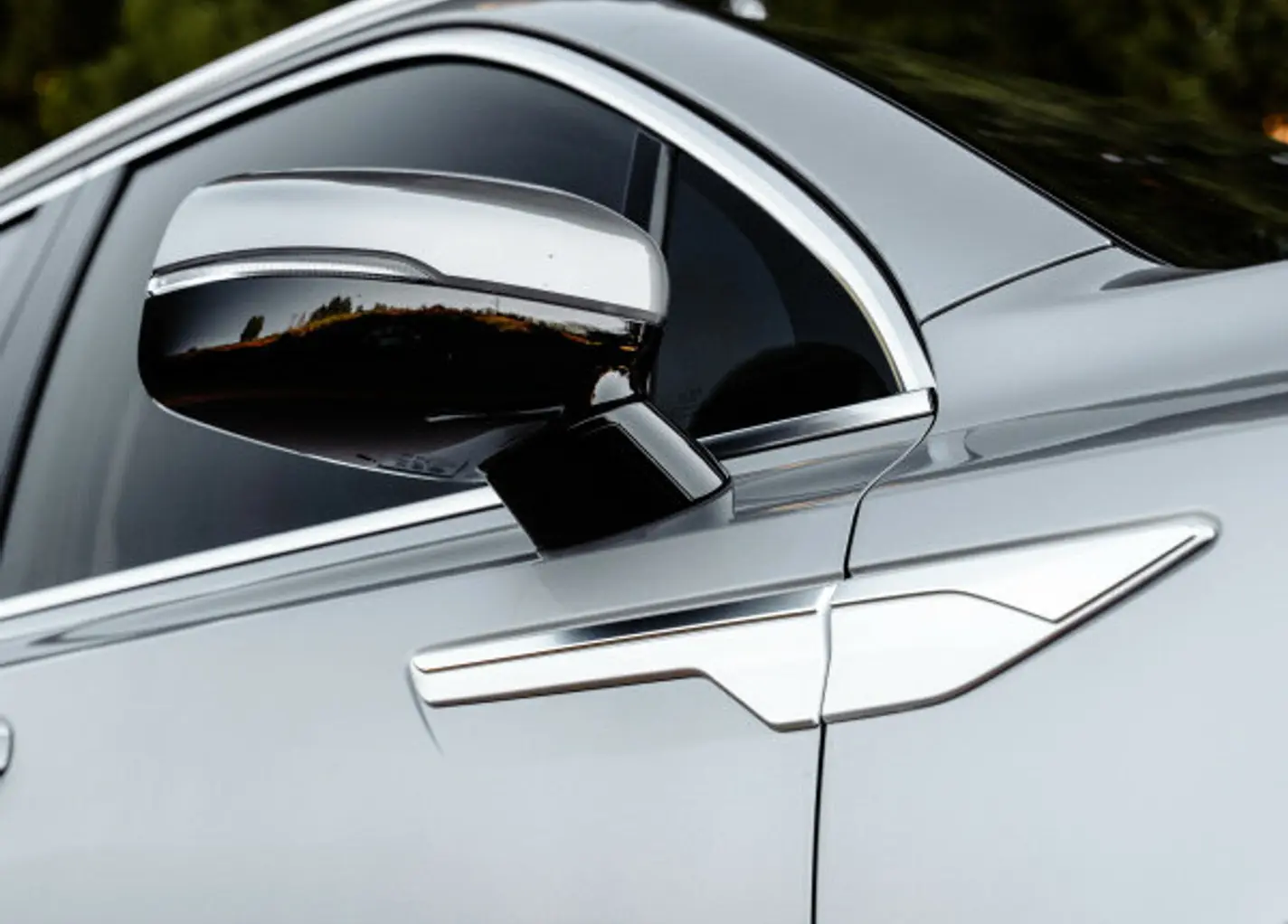

| Auto-Folding Mirrors & Side Mirror Indicator | • | • | • |
| Electric Heated Side Mirrors | • | • | • |

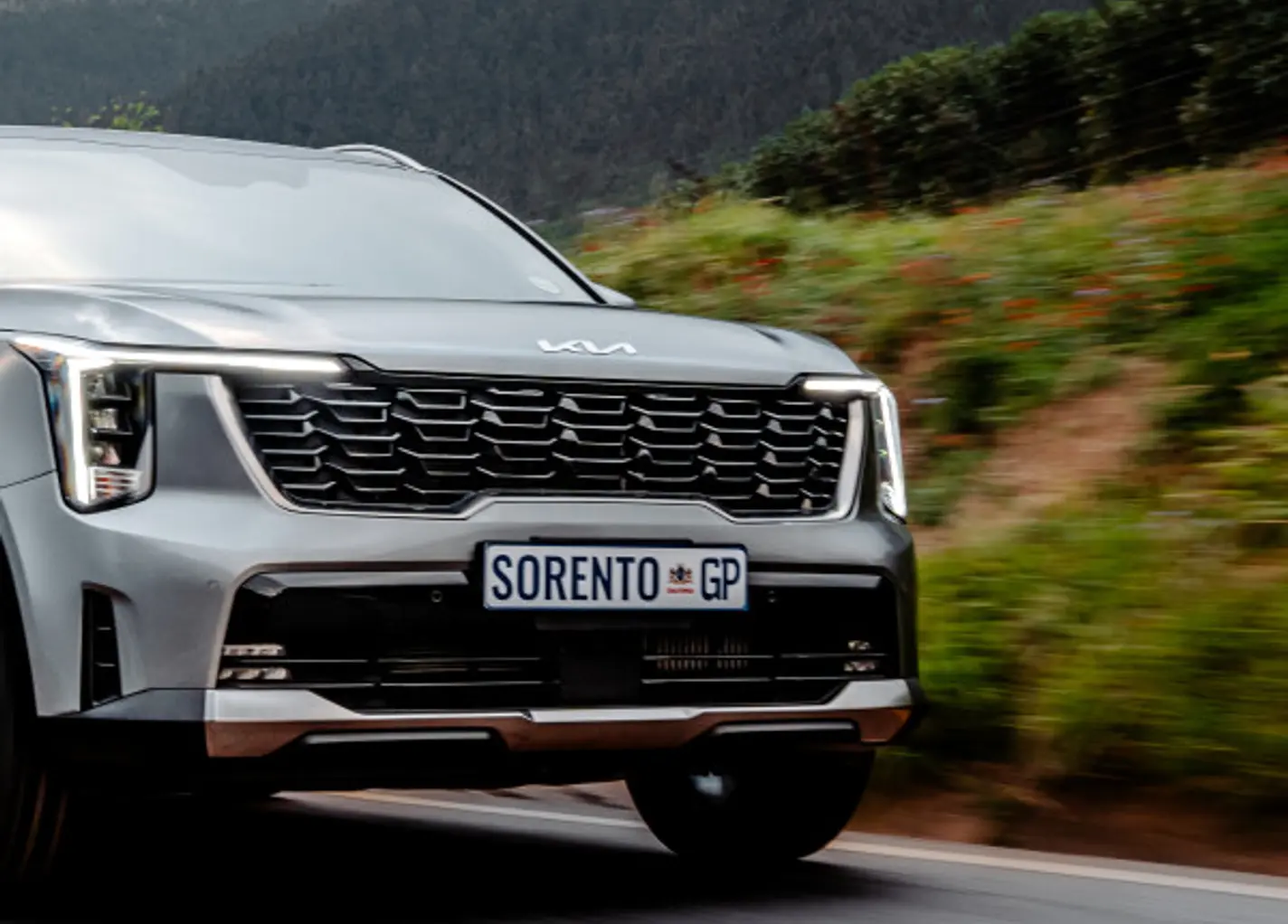

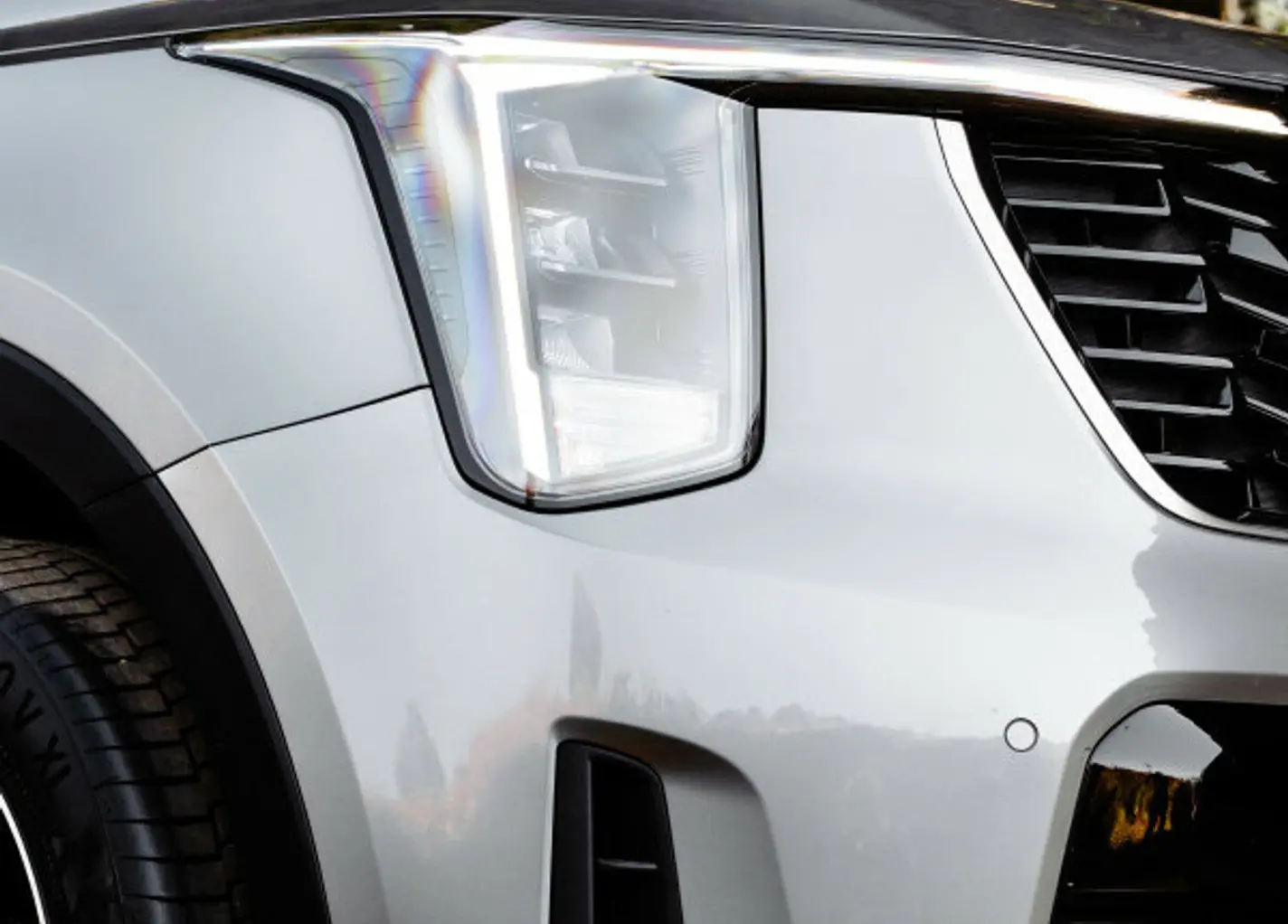

| LED Headlamps (Multi MFR) | • | • | • |
| LED Daytime Running Lamps | • | • | • |
| LED Front Fog Lights | • | • | • |

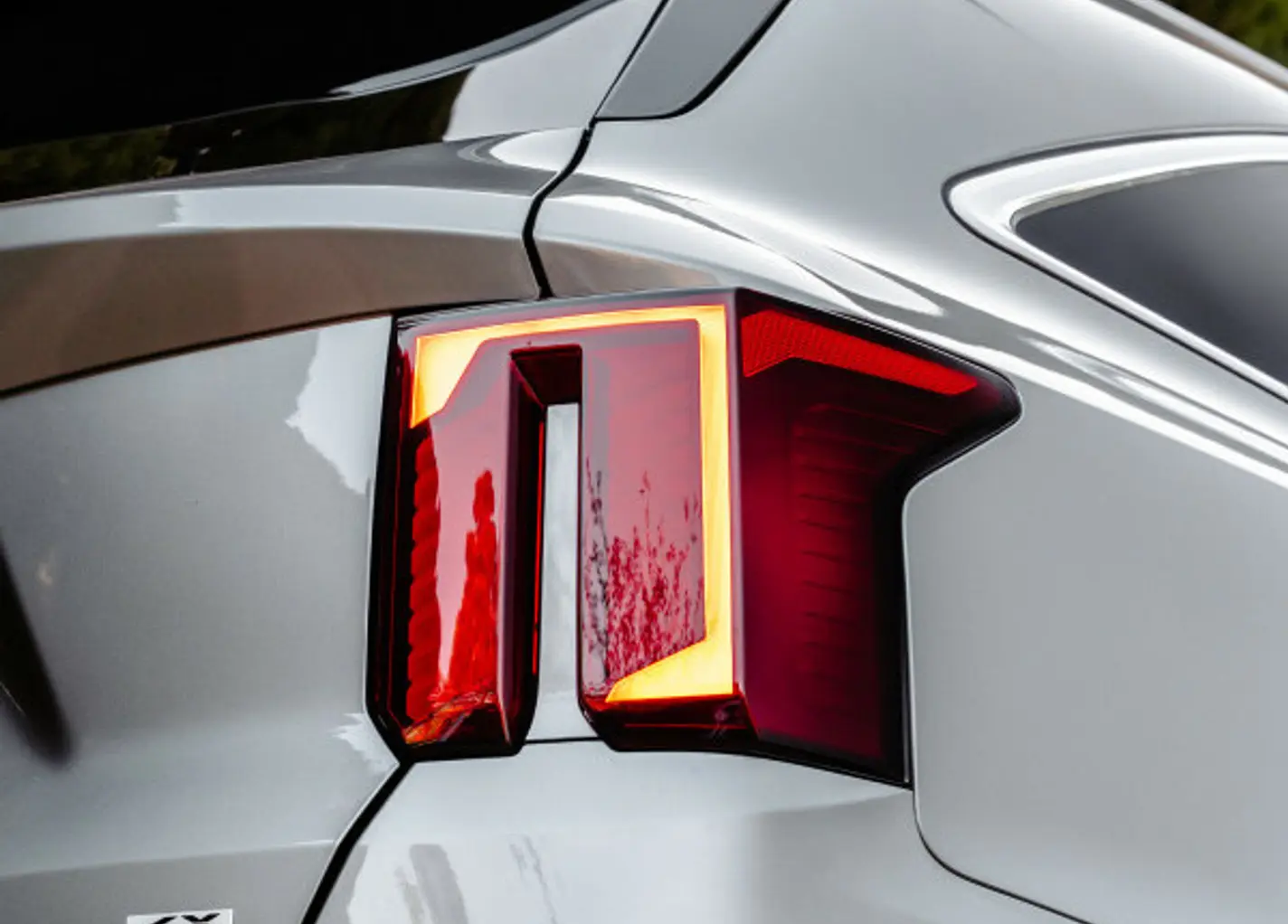

| LED Rear Combination Lamps | - | • | • |
| Rain Sensing Wipers | - | • | • |
| Outside Door Handles Body Colour | • | • | • |
| Roof Rack | • | • | • |
| Mud Guards | • | • | • |
| Panoramic Sunroof | • | • | • |
| Smart Power Tailgate (Height Adjustable) | - | • | • |
| Privacy Rear Door Glass | • | • | • |
| Specification | EX+ | SX | SXL |
|---|---|---|---|

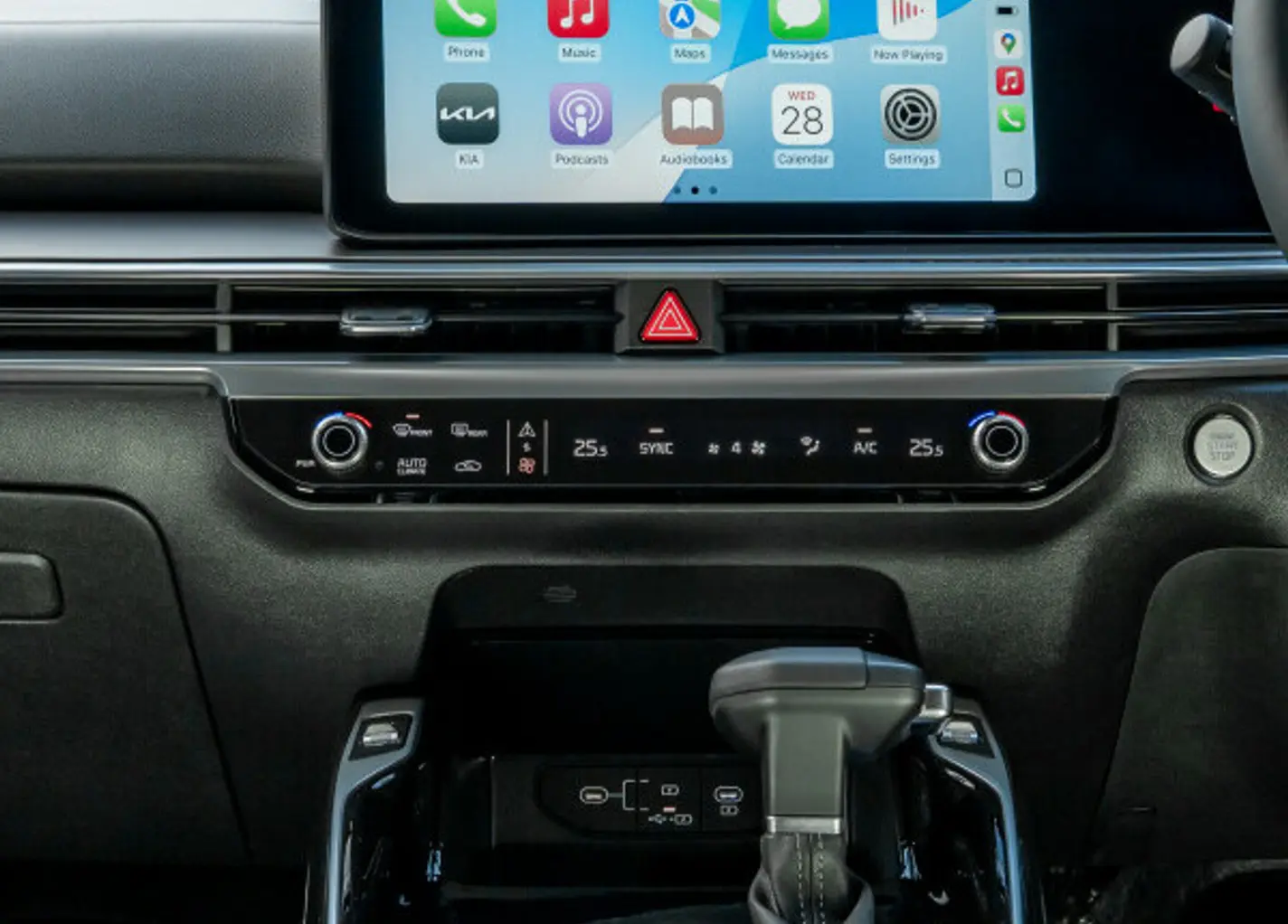

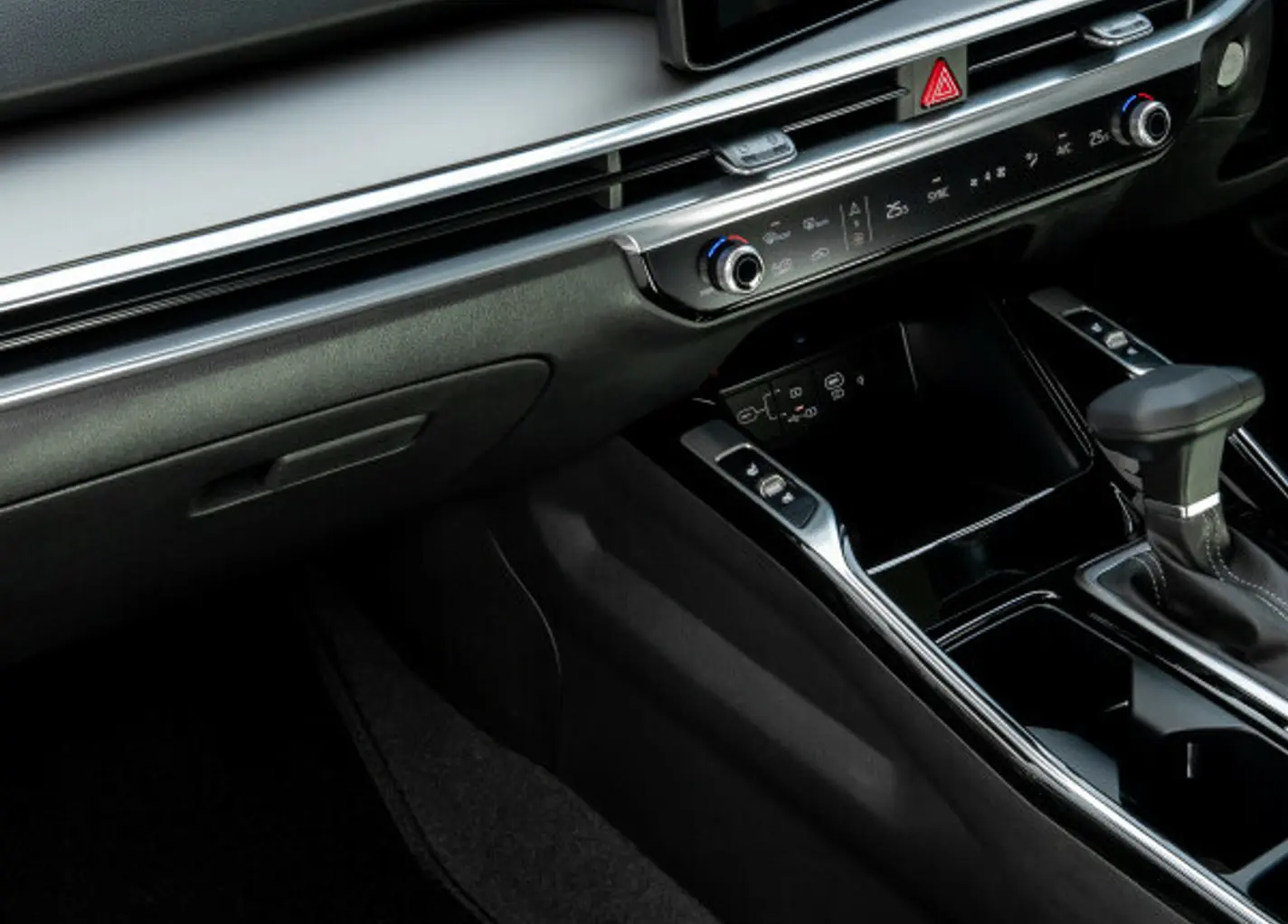

| Automatic Dual-Zone Air-Conditioner | • | • | • |
| 2nd & 3rd Row Rear Air-Conditioner Vents | • | • | • |
| Leather Seats | • | • | • |
| Leather Steering Wheel | • | • | • |
| Telescopic / Tilt Steering Adjustment | • | • | • |
| Heated Steering Wheel | - | • | • |
| Power Front Seats | - | • | • |
| Driver Memory Power Seat | - | • | • |
| Electric Lumbar Support (Driver 2-Way) | - | • | • |
| Driver 4-Way Electric Lumbar Support W/ Cushion Extension | - | • | • |
| Front Heated Seats | - | • | • |
| Ventilated Front Seats | - | • | • |

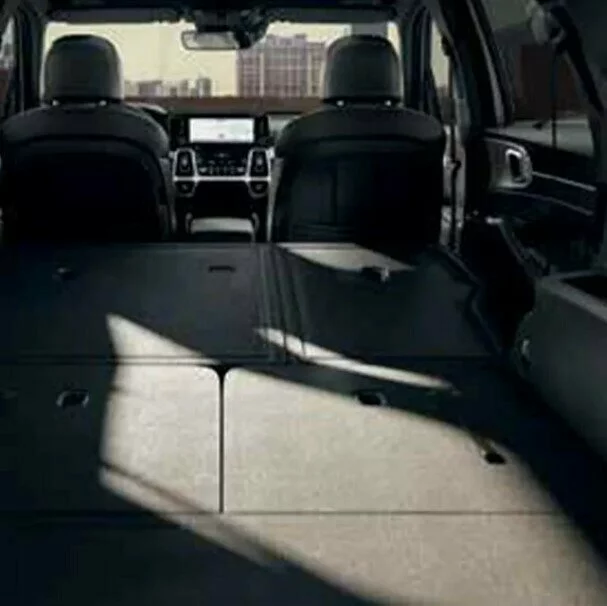

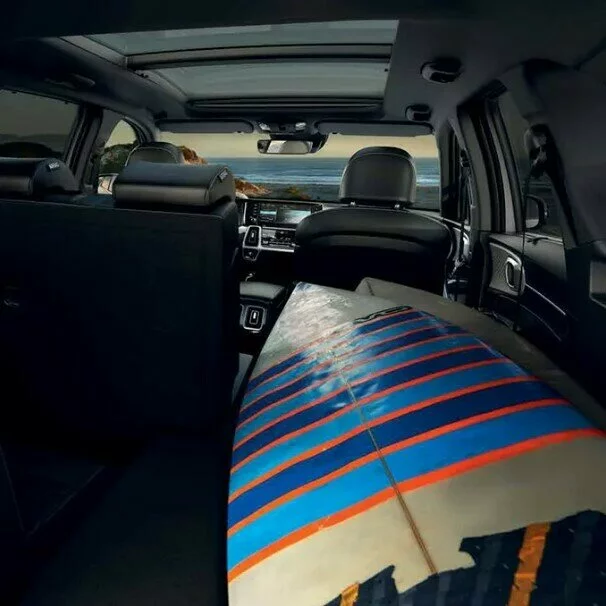

| 60:40 Split 2nd Row Seat Folding | • | • | • |

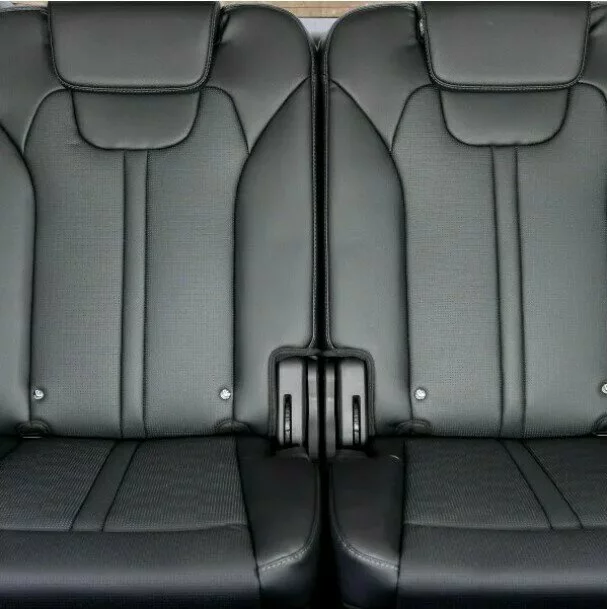

| 50:50 Split 3rd Row Seat Folding | • | • | • |
| Remote Seat Folding 2nd Row (Button) | • | • | • |
| 2nd Row Armrest with Cup Holders | • | • | • |
| 3rd Row Armrest with Cup Holders | • | • | • |
| Centre Console Armrest W/ Storage Box | • | • | • |
| Rear Sun Shade Blinds | - | • | • |
| Mood Lamp | - | - | • |
| Specification | EX+ | SX | SXL |
|---|---|---|---|

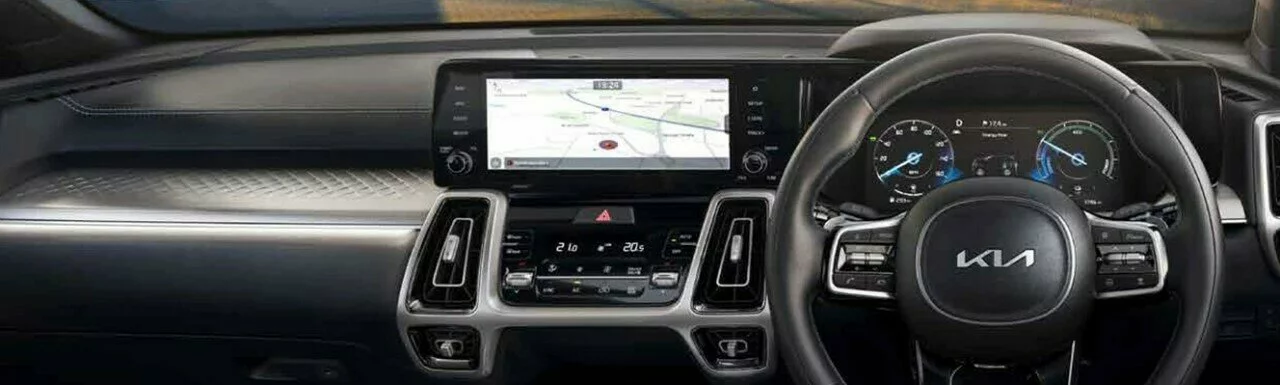

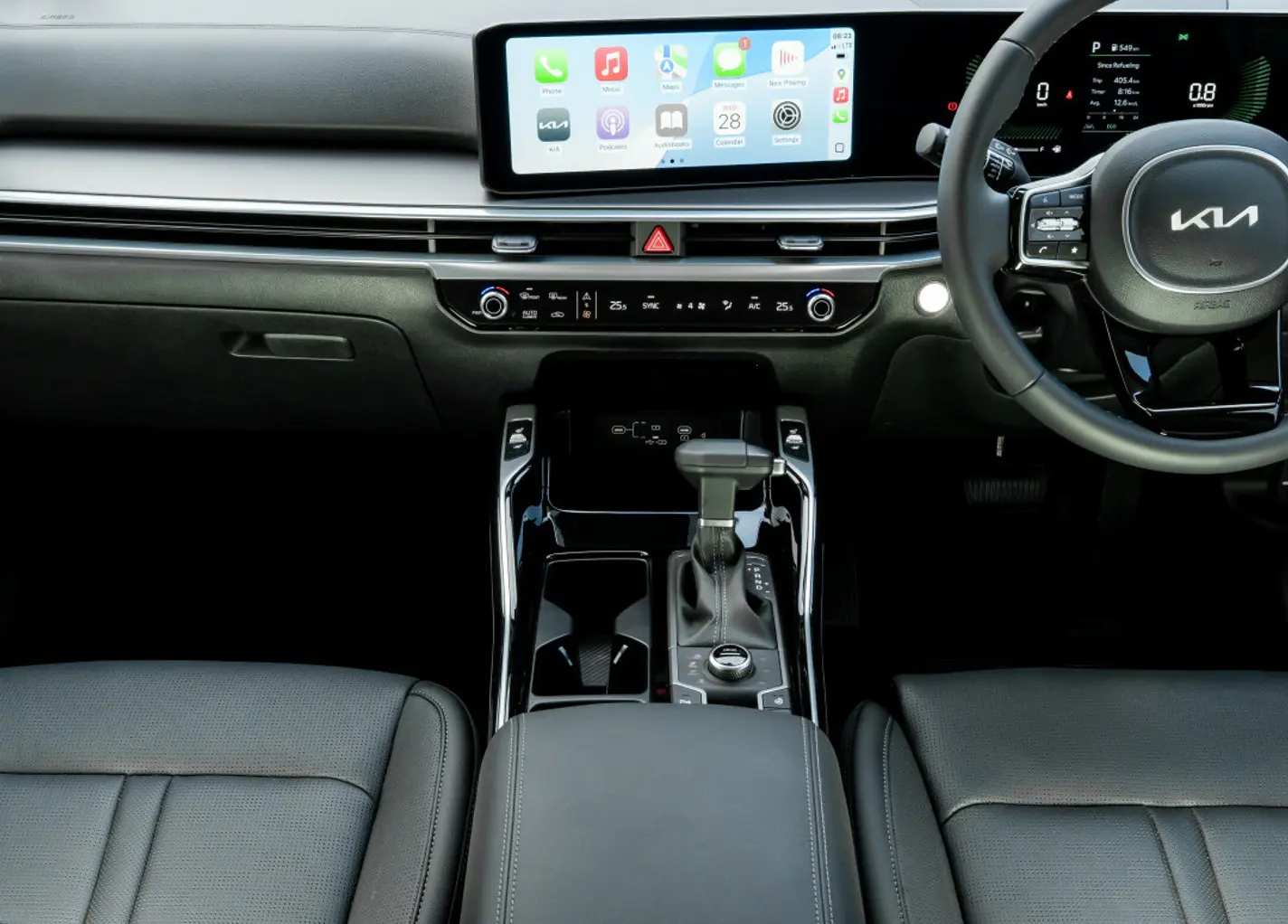

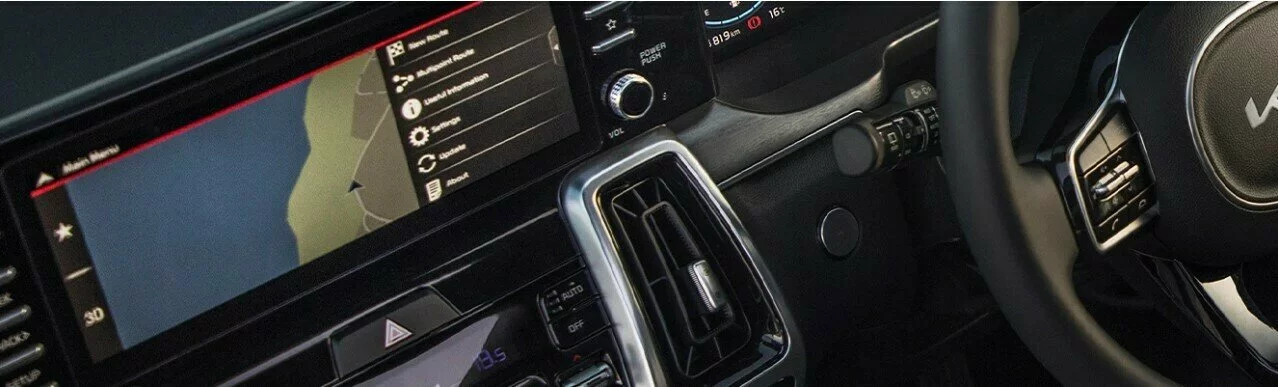

| Infotainment Display | 12.3" Infotainment System with USB | 12.3" Infotainment System with USB | 12.3" Infotainment System with USB |
| Instrument Cluster Display | 4.2" Supervision TFT LCD | 4.2" Supervision TFT LCD | 12.3" Supervision TFT LCD Cluster |
| Wireless Apple CarPlay & Android Auto | • | • | • |
| Bluetooth W/ Voice Recognition & Audio Remote | • | • | • |

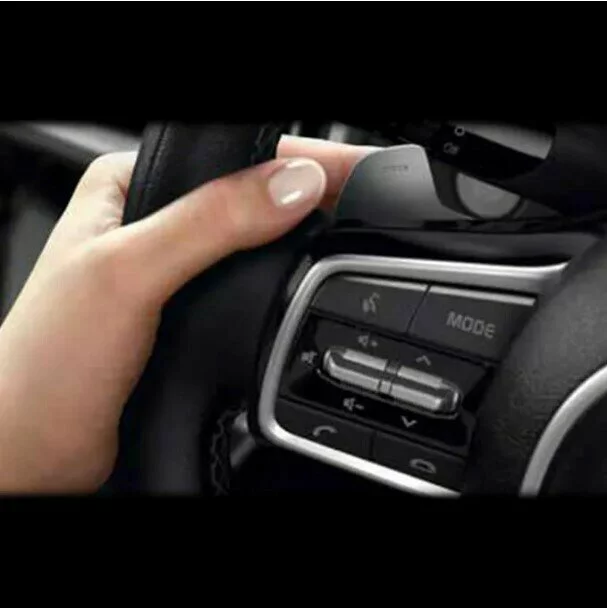

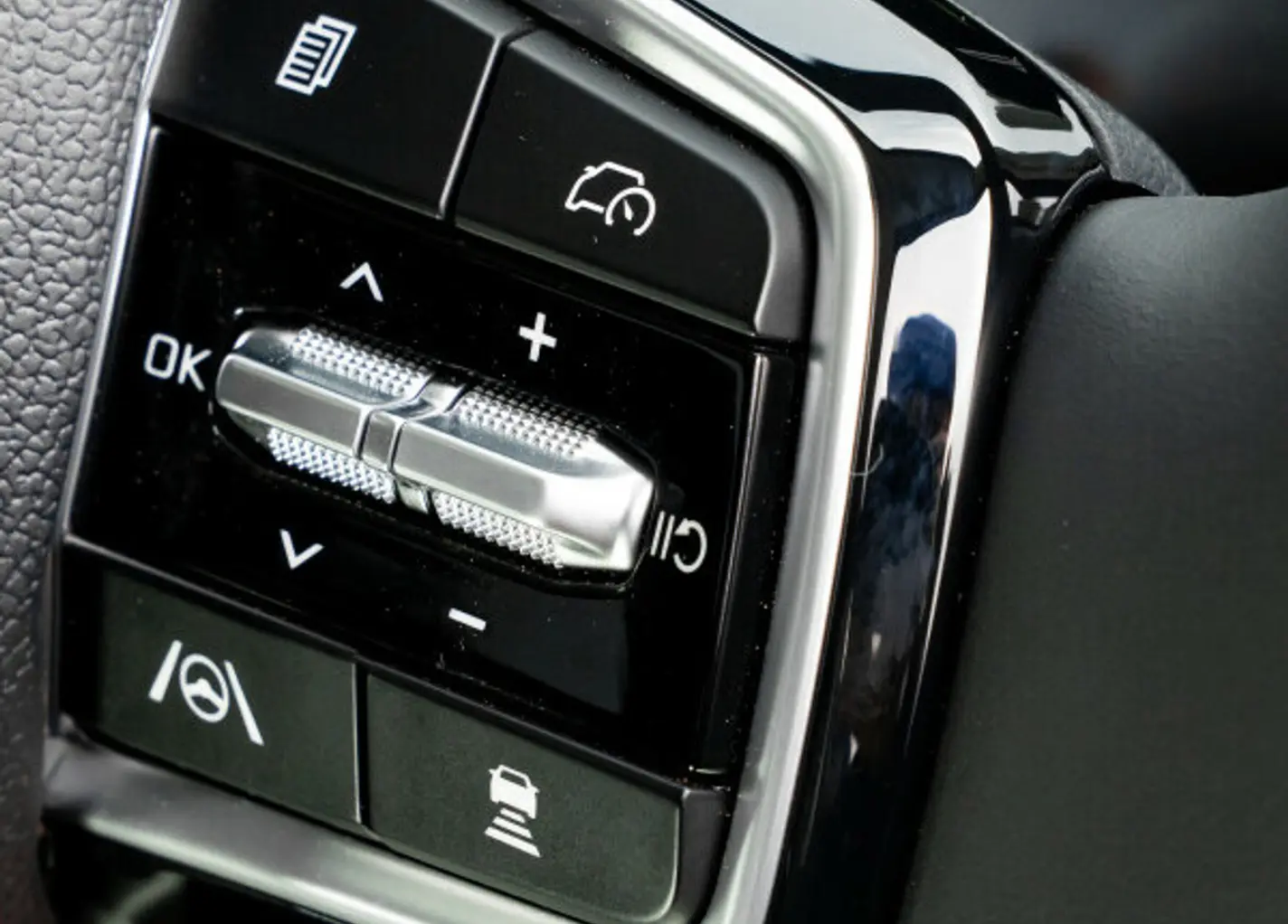

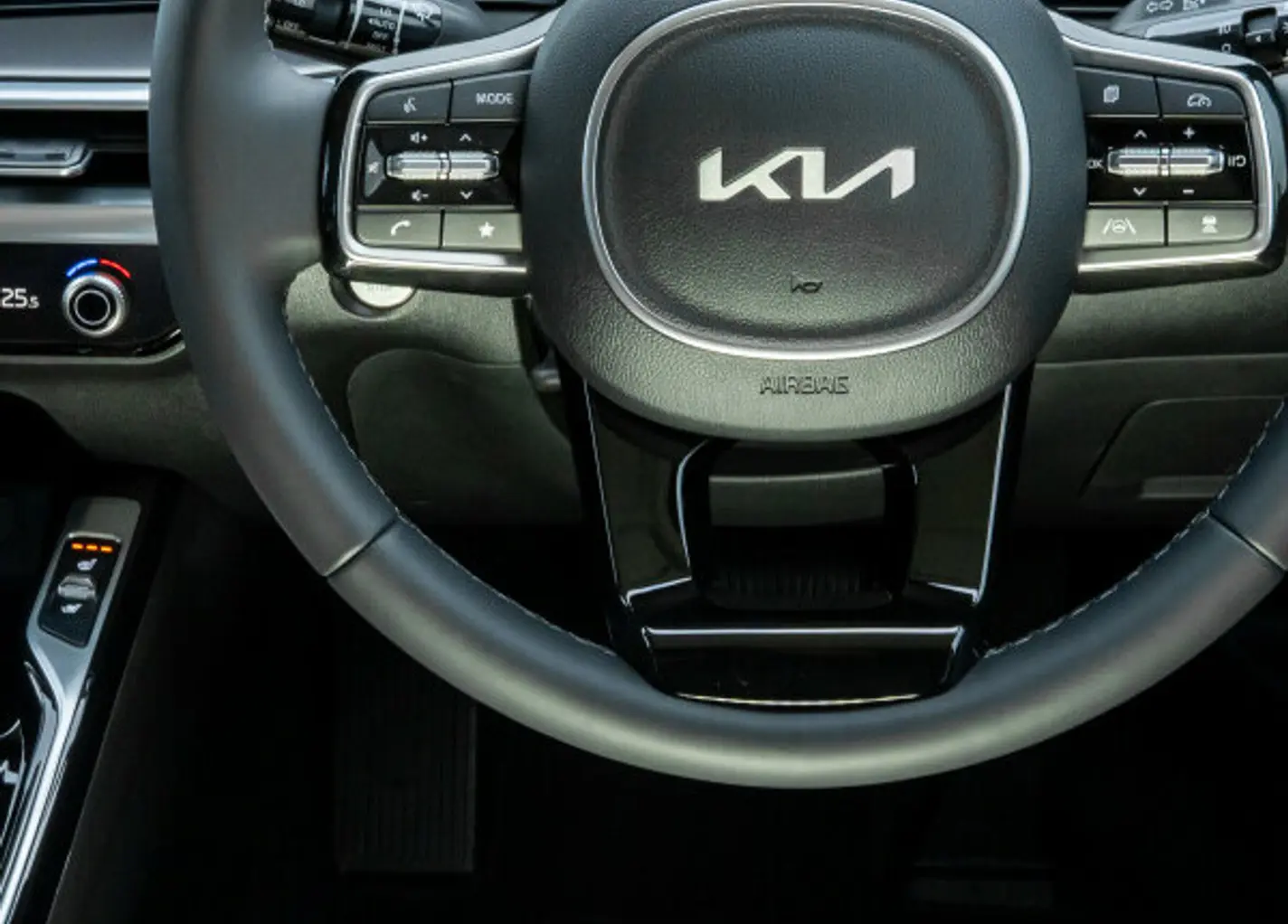

| Steering Wheel Remote Controls | • | • | • |
| 12V Power Sockets | 2 | 2 | 1 |

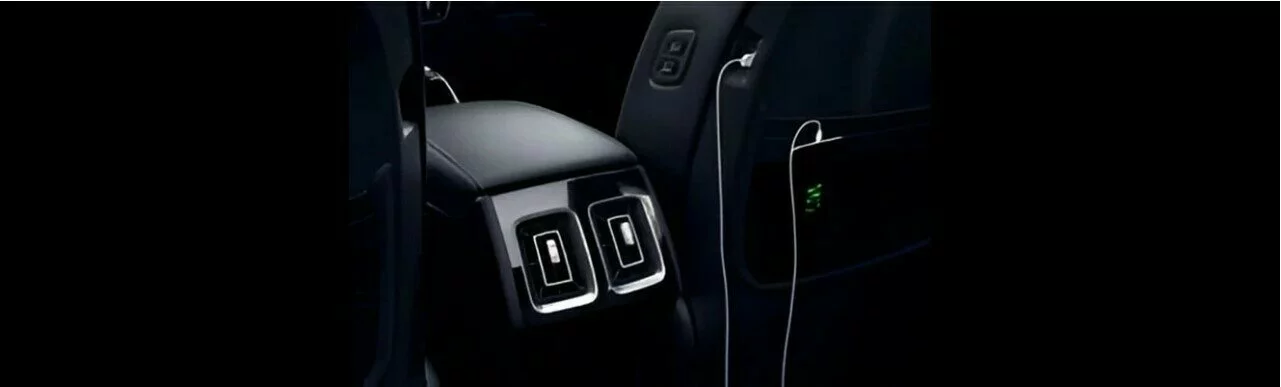

| Premium Seat Panels W/ USB Charging Ports | - | • | • |

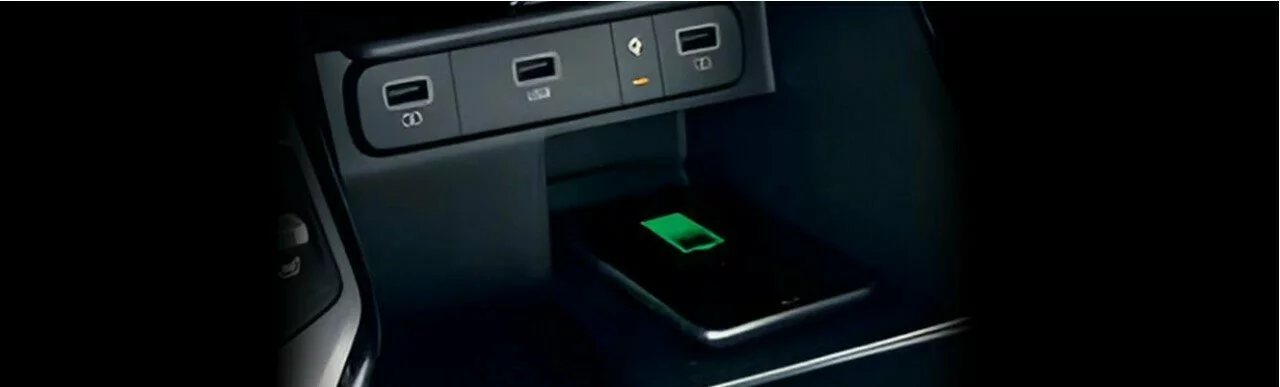

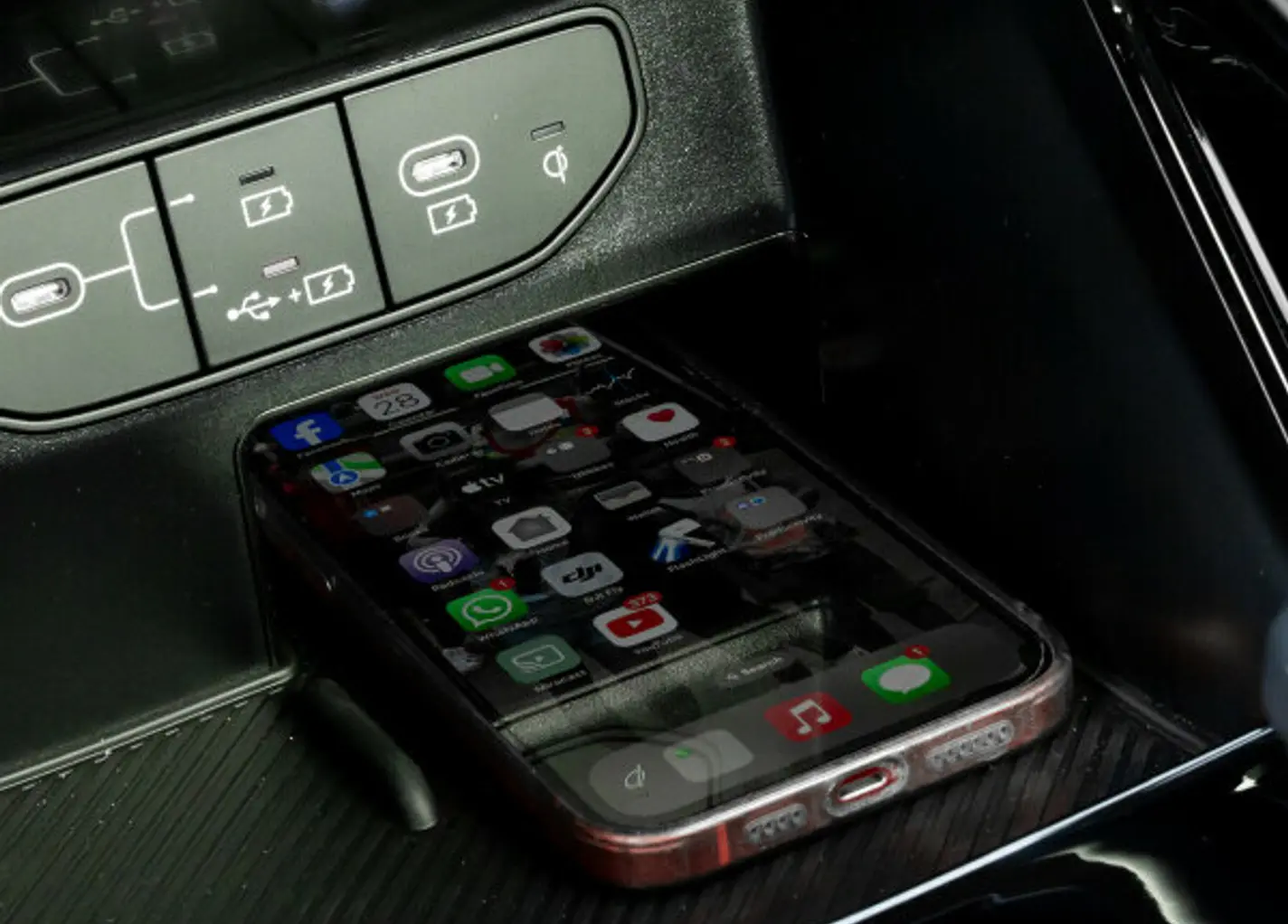

| Wireless Smartphone Charger | • | • | • |

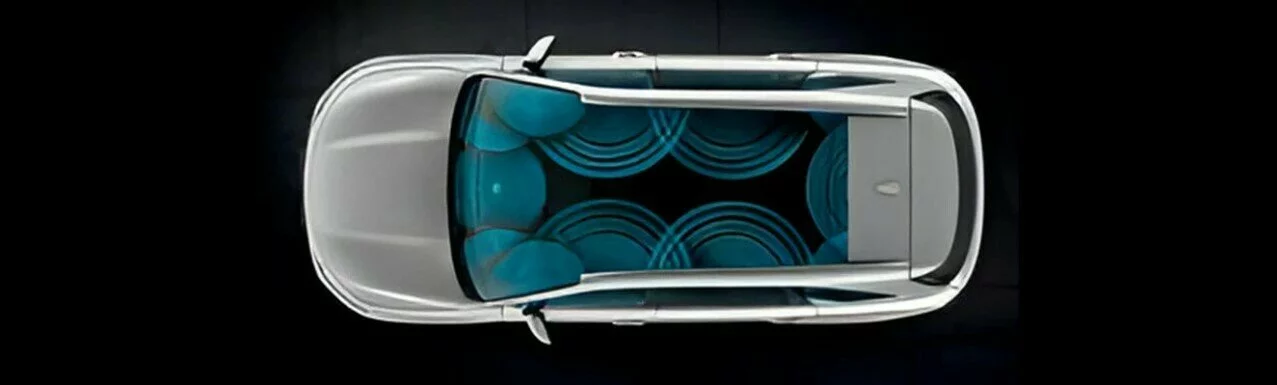

| Speakers | 6 Speakers | 6 Speakers | 12 Speakers (Bose) |
| Bose Premium Surround Sound System | - | - | • |
| Head-Up Display (Height Adjustable) | - | - | • |
| Electrochromatic Inside Rear View Mirror | - | • | • |
| Specification | EX+ | SX | SXL |
|---|---|---|---|

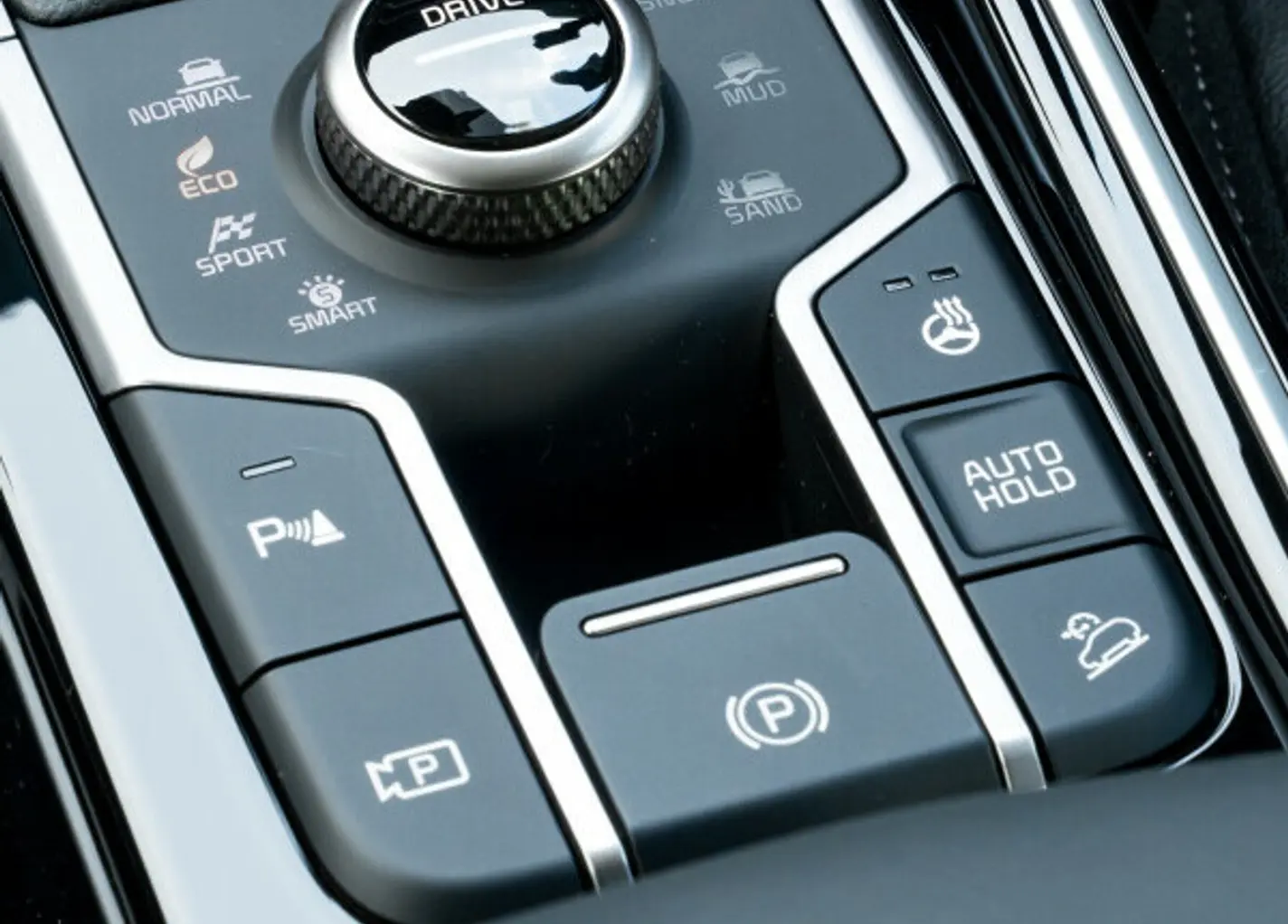

| Drive Mode Select | • | • | • |

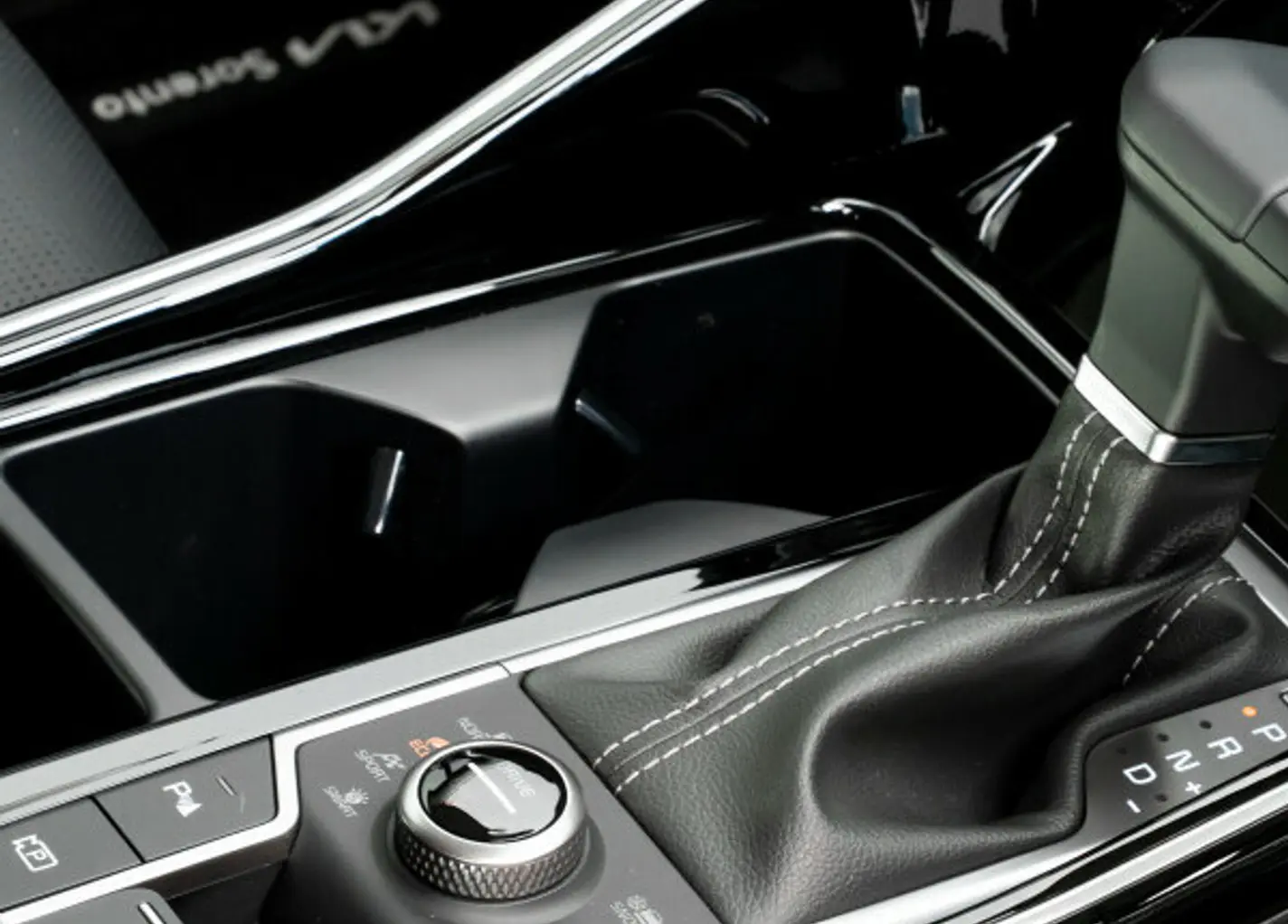

| Electronic Shift By-Wire (Rotary Dial) | • | • | • |
| Cruise Control | Conventional | Smart Cruise Control (SCC) | Smart Cruise Control (SCC) |

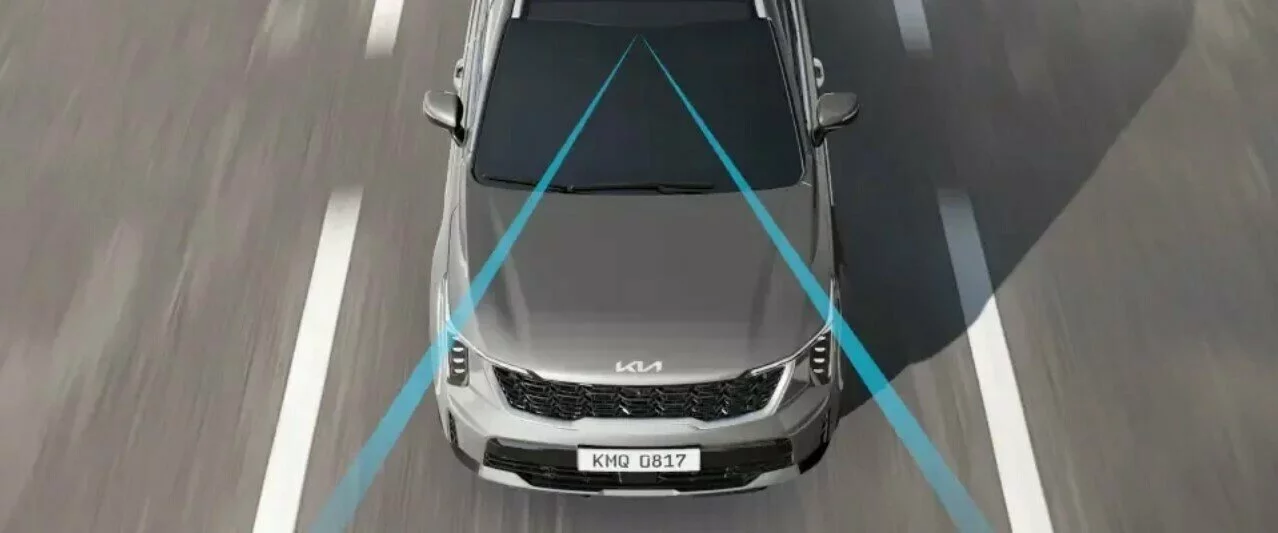

| Forward Collision-Avoidance Assist (FCA) | - | • | • |

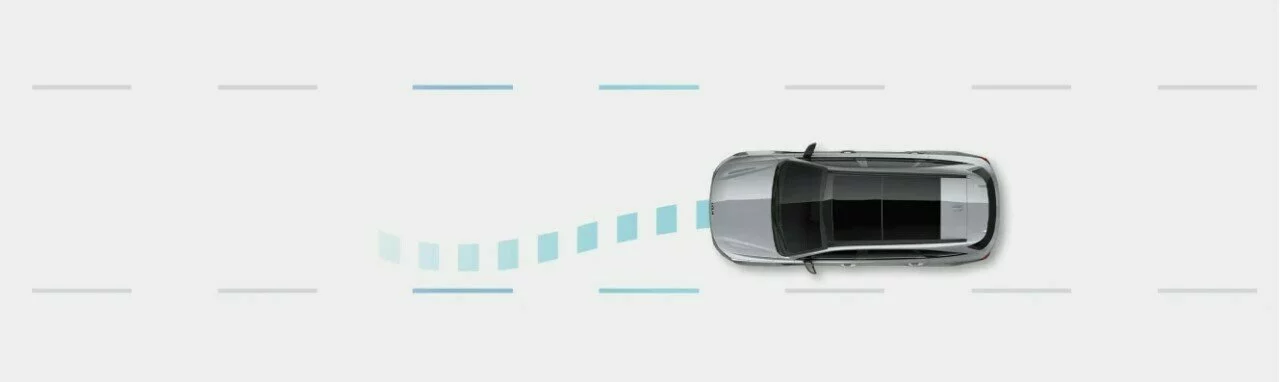

| Lane Keeping Assist (LKA) | - | • | • |
| Lane Following Assist (LFA) | - | • | • |
| Blind-Spot Collision-Avoidance Assist (BCA) | - | • | • |
| Blind-Spot View Monitor (BVM) | - | - | • |
| Around View Monitor (AVM) | - | - | • |
| Parking Collision-Avoidance Assist Reverse (PCA) | - | - | • |
| Parking Assist Sensors (PDC) | Front & Rear | Front & Rear | Front, Rear & Side |
| Rear Cross-Traffic Alert (RCTA) | - | • | • |
| Driver Attention Alert (DAA) | - | • | • |
| Rear Seat Check Alert | - | • | • |
| Specification | EX+ | SX | SXL |
|---|---|---|---|
| Warranty | 5 Years / Unlimited Kilometre | 5 Years / Unlimited Kilometre | 5 Years / Unlimited Kilometre |
| Service Plan | 6 Years / 90 000 km | 6 Years / 90 000 km | 6 Years / 90 000 km |
| Roadside Assistance | 5 Years / Unlimited Kilometre | 5 Years / Unlimited Kilometre | 5 Years / Unlimited Kilometre |
