| Specification | 1.5 Panel Van |
|---|---|
| Drive Type | 2WD |
| Transmission | 6-Speed Manual / CVT |
| Overall Dimensions (L x W x H) (mm) | 4110 x 1790 x 1610 (1642 with Roof Rack) |
| Wheelbase (mm) | 2500 |
| Overhang Front / Rear (mm) | 833 / 787 |
| Minimum Ground Clearance (mm) | 190 |
| Wheel Tread Front / Rear (mm) | 1558 / 1571 |

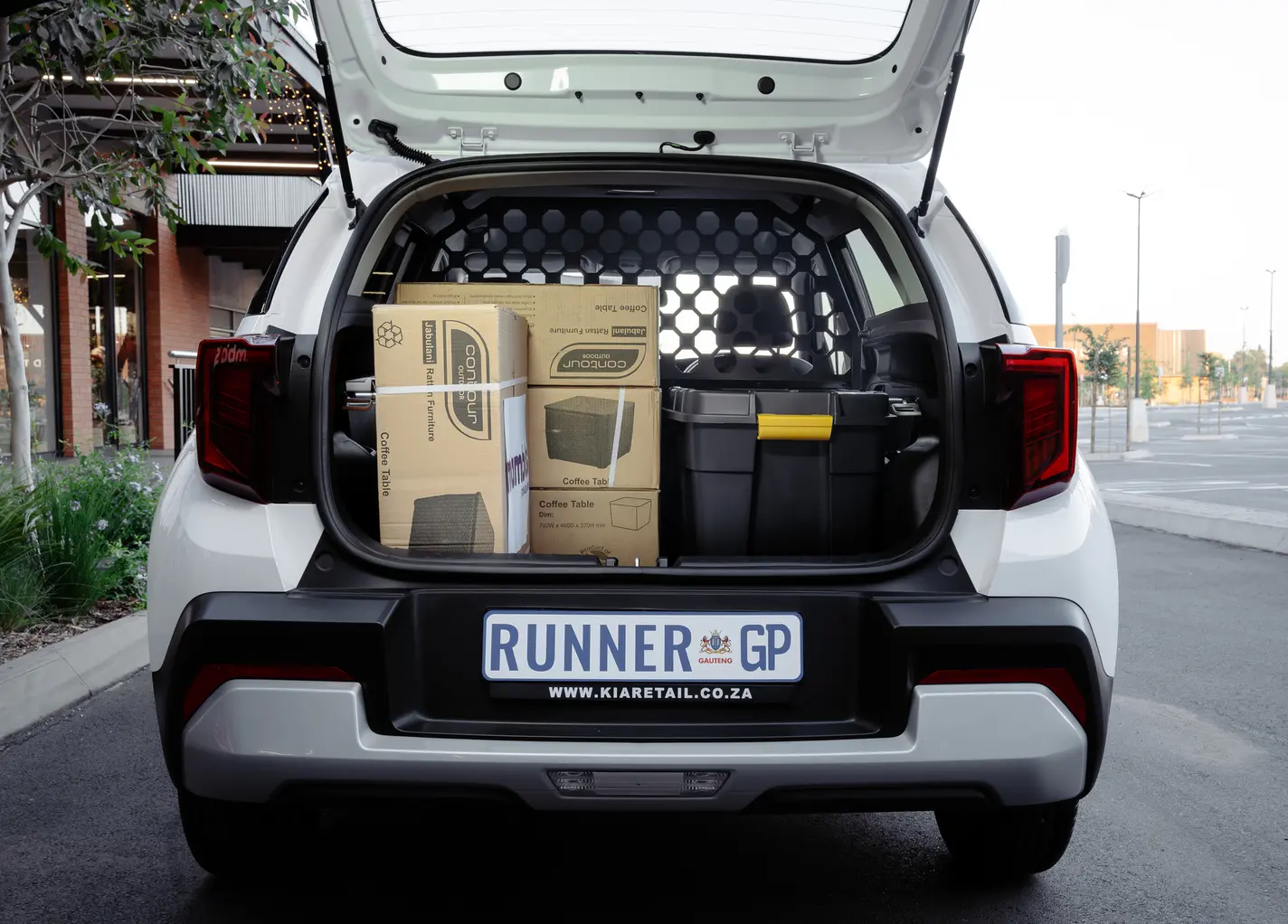

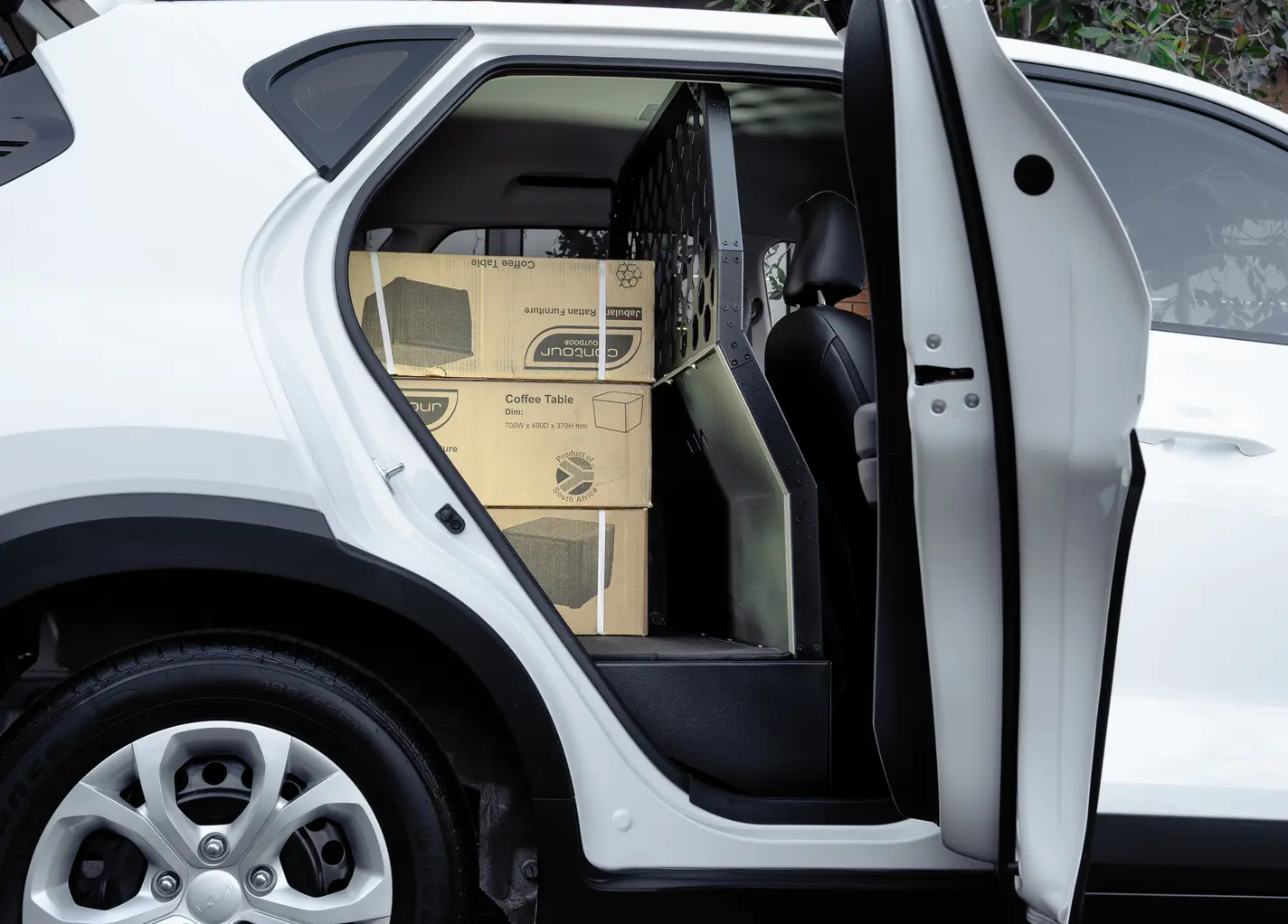

| Cargo Volume (L) | 1296 |
| Payload (kg) | 350 |
| Cargo Length (m) | 1.34 |
| Width Between Wheel Arches (m) | 1.06 |
| Width Between Rear Doors (m) | 1.25 |
| Cargo Height Floor to Roof (m) | 0.98 |
| Specification | 1.5 Panel Van |
|---|---|
| Engine Type | Gamma 1.5 MPI |
| Displacement (cc) | 1497 |
| Valve System | 16-Valve HLA |
| Maximum Power | 84.7 kW @ 6,300 rpm |
| Maximum Torque | 143.8 Nm @ 4,500 rpm |
| Compression Ratio | 10.5 : 1 |
| Bore x Stroke (mm) | 75.6 x 83.4 |
| Fuel Injection System | Multi-Point Injection (MPI) |
| Fuel Type | Petrol |
| Acceleration (0-100 km/h) | 10.5 (MT) / 10.3 (CVT) |
| Maximum Speed (km/h) | 175 |
| CO2 Emissions Combined (g/km) | 160 (MT) / 148 (CVT) |
| Specification | 1.5 Panel Van |
|---|---|
| Curb Weight (kg) | 1168 (MT) / 1197 (CVT) |
| Gross Vehicle Mass (GVM) (kg) | 1575 (MT) / 1605 (CVT) |
| Towing Mass Braked / Unbraked (kg) | 1100 / 500 |
| Fuel Tank Capacity (L) | 45 |
| Steering Type | Motor-Driven Power Steering (MDPS) |
| Minimum Turning Radius (m) | 5.3 |
| Front Brakes | Disc (280 mm) |
| Rear Brakes | Drum |
| Front Suspension | MacPherson Strut |
| Rear Suspension | Coupled Torsion Beam |
| Specification | 1.5 Panel Van |
|---|---|

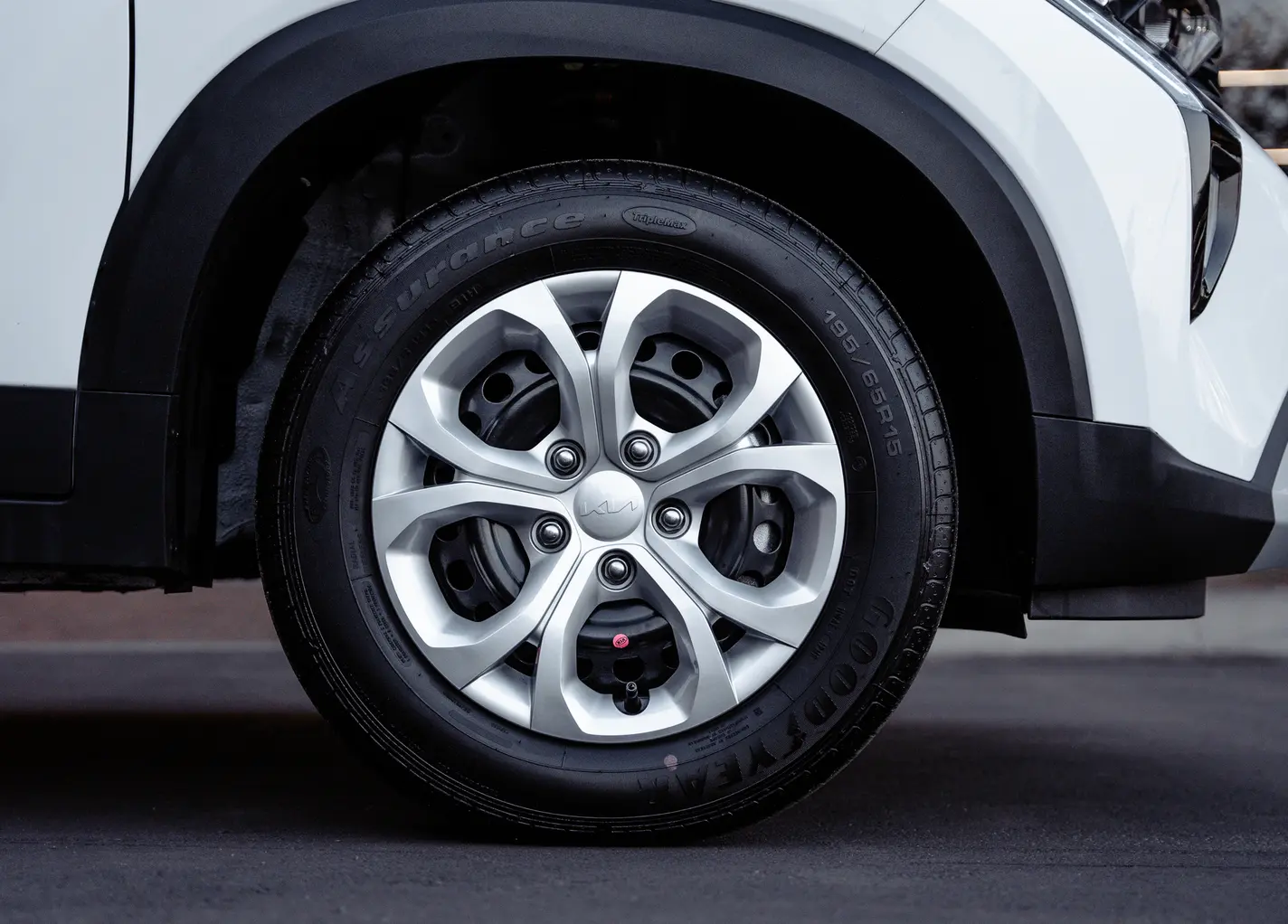

| Wheels | 15" Steel Wheel |
| Tyre Size | 195/65 R15 |
| Spare Wheel | 195/65 R15 Steel |
| Specification | 1.5 Panel Van |
|---|---|
| Anti-Lock Braking System (ABS) | • |
| Airbags | 2 (Driver & Passenger) |
| Central Locking with Immobiliser | • |
| Data Dot | • |
| Electronic Brake-force Distribution (EBD) | • |
| Electronic Stability Control (ESC) | • |
| Hill-Start Assist Control (HAC) | • |

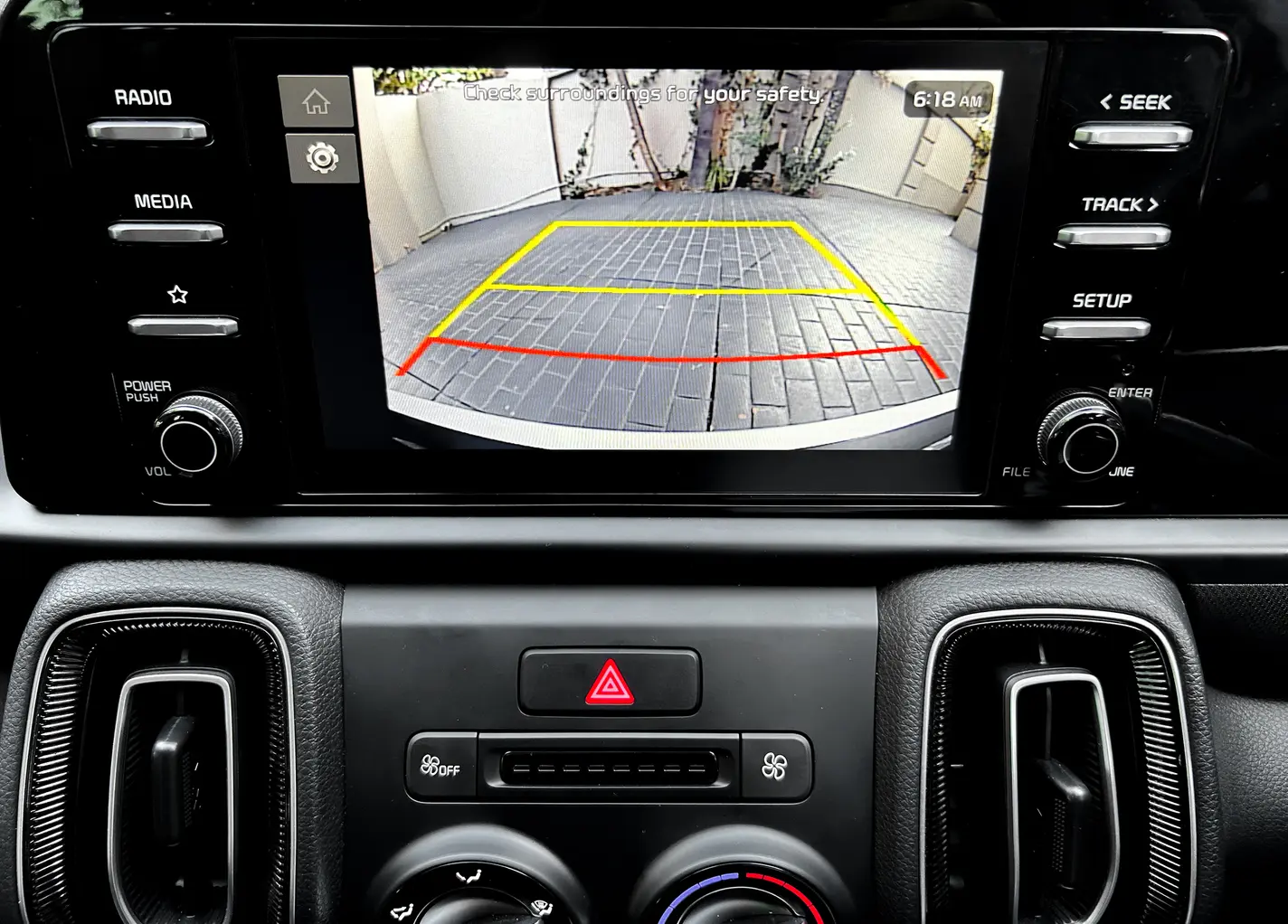

| Rearview Camera | • |
| Rheostat | • |
| Specification | 1.5 Panel Van |
|---|---|
| Air-Conditioner | Manual |
| Auto Light Control (Escort & Welcome Home) | • |
| Bluetooth w/ Voice Recognition & Audio Remote | • |
| Steering Wheel Remote Controls | • |

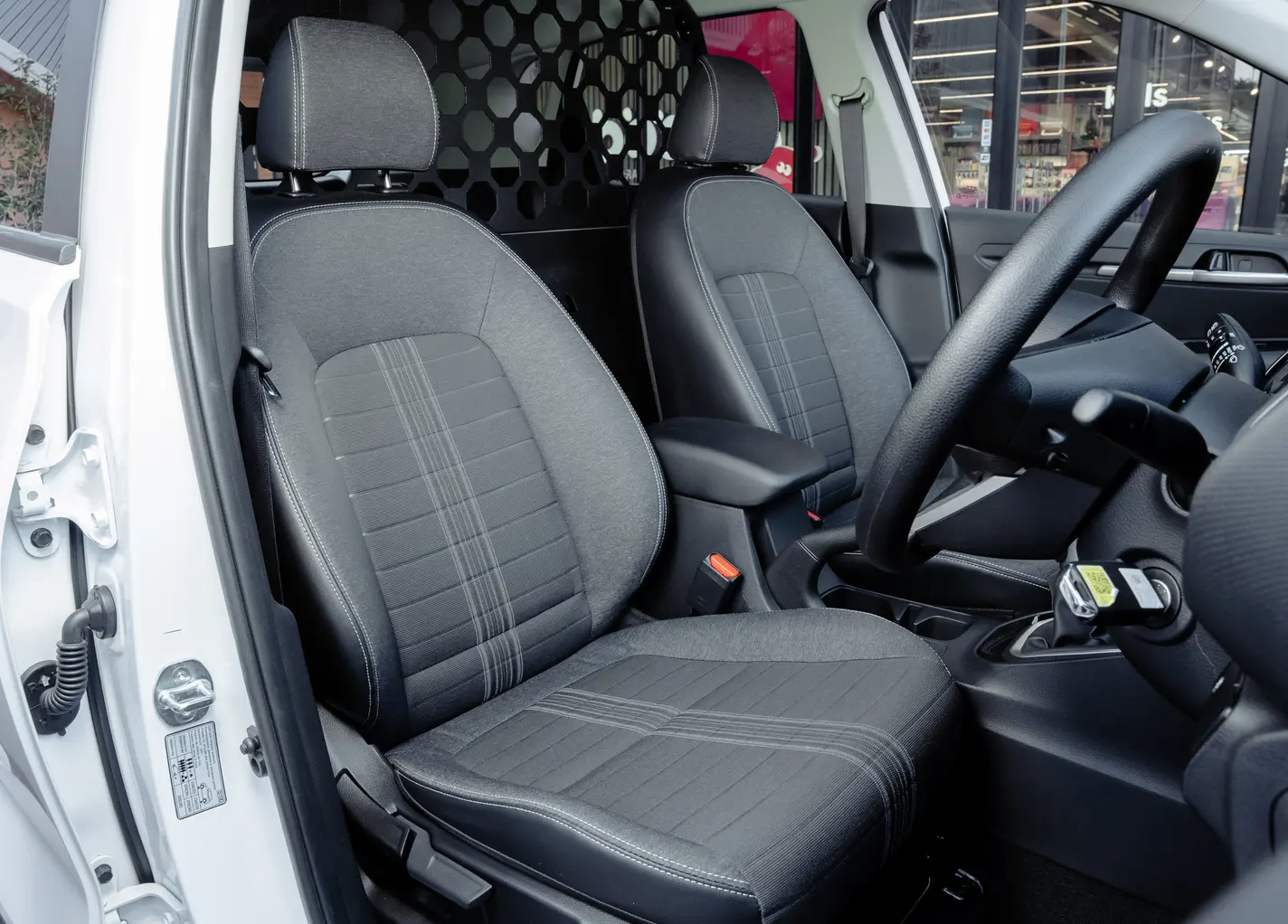

| Seat Upholstery | Black Cloth |
| Electric Side Mirrors | • |
| Front Vanity Mirrors | • |
| Front Electric Windows | • |
| Tilt-Adjustable Steering | • |

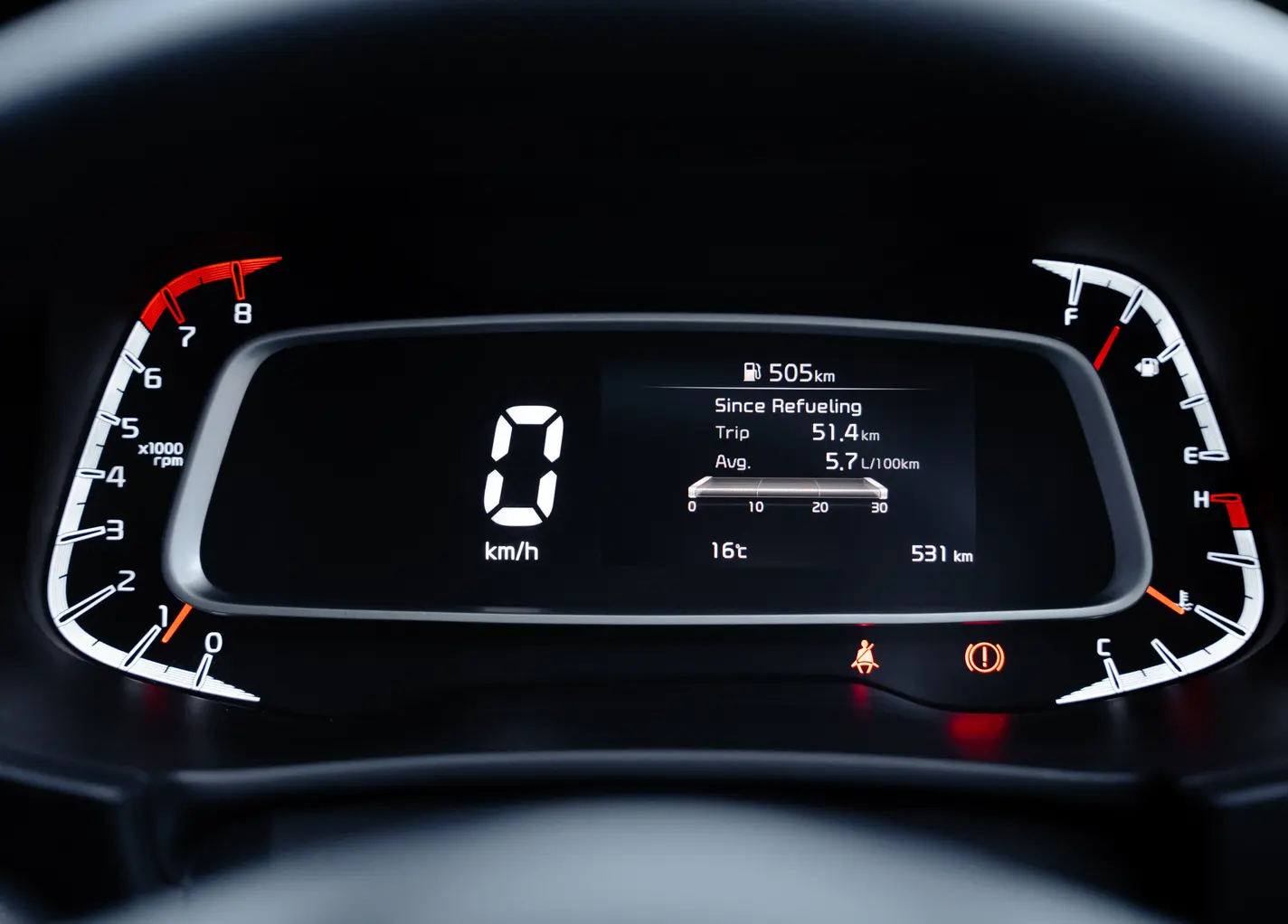

| 4.2" Supervision TFT LCD Screen | • |
| Overhead Console Lamp & Sunglass Case | • |
| Driver Seat Height Adjustment | • |

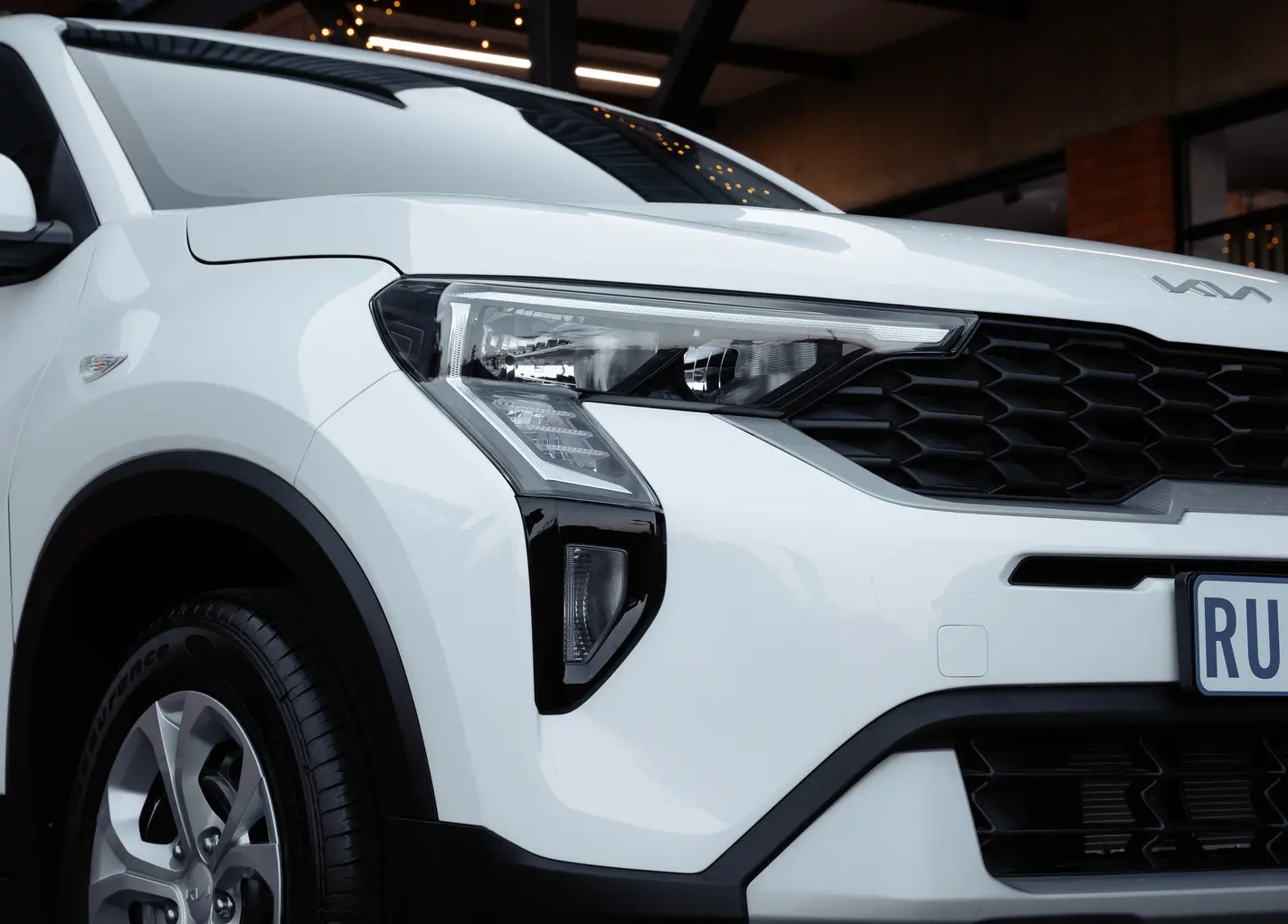

| Halogen Headlamps | • |
| Daytime Running Lights | Bulb |
| Position Lamps | Bulb |
| Rear Spoiler with High-Mounted Stop Lamp | Bulb |
| Specification | 1.5 Panel Van |
|---|---|

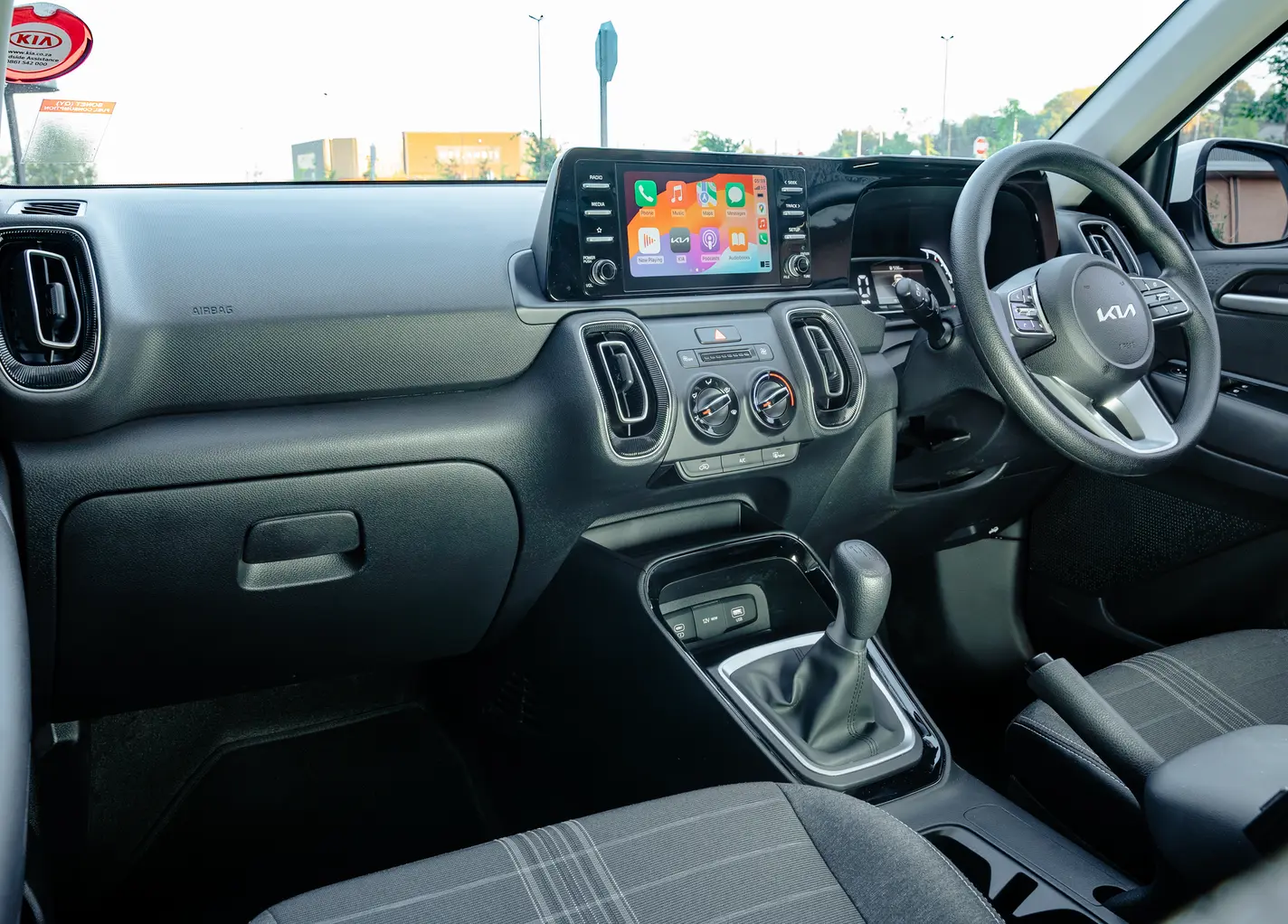

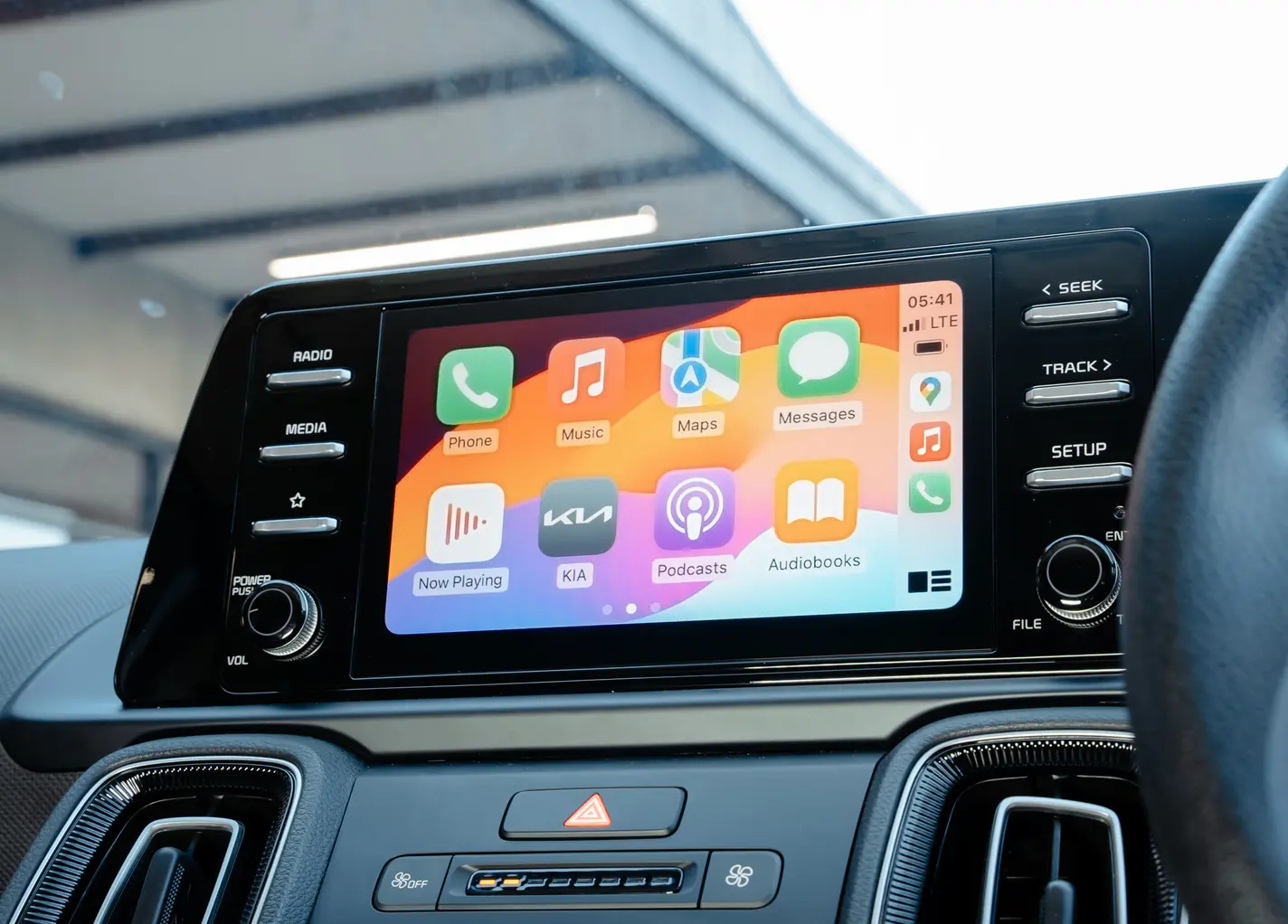

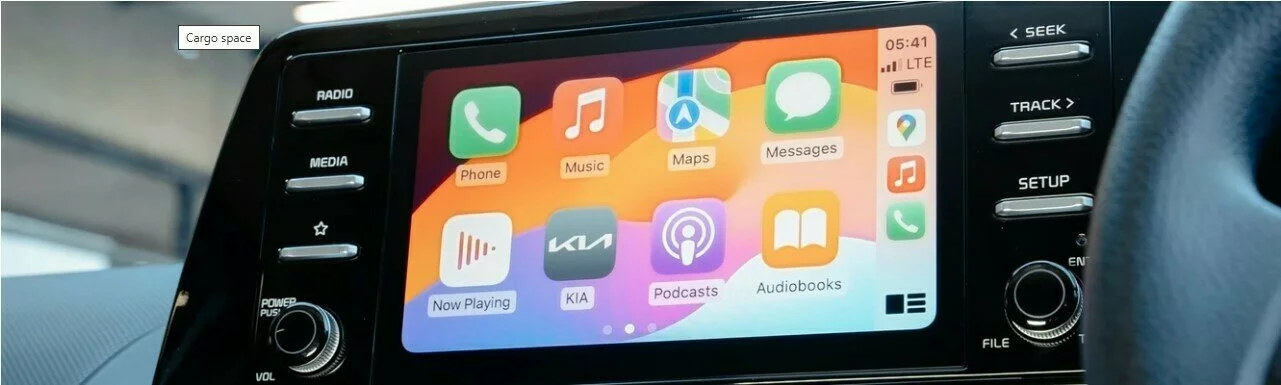

| 8-inch Touchscreen Infotainment Display | • |
| Wireless Apple CarPlay & Android Auto | • |
| Front USB Port & Charging USB Ports | 3 Ports (Front & Rear) |
| Speakers | 4 Speakers |
| Specification | 1.5 Panel Van |
|---|---|
| Warranty | 5 Years / Unlimited Kilometre |
| Service Plan | 3 Years / 45 000 km |
| Roadside Assistance | 5 Years / Unlimited Kilometre |
