| Specification | LS | LS+ | LX | EX | SX |
|---|---|---|---|---|---|
| Drive Type | 2WD | 2WD | 2WD | 2WD | 2WD |

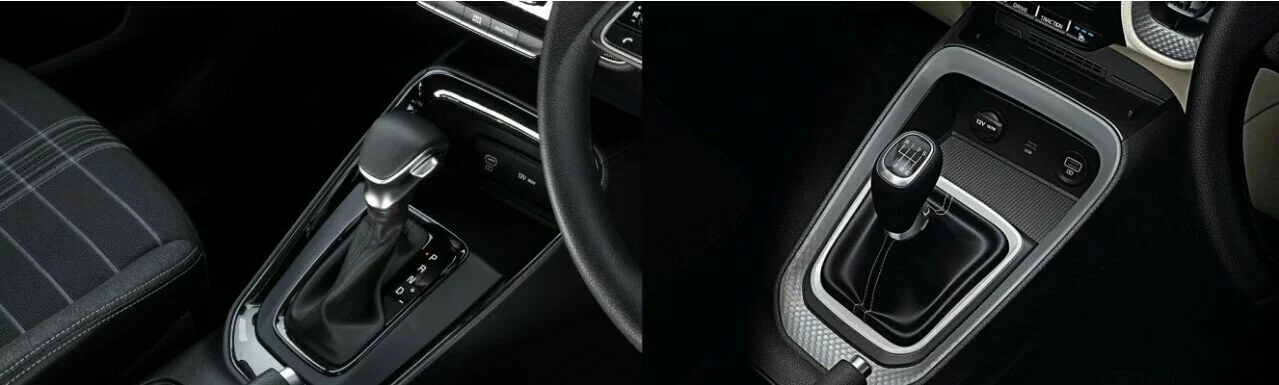

| Transmission | 6-Speed Manual & CVT | 6-Speed Manual & CVT | CVT | CVT | CVT |
| Overall Dimensions (L x W x H) (mm) | 4110 x 1790 x 1610 (1642 with Roof Rack) | 4110 x 1790 x 1610 (1642 with Roof Rack) | 4110 x 1790 x 1610 (1642 with Roof Rack) | 4110 x 1790 x 1610 (1642 with Roof Rack) | 4110 x 1790 x 1610 (1642 with Roof Rack) |
| Wheelbase (mm) | 2500 | 2500 | 2500 | 2500 | 2500 |
| Overhang Front / Rear (mm) | 833 / 787 | 833 / 787 | 833 / 787 | 833 / 787 | 833 / 787 |
| Minimum Ground Clearance (mm) | 190 | 190 | 190 | 190 | 190 |
| Wheel Tread Front / Rear (mm) | 1558 / 1571 | 1558 / 1571 | 1558 / 1571 | 1558 / 1571 | 1558 / 1571 |
| Specification | LS | LS+ | LX | EX | SX |
|---|---|---|---|---|---|
| Engine Type | Gamma 1.5 MPI | Gamma 1.5 MPI | Gamma 1.5 MPI | Gamma 1.5 MPI | Gamma 1.5 MPI |
| Displacement (cc) | 1497 | 1497 | 1497 | 1497 | 1497 |
| Valve System | 16-Valve HLA | 16-Valve HLA | 16-Valve HLA | 16-Valve HLA | 16-Valve HLA |
| Maximum Power | 84.7 kW @ 6,300 rpm | 84.7 kW @ 6,300 rpm | 84.7 kW @ 6,300 rpm | 84.7 kW @ 6,300 rpm | 84.7 kW @ 6,300 rpm |
| Maximum Torque | 143.8 Nm @ 4,500 rpm | 143.8 Nm @ 4,500 rpm | 143.8 Nm @ 4,500 rpm | 143.8 Nm @ 4,500 rpm | 143.8 Nm @ 4,500 rpm |
| Compression Ratio | 10.5 : 1 | 10.5 : 1 | 10.5 : 1 | 10.5 : 1 | 10.5 : 1 |
| Bore x Stroke (mm) | 75.6 x 83.4 | 75.6 x 83.4 | 75.6 x 83.4 | 75.6 x 83.4 | 75.6 x 83.4 |
| Fuel Injection System | Multi-Point Injection (MPI) | Multi-Point Injection (MPI) | Multi-Point Injection (MPI) | Multi-Point Injection (MPI) | Multi-Point Injection (MPI) |
| Fuel Type | Petrol | Petrol | Petrol | Petrol | Petrol |
| Acceleration (0-100 km/h) | 10.5 (MT) / 10.3 (CVT) | 10.5 (MT) / 10.3 (CVT) | 10.5 (MT) / 10.3 (CVT) | 10.3 sec | 10.3 sec |
| Maximum Speed (km/h) | 175 | 175 | 175 | 175 | 175 |
| CO2 Emissions Combined (g/km) | 160 (MT) / 148 (CVT) | 160 (MT) / 148 (CVT) | 160 (MT) / 148 (CVT) | 148 | 148 |
| Specification | LS | LS+ | LX | EX | SX |
|---|---|---|---|---|---|
| Curb Weight (kg) | 1168 (MT) / 1197 (CVT) | 1168 (MT) / 1197 (CVT) | 1168 (MT) / 1197 (CVT) | 1197 | 1197 |
| Gross Vehicle Mass (GVM) (kg) | 1575 (MT) / 1605 (CVT) | 1575 (MT) / 1605 (CVT) | 1575 (MT) / 1605 (CVT) | 1605 | 1605 |
| Towing Mass Braked / Unbraked (Manual) (kg) | 1100 / 500 | 1100 / 500 | 1100 / 500 | - | - |
| Towing Mass Braked / Unbraked (CVT) (kg) | 1100 / 500 | 1100 / 500 | 1100 / 500 | 1100 / 500 | 1100 / 500 |
| Fuel Tank Capacity (L) | 45 | 45 | 45 | 45 | 45 |
| Cargo Space (VDA, L) | 385 | 385 | 385 | 385 | 385 |
| Steering Type | Motor-Driven Power Steering (MDPS) | Motor-Driven Power Steering (MDPS) | Motor-Driven Power Steering (MDPS) | Motor-Driven Power Steering (MDPS) | Motor-Driven Power Steering (MDPS) |
| Minimum Turning Radius (m) | 5.3 | 5.3 | 5.3 | 5.3 | 5.3 |
| Front Brakes | Disc (280 mm) | Disc (280 mm) | Disc (280 mm) | Disc (280 mm) | Disc (280 mm) |
| Rear Brakes | Drum | Drum | Disc (262 mm) | Disc (262 mm) | Disc (262 mm) |
| Front Suspension | MacPherson Strut | MacPherson Strut | MacPherson Strut | MacPherson Strut | MacPherson Strut |
| Rear Suspension | Coupled Torsion Beam | Coupled Torsion Beam | Coupled Torsion Beam | Coupled Torsion Beam | Coupled Torsion Beam |
| Specification | LS | LS+ | LX | EX | SX |
|---|---|---|---|---|---|

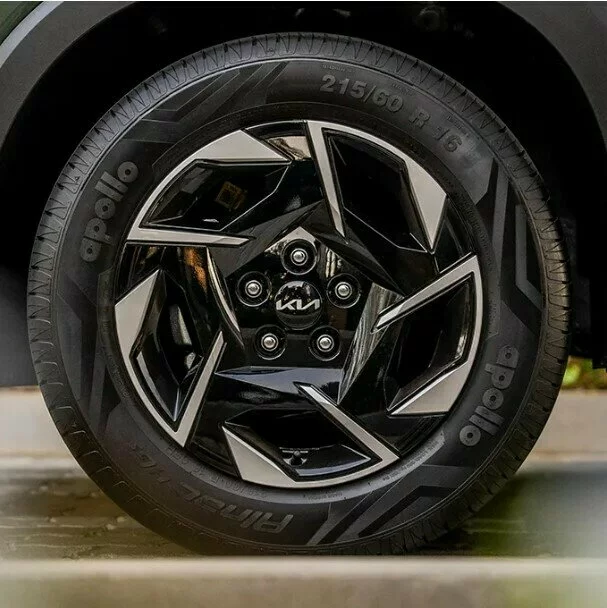

| Wheels | 15" Steel | 16" Styled | 16" Styled | 16" Styled | 16" Alloy |
| Tyres | 195/65 R15 (Steel) | 215/60 R16 (Styled) | 215/60 R16 (Styled) | 215/60 R16 (Styled) | 215/60 R16 (Alloy) |
| Spare Wheel | Temporary Steel | Temporary Steel | Temporary Steel | Temporary Steel | Temporary Steel |
| Specification | LS | LS+ | LX | EX | SX |
|---|---|---|---|---|---|
| Anti-Lock Braking System (ABS) | • | • | • | • | • |

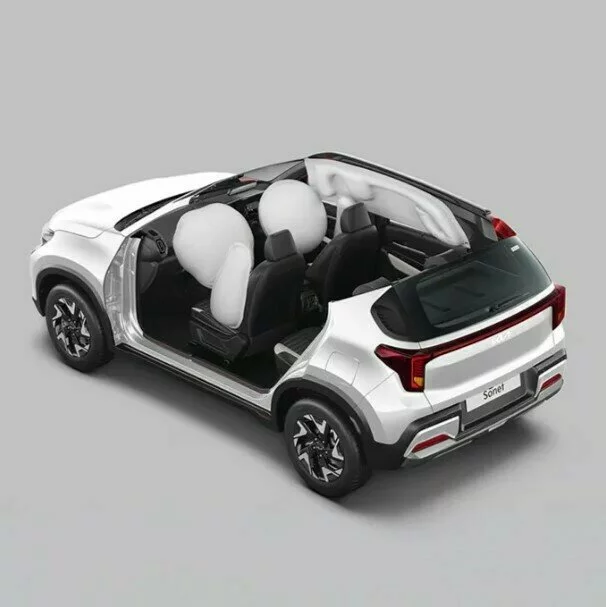

| Airbags | 2 (Driver & Passenger) | 6 (Front, Side, Curtain) | 6 (Front, Side, Curtain) | 6 (Front, Side, Curtain) | 6 (Front, Side, Curtain) |
| Central Locking with Immobiliser | • | • | • | • | Smart Entry |
| Data Dot | • | • | • | • | • |
| Electronic Brake-Force Distribution (EBD) | • | • | • | • | • |
| Electronic Stability Control (ESC) | • | • | • | • | • |
| Hill-Start Assist Control (HAC) | • | • | • | • | • |
| ISOFIX Child Seat Anchors | • | • | • | • | • |
| Parking Distance Warning (PDC) | - | - | Rear Only | Front & Rear | Front & Rear |
| Rearview Camera | • | • | • | • | • (With Switch) |
| Rheostat | • | • | • | • | • |
| Smart Entry with Push Button Start & Remote Start | - | - | - | - | • |
| Specification | LS | LS+ | LX | EX | SX |
|---|---|---|---|---|---|
| Air-Conditioner | Manual | Manual | Manual | Manual | Automatic |
| Auto Light Control (Escort & Welcome Home) | • | • | • | • | • |
| Bluetooth w/ Voice Recognition & Audio Remote | • | • | • | • | • |

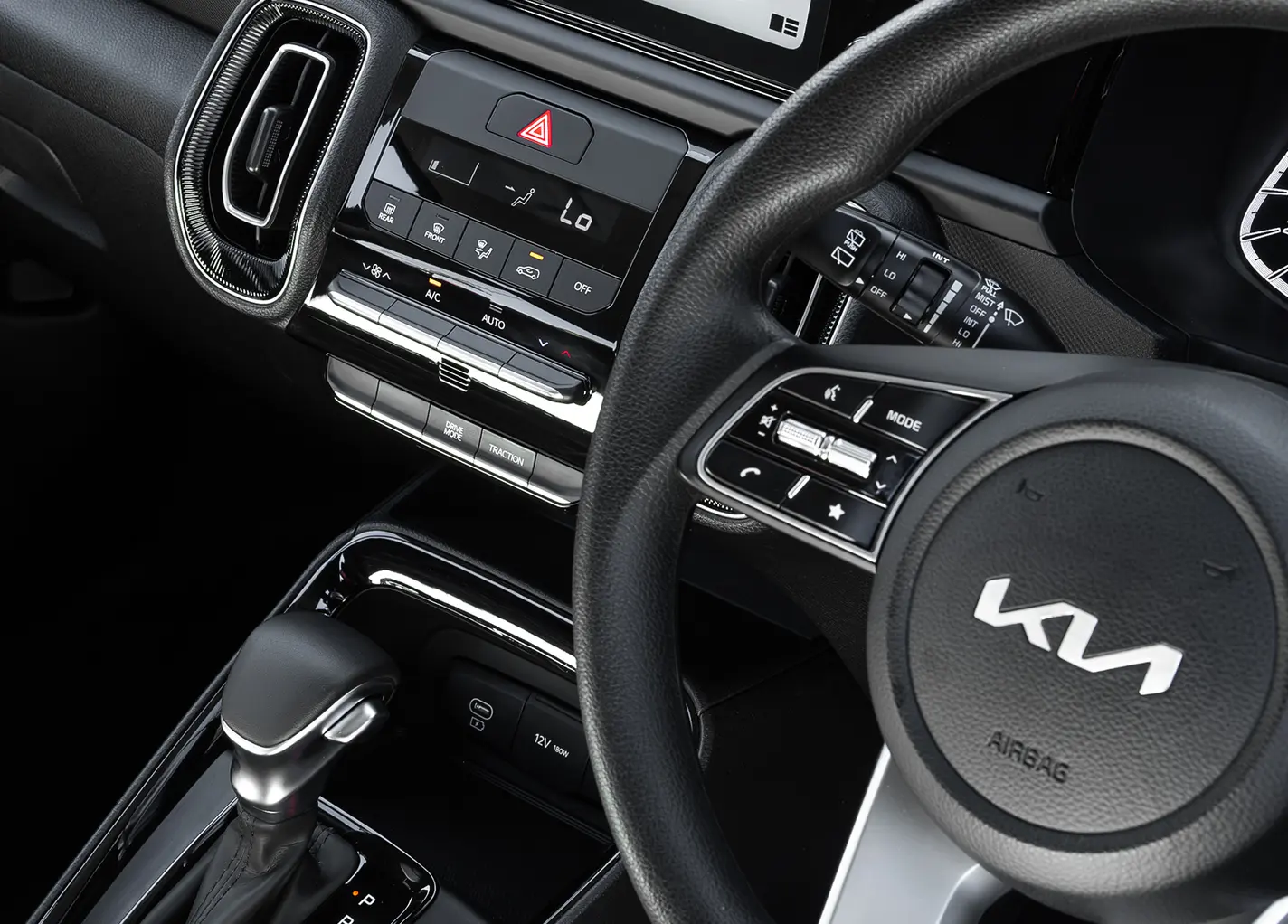

| Steering Wheel Remote Controls | • | • | • | • | • |

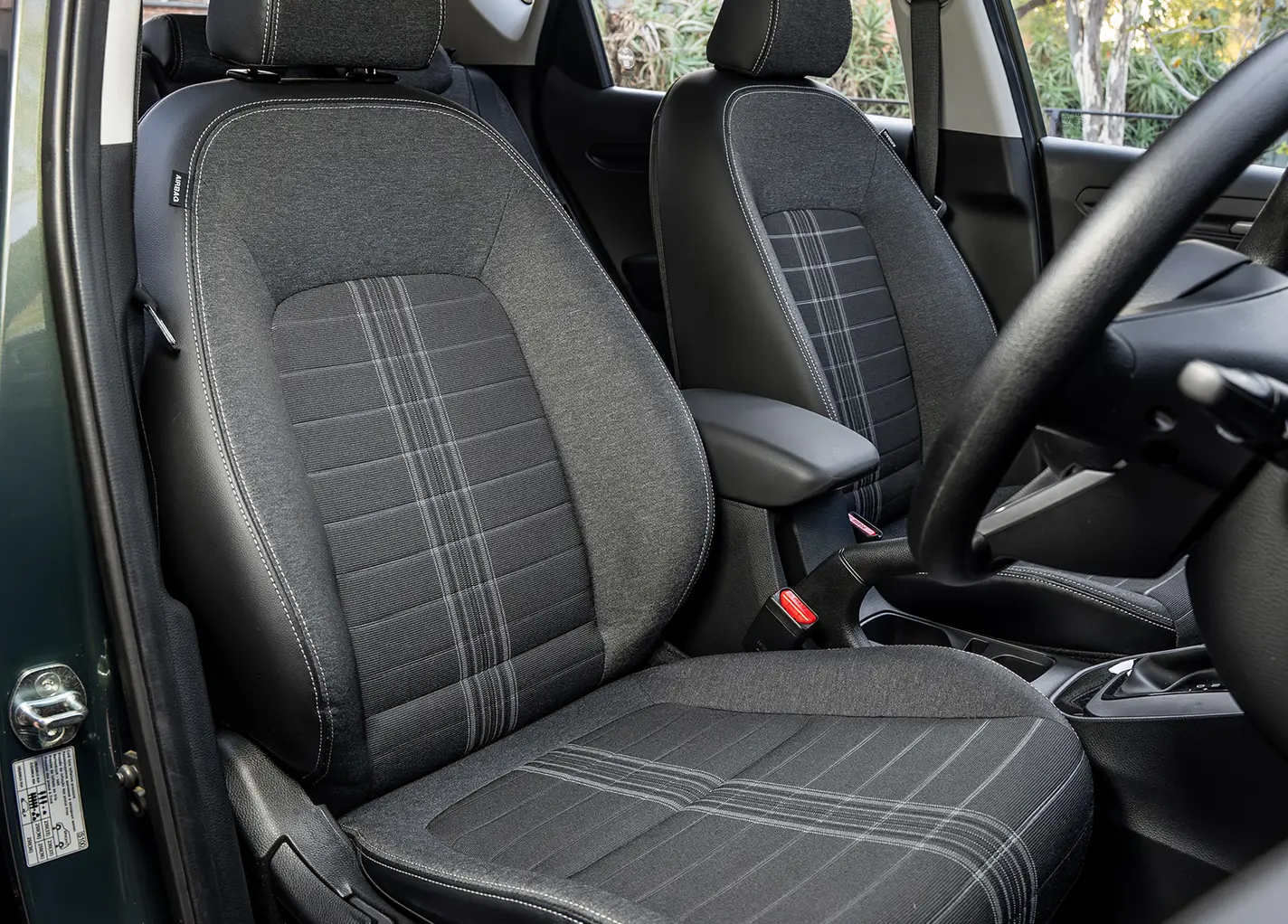

| Seat Upholstery | Cloth / Artificial Leather | Cloth / Artificial Leather | Cloth / Artificial Leather | Cloth / Artificial Leather | Artificial Leather |
| Electric Side Mirrors | • | • | • | • | • |
| Electric Side Mirrors with Integrated Turn Signals | - | - | • | • | • |
| Auto-Folding Side Mirrors | - | - | - | • | • |
| Front Vanity Mirrors | Passenger Only | Passenger Only | • | • | • |
| Electric Windows (Front & Rear) | • | • | • | • | • |
| Tilt-Adjustable Steering | • | • | • | • | • |
| 60:40 Split Rear Folding Seats | - | - | • | • | • |
| Overhead Console Lamp & Sunglass Case | • | • | • | • | • |
| Driver Seat Height Adjustment | • | • | • | • | • |
| Centre Console Armrest with Storage Box | - | - | • | • | • |
| Leather Steering Wheel & Gear Shifter | - | - | - | • | • |
| Roof Rack | - | - | • | • | • |
| Cruise Control (Conventional) | - | - | • | • | • |

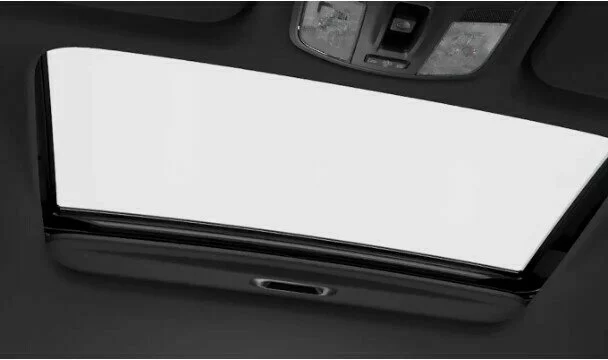

| Electric Sunroof | - | - | - | • | • |
| Specification | LS | LS+ | LX | EX | SX |
|---|---|---|---|---|---|
| Rear Spoiler with High-Mounted Stop Lamp | Bulb | Bulb | Bulb | LED | LED |
| Daytime Running Lights | Bulb | Bulb | Bulb | LED | LED |
| Position Lamps | Bulb | Bulb | Bulb | LED | LED |

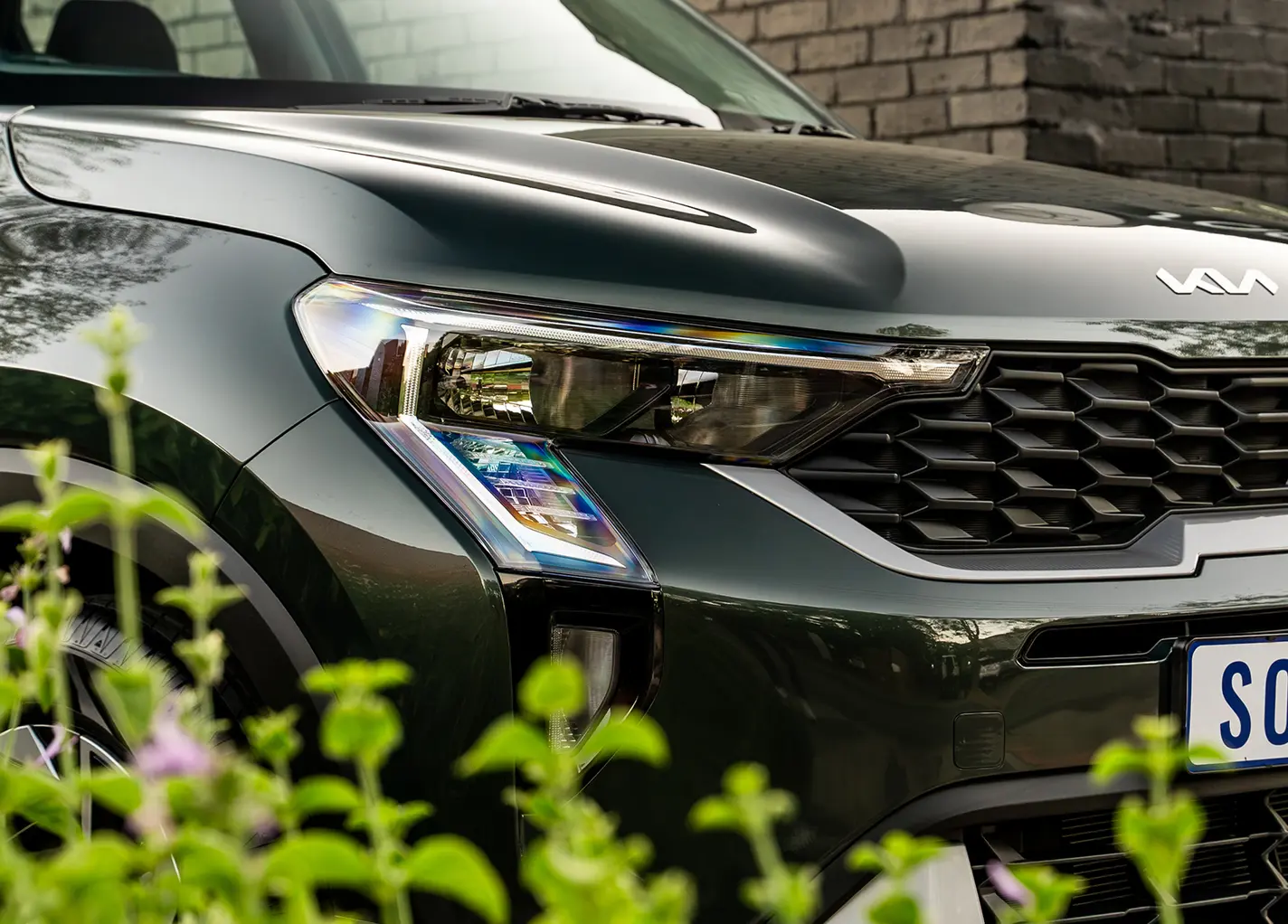

| Headlamps | Halogen | Halogen | Halogen | Halogen | LED |

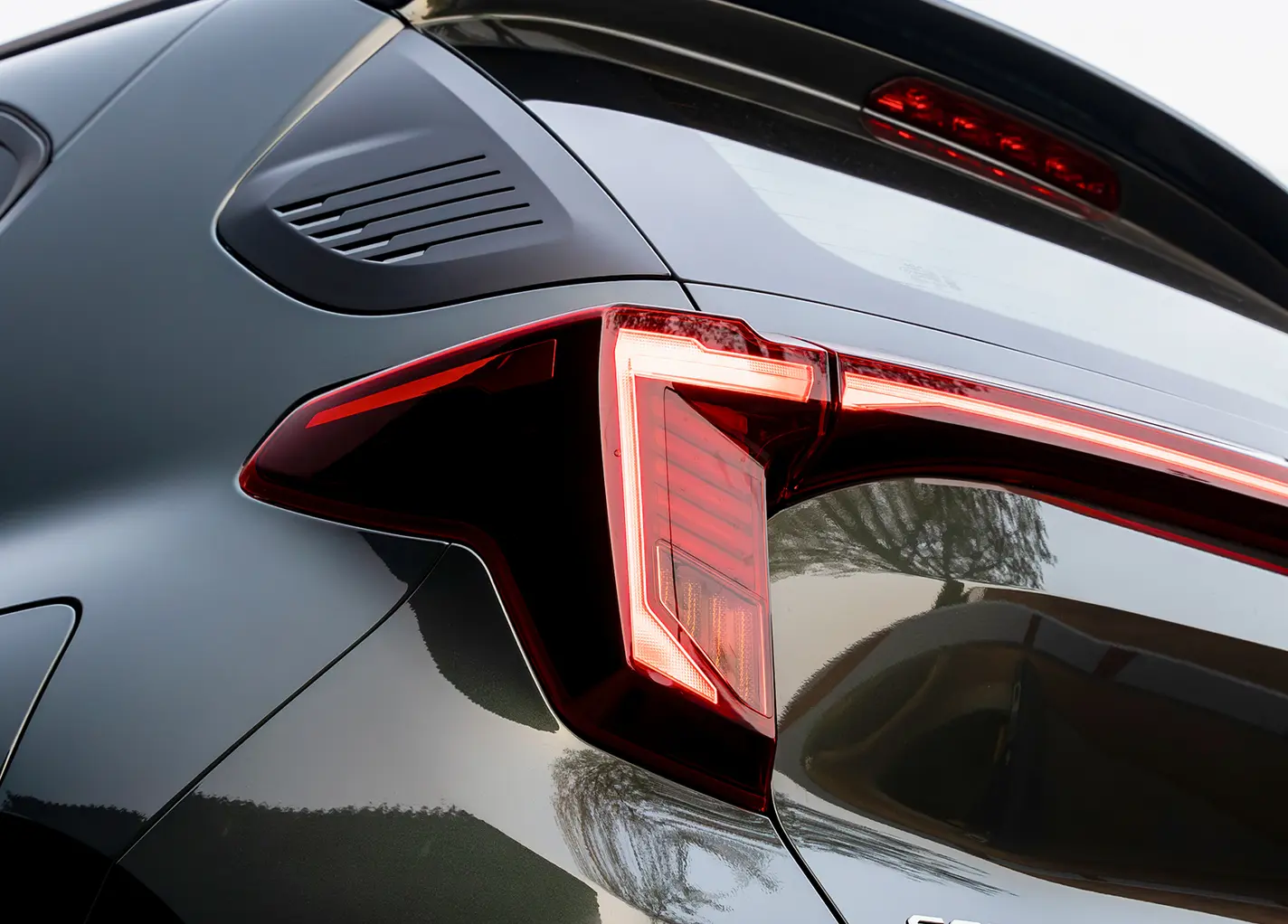

| LED Rear Combination Lamps | - | - | - | - | • |
| Rear Fog Lamps | - | - | - | • | • |
| Front Fog Lights | - | - | - | - | LED |
| Specification | LS | LS+ | LX | EX | SX |
|---|---|---|---|---|---|

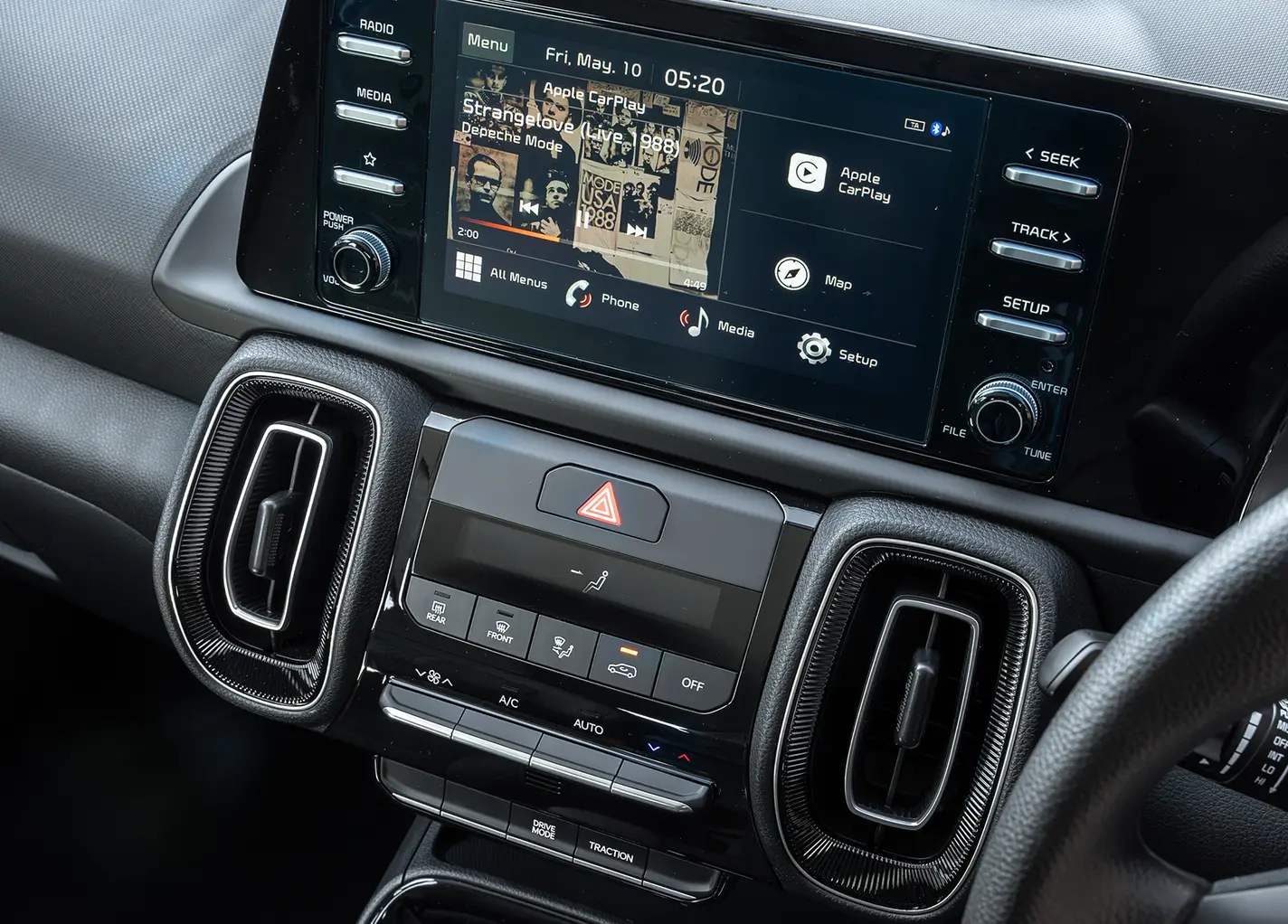

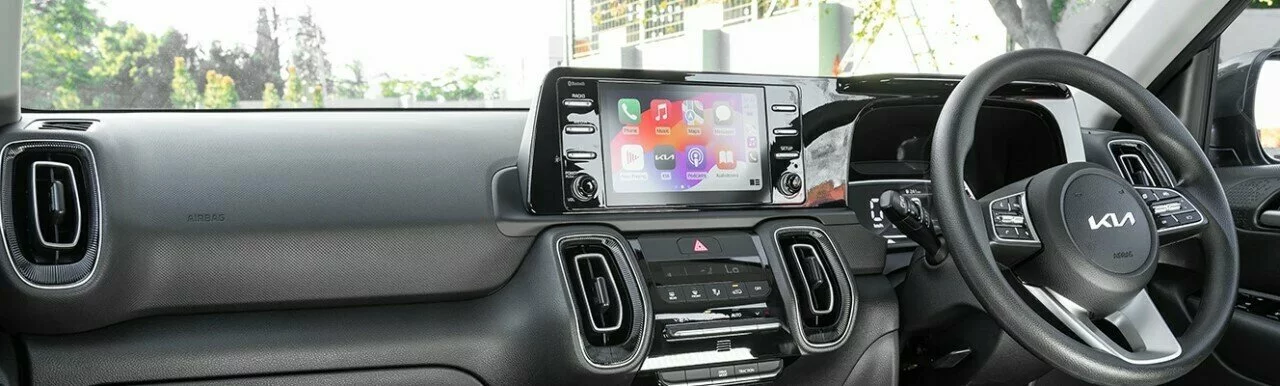

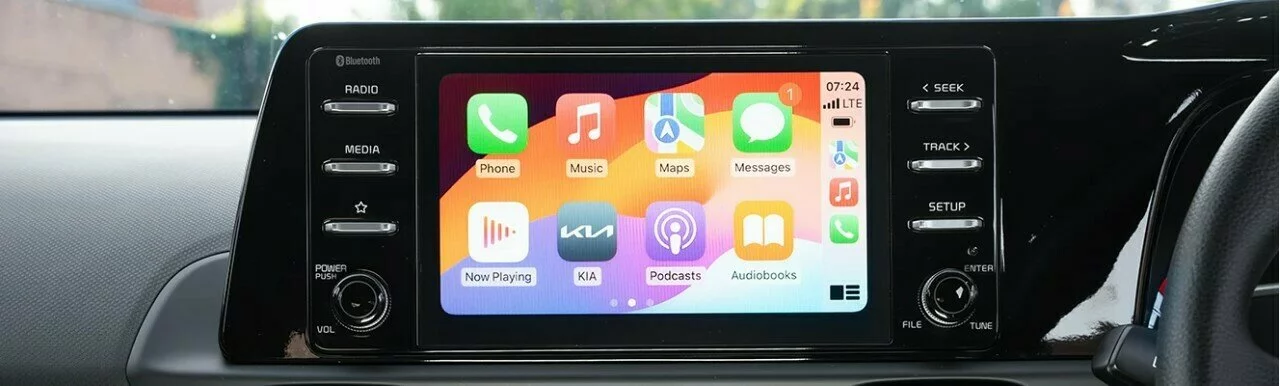

| 8-inch Touchscreen Infotainment Display | • | • | • | • | - |
| 10.25-inch Touchscreen Infotainment Display | - | - | - | - | • |
| Instrument Cluster Display | 4.2" Supervision TFT LCD | 4.2" Supervision TFT LCD | 4.2" Supervision TFT LCD | 10.25" Supervision TFT LCD | 10.25" Supervision TFT LCD |
| Wireless Apple CarPlay & Android Auto | • | • | • | • | • |

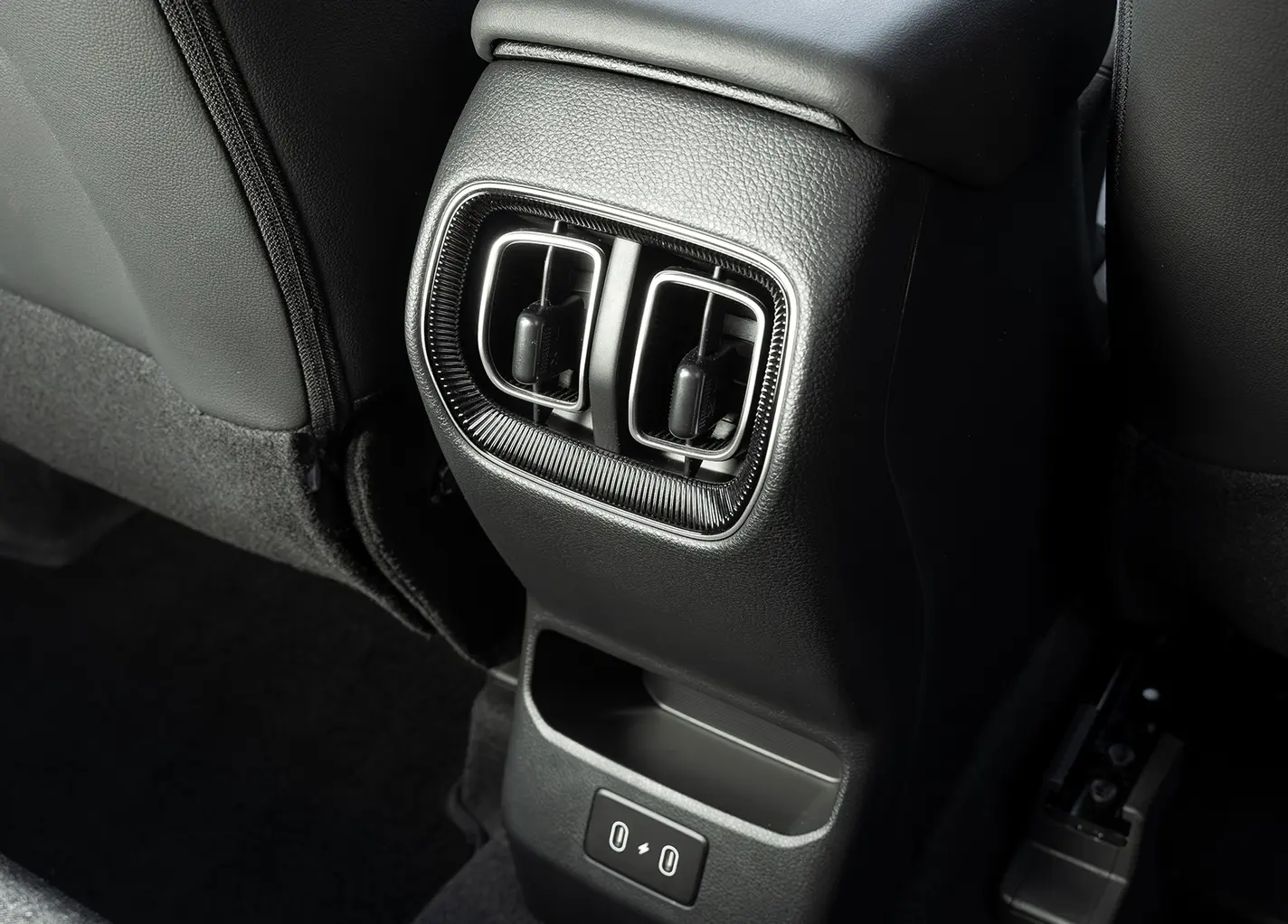

| USB Charging Ports | 3 Ports (Front & Rear) | 3 Ports (Front & Rear) | 3 Ports (Front & Rear) | 3 Ports (Front & Rear) | 3 Ports (Front & Rear) |
| Speakers | 6 Speakers | 6 Speakers | 6 Speakers | 6 Speakers | 7 Speakers (Bose) |

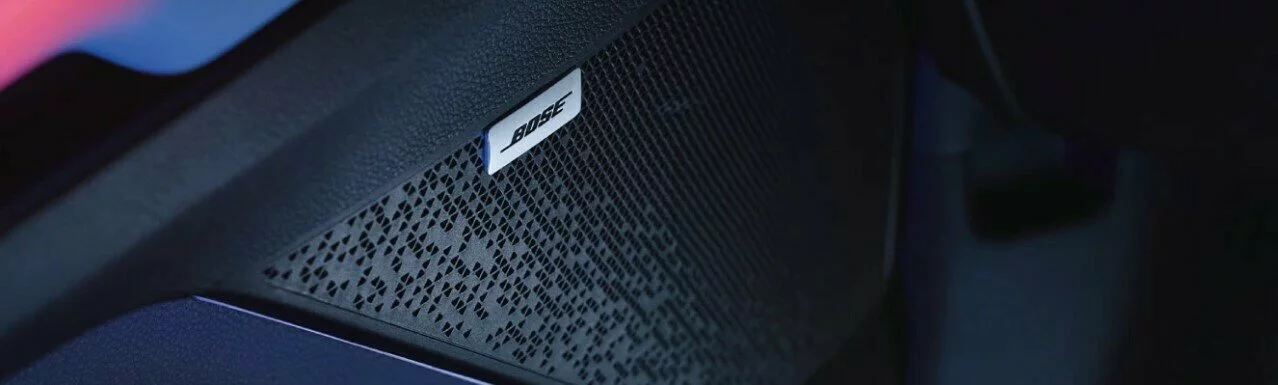

| Bose Premium Sound System | - | - | - | - | • |
| Wireless Smartphone Charger | - | - | - | - | • |
| Electrochromatic Rearview Mirror | - | - | - | - | • |
| Specification | LS | LS+ | LX | EX | SX |
|---|---|---|---|---|---|
| Lane Keep Assist | - | - | - | - | • |
| Lane Following Assist | - | - | - | - | • |
| Forward Collision Assist | - | - | - | - | • |
| Drive Mode Select | - | - | - | - | • |
| Specification | LS | LS+ | LX | EX | SX |
|---|---|---|---|---|---|
| Warranty | 5 Years / Unlimited Kilometre | 5 Years / Unlimited Kilometre | 5 Years / Unlimited Kilometre | 5 Years / Unlimited Kilometre | 5 Years / Unlimited Kilometre |
| Service Plan | 3 Years / 45 000 km | 3 Years / 45 000 km | 3 Years / 45 000 km | 3 Years / 45 000 km | 3 Years / 45 000 km |
| Roadside Assistance | 5 Years / Unlimited Kilometre | 5 Years / Unlimited Kilometre | 5 Years / Unlimited Kilometre | 5 Years / Unlimited Kilometre | 5 Years / Unlimited Kilometre |
