| Specification | 1.5 LS Man | 1.5 LS CVT | 1.5 LX CVT | 1.5 GT-Line CVT | 1.5 CRDI GT-Line AT | 1.5 T-GDI Turbo GT-Line S | 1.5 CRDI X-Line |
|---|---|---|---|---|---|---|---|
| Overall length x width x height (mm) | 4460 x 1830 x 1630 | 4460 x 1830 x 1630 | 4460 x 1830 x 1630 | 4460 x 1830 x 1630 | 4460 x 1830 x 1630 | 4460 x 1830 x 1630 | 4460 x 1830 x 1630 |
| Wheelbase (mm) | 2690 | 2690 | 2690 | 2690 | 2690 | 2690 | 2690 |
| Wheel tread (front/rear) (mm) | 1592/1602 (215/60R17), 1590/1600 (215/55R18) | 1592/1602 (215/60R17), 1590/1600 (215/55R18) | 1592/1602 (215/60R17), 1590/1600 (215/55R18) | 1592/1602 (215/60R17), 1590/1600 (215/55R18) | 1592/1602 (215/60R17), 1590/1600 (215/55R18) | 1592/1602 (215/60R17), 1590/1600 (215/55R18) | 1592/1602 (215/60R17), 1590/1600 (215/55R18) |
| Overhang (front/rear) (mm) | 895/875 | 895/875 | 895/875 | 895/875 | 895/875 | 895/875 | 895/875 |
| Specification | 1.5 LS Man | 1.5 LS CVT | 1.5 LX CVT | 1.5 GT-Line CVT | 1.5 CRDI GT-Line AT | 1.5 T-GDI Turbo GT-Line S | 1.5 CRDI X-Line |
|---|---|---|---|---|---|---|---|
| Engine Type | GammaII 1.5 MPI | GammaII 1.5 MPI | GammaII 1.5 MPI | GammaII 1.5 MPI | |||
| Displacement (cc) | 1497 | 1497 | 1497 | 1 497 | |||
| Valve system | 16-Valve HLA | 16-Valve HLA | 16-Valve HLA | 16-Valve HLA | |||
| Maximum Power (Kw @ rpm) | 85 kW @ 6,300 rpm | 85 kW @ 6,300 rpm | 85 kW @ 6,300 rpm | 85 kW @ 6,300 rpm | |||
| Maximum Torque (Nm/rpm) | 144 Nm @ 4,500 rpm | 144 Nm @ 4,500 rpm | 144 Nm @ 4,500 rpm | 144 Nm @ 4,500 rpm | |||
| Compression ratio | 11.0 : 1 | 11.0 : 1 | 11.0 : 1 | 11.0 : 1 | |||
| Bore x stroke (mm) | 75.6 x 83.4 | 75.6 x 83.4 | 75.6 x 83.4 | 75.6 x 83.4 | |||
| Fuel System | Multi Point Injection (MPI) | Multi Point Injection (MPI) | Multi Point Injection (MPI) | Multi Point Injection (MPI) | |||
| Fuel Type | Petrol | Petrol | Petrol | Petrol | |||
| Fuel Consumption ℓ/100km) MT/ AT | 6,2L/6,4L (Combined) | 6,2L/6,4L (Combined) | 6,2L/6,4L (Combined) | 6,4L (Combined) | |||
| Acceleration (0-100km/h) MT/AT | 12.3 (est) | 12.3 (est) | 12.3 (est) | 12.3 (est) | |||
| Maximum Speed (km/h) MT/AT | 170 | 170 | 170 | 170 | |||
| CO2 emissions (g/km) - Combined | 158 (MT) / 149 (CVT) | 158 (MT) / 149 (CVT) | 158 (MT) / 149 (CVT) | 149 (CVT) |
| Specification | 1.5 LS Man | 1.5 LS CVT | 1.5 LX CVT | 1.5 GT-Line CVT | 1.5 CRDI GT-Line AT | 1.5 T-GDI Turbo GT-Line S | 1.5 CRDI X-Line |
|---|---|---|---|---|---|---|---|
| Ground clearance (mm) | 200 | 200 | 200 | 200 | 200 | 200 | 200 |
| Curb Weight (max kg) MT/AT | 1355/1460 | 1355/1460 | 1355/1460 | 1355/1460 | 1355/1460 | 1355/1460 | 1355/1460 |
| Gross Vehicle Mass (GVM) (kg) MT/AT | 1790/1940 | 1790/1940 | 1790/1940 | 1790/1940 | 1790/1940 | 1790/1940 | 1790/1940 |
| Gross Combination Weight (kg) MT/AT | 2890/3040 | 2890/3040 | 2890/3040 | 2890/3040 | 2890/3040 | 2890/3040 | 2890/3040 |
| Tow mass (kg) - Braked / Unbraked | 1100/550 | 1100/550 | 1100/550 | 1100/550 | 1100/550 | 1100/550 | 1100/550 |
| Fuel Tank Capacity (l) | 50 | 50 | 50 | 50 | 50 | 50 | 50 |
| Front brakes | Disc (300mm) | Disc (300mm) | Disc (300mm) | Disc (300mm) | Disc (300mm) | Disc (300mm) | Disc (300mm) |
| Rear brakes | Disc (262mm) | Disc (262mm) | Disc (262mm) | Disc (262mm) | Disc (262mm) | Disc (262mm) | Disc (262mm) |
| Front Suspension | McPherson strut | McPherson strut | McPherson strut | McPherson strut | McPherson strut | McPherson strut | McPherson strut |
| Rear Suspension | Coupled torsion beam | Coupled torsion beam | Coupled torsion beam | Coupled torsion beam | Coupled torsion beam | Coupled torsion beam | Coupled torsion beam |
| Steering Type | MDPS (DC) | MDPS (DC) | MDPS (DC) | MDPS (DC) | MDPS (DC) | MDPS (DC) | MDPS (DC) |
| Specification | 1.5 LS Man | 1.5 LS CVT | 1.5 LX CVT | 1.5 GT-Line CVT | 1.5 CRDI GT-Line AT | 1.5 T-GDI Turbo GT-Line S | 1.5 CRDI X-Line |
|---|---|---|---|---|---|---|---|

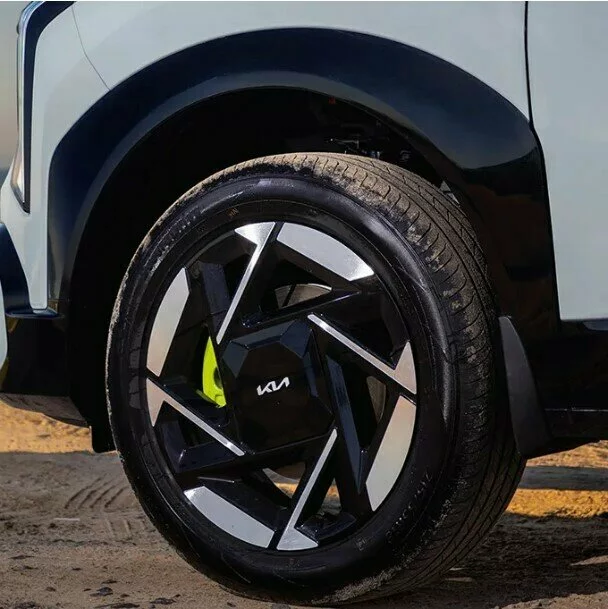

| Wheels | 17” Alloy | 17” Alloy | 17” Alloy | 18” Alloy | |||
| Tyre Size | ‘215/60R17 | ‘215/60R17 | ‘215/60R17 | 215/55R18 | |||
| Steel Spare Wheel | X | X | X | X | X | X | X |
| Specification | 1.5 LS Man | 1.5 LS CVT | 1.5 LX CVT | 1.5 GT-Line CVT | 1.5 CRDI GT-Line AT | 1.5 T-GDI Turbo GT-Line S | 1.5 CRDI X-Line |
|---|---|---|---|---|---|---|---|
| Auto Light Control | X | X | X | X | |||

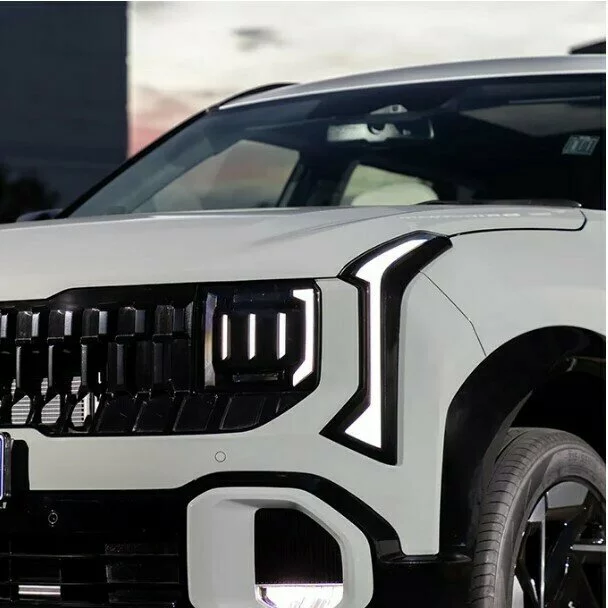

| LED Headlamps (MFR 3 Cell) | X | X | X | - | |||
| LED Headlamps (Wide Projection) | - | - | - | X | |||
| High-Mounted Stop Lamp | X | X | X | X | |||
| LED Daytime Running Lights | X | X | X | X | |||

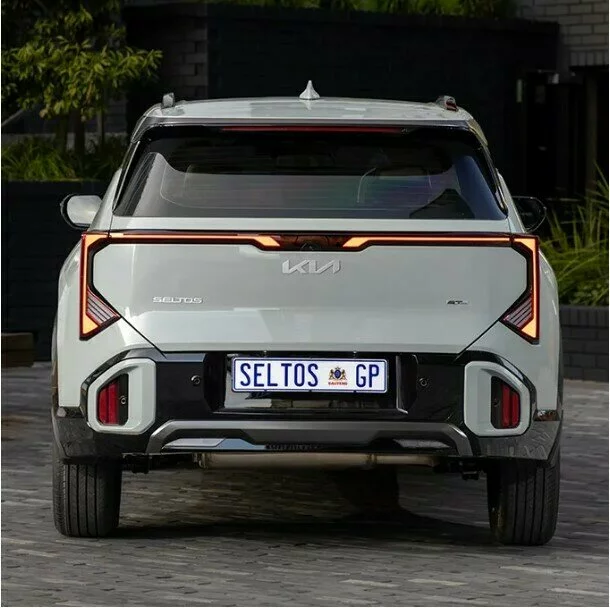

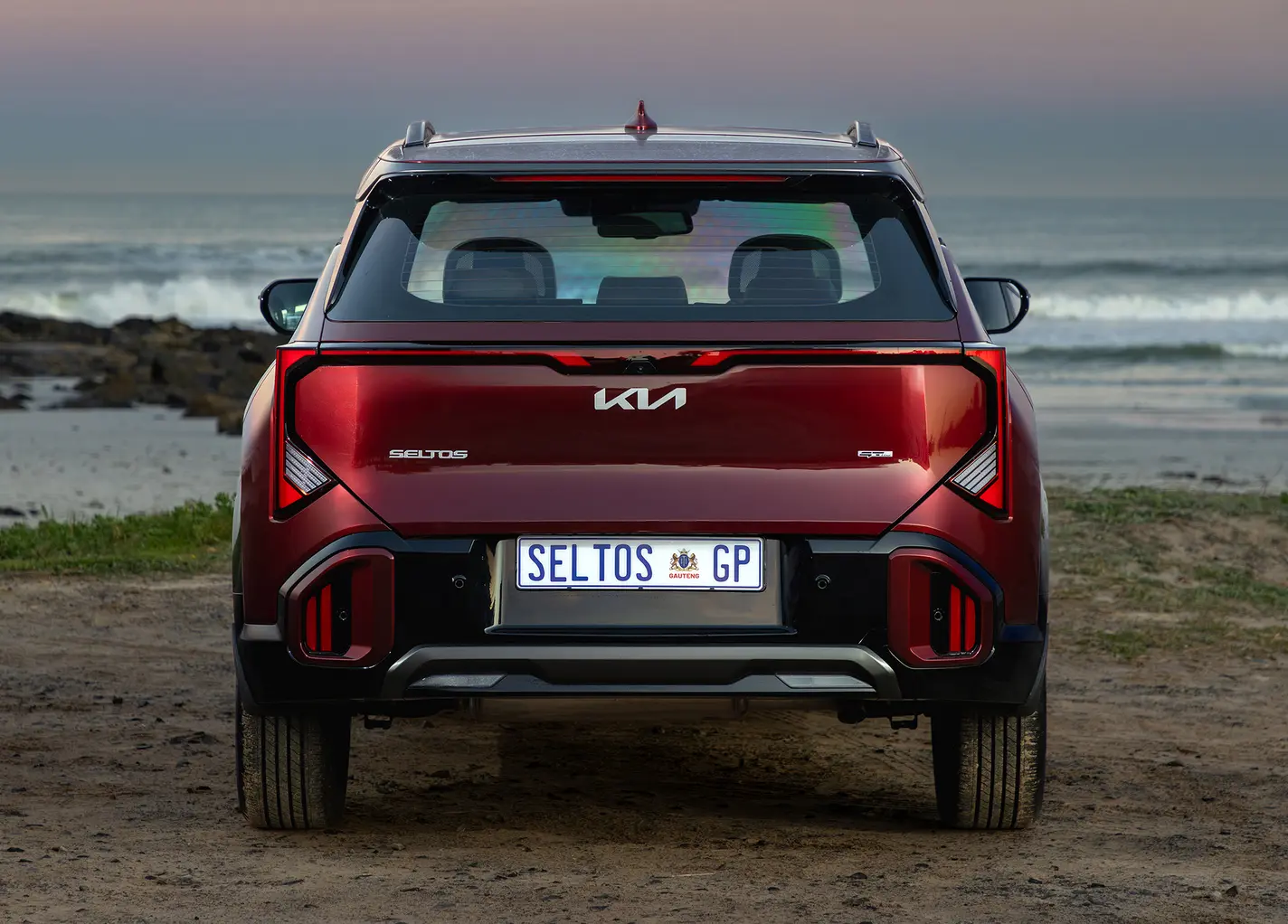

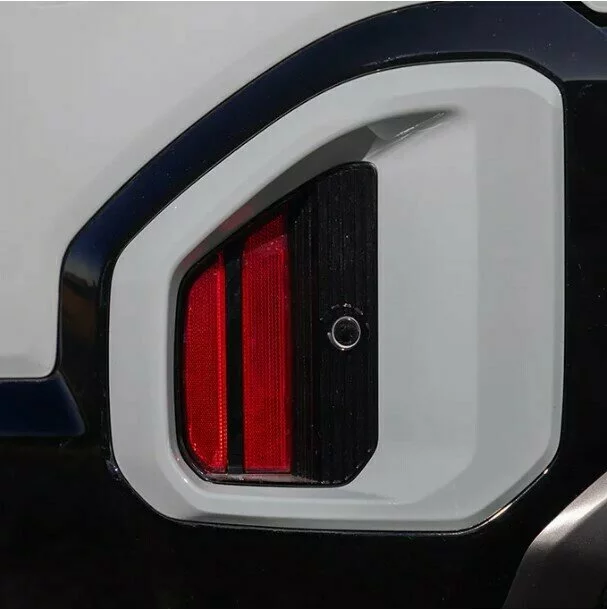

| LED Rear Combination Lamp | X | X | X | X | |||
| Mud Guards | X | X | X | X | |||

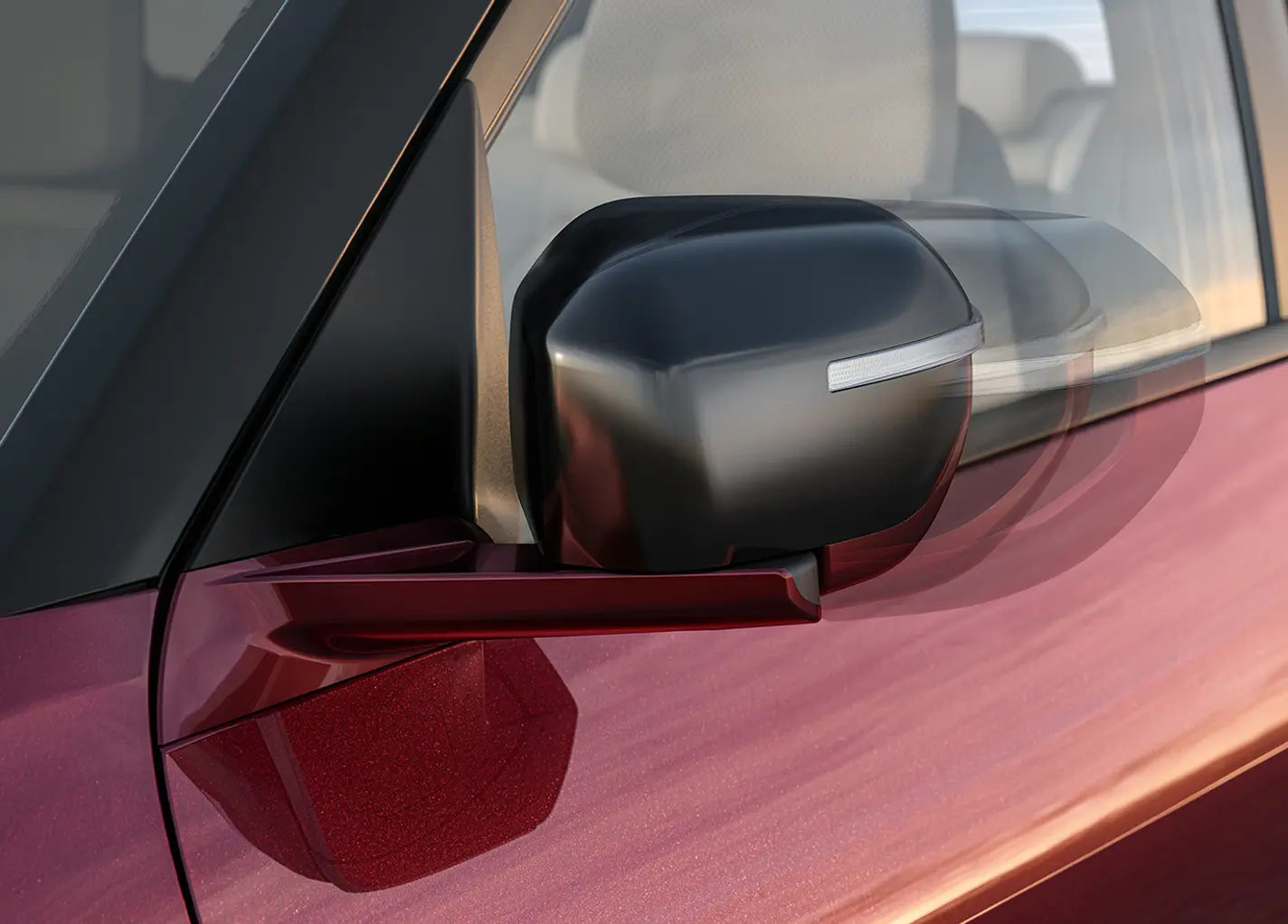

| Auto-folding Side Mirrors | X | X | X | X | |||
| Outside handle - body color | X | X | X | X | |||
| Flush exterior handles | X | X | X | X | |||
| Roof rack | X | X | X | X | |||

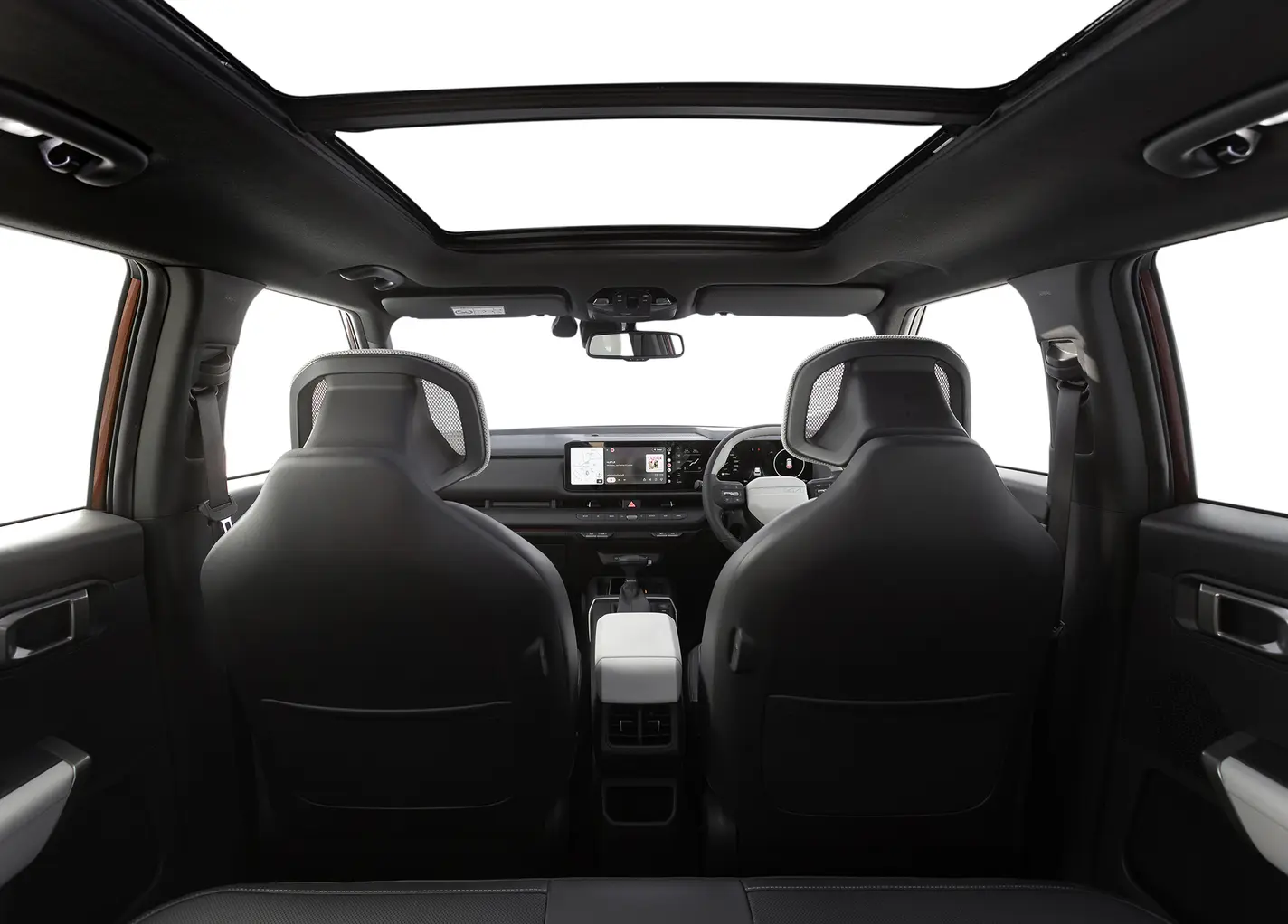

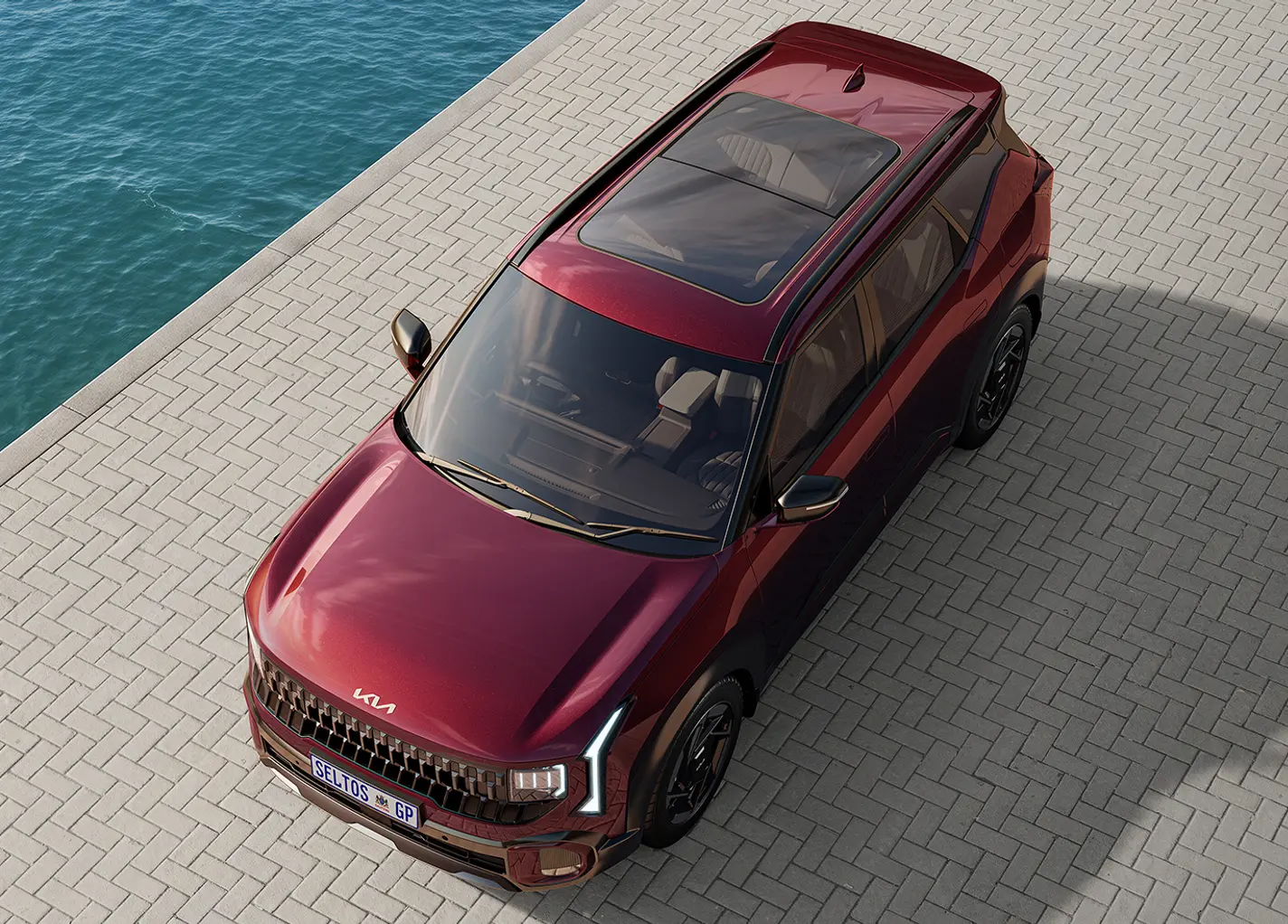

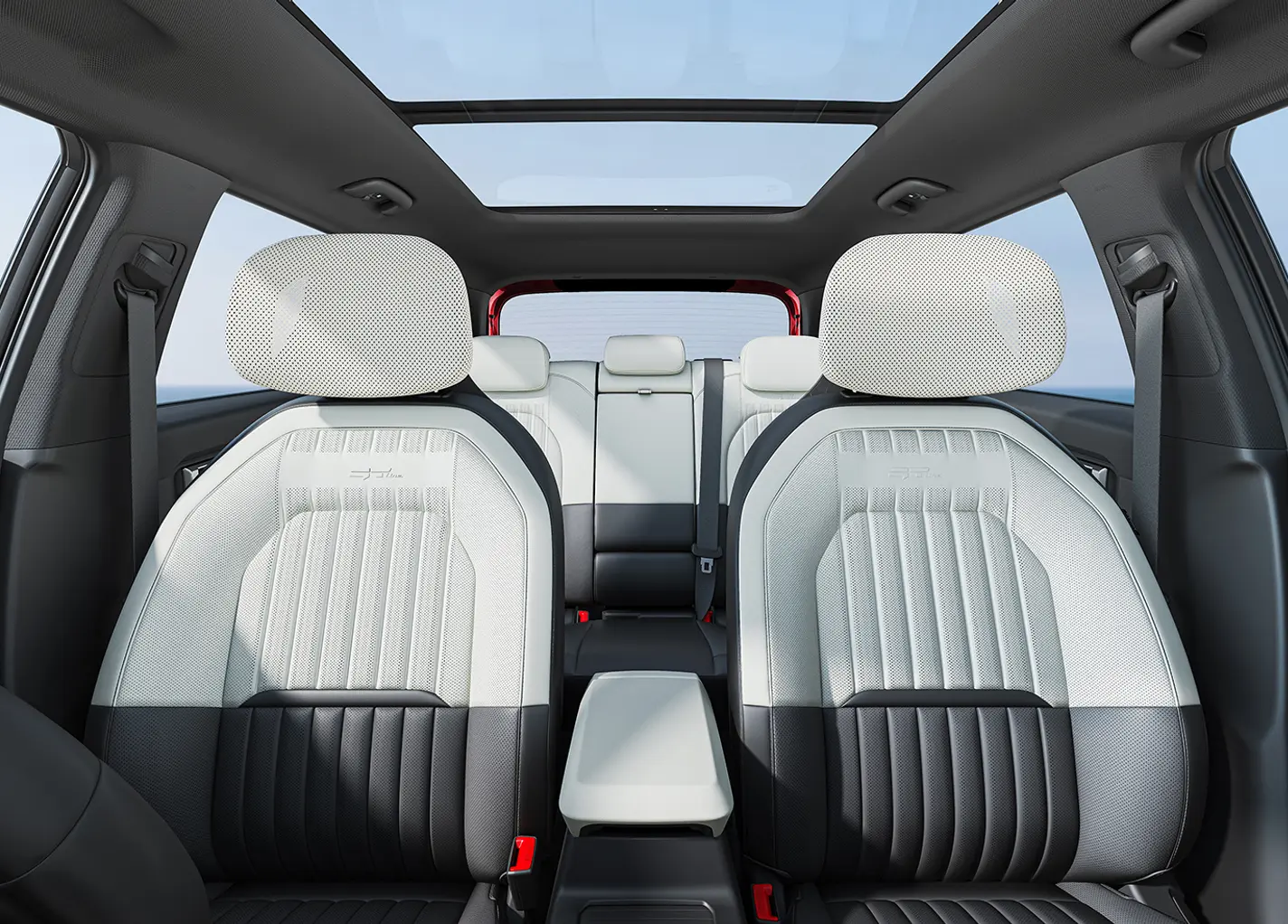

| Panoramic Sunroof | - | - | - | X | |||
| Dynamic Welcome Lights | - | - | - | - |
| Specification | 1.5 LS Man | 1.5 LS CVT | 1.5 LX CVT | 1.5 GT-Line CVT | 1.5 CRDI GT-Line AT | 1.5 T-GDI Turbo GT-Line S | 1.5 CRDI X-Line |
|---|---|---|---|---|---|---|---|
| Leg room (Front / 2nd Row) | 1.051 / 990 | 1.051 / 990 | 1.051 / 990 | 1.051 / 990 | 1.051 / 990 | 1.051 / 990 | 1.051 / 990 |
| Head room (Front / Rear) | 1,029 (978 sunroof) / 989 (958 sunroof) | 1,029 (978 sunroof) / 989 (958 sunroof) | 1,029 (978 sunroof) / 989 (958 sunroof) | 1,029 (978 sunroof) / 989 (958 sunroof) | 1,029 (978 sunroof) / 989 (958 sunroof) | 1,029 (978 sunroof) / 989 (958 sunroof) | 1,029 (978 sunroof) / 989 (958 sunroof) |
| Shoulder room (Front / Rear) | 1,435 / 1,407 | 1,435 / 1,407 | 1,435 / 1,407 | 1,435 / 1,407 | 1,435 / 1,407 | 1,435 / 1,407 | 1,435 / 1,407 |
| Luggage capacity (VDA L) | 447 / 1,436 (seats folded) | 447 / 1,436 (seats folded) | 447 / 1,436 (seats folded) | 447 / 1,436 (seats folded) | 447 / 1,436 (seats folded) | 447 / 1,436 (seats folded) | 447 / 1,436 (seats folded) |
| Specification | 1.5 LS Man | 1.5 LS CVT | 1.5 LX CVT | 1.5 GT-Line CVT | 1.5 CRDI GT-Line AT | 1.5 T-GDI Turbo GT-Line S | 1.5 CRDI X-Line |
|---|---|---|---|---|---|---|---|
| Overhead console lamp | X | X | X | X (LED) | |||
| Artificial leather steering and gear knob | - | - | - | X | |||

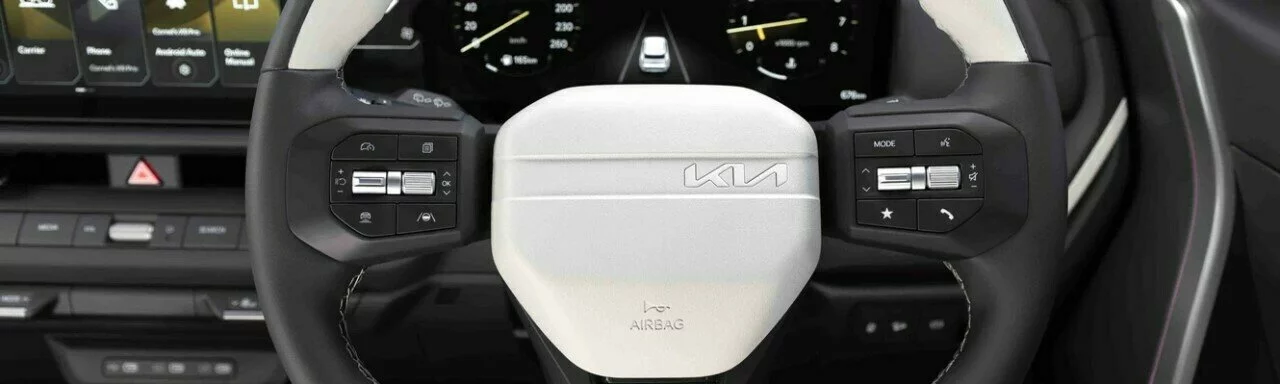

| Remote steering controls | X | X | X | X | |||
| Split Back Multi Folding Rear Seats | X | X | X | X | |||
| Sunvisor with vanity mirror - (Driver & Passenger) | X | X | X | X | |||
| Driver seat height adjustment | X | X | X | X | |||
| Seat back pocket (Driver & Passenger) | X | X | X | - | |||
| Seat back panel with pocket (Driver & Passenger) | - | - | - | X | |||

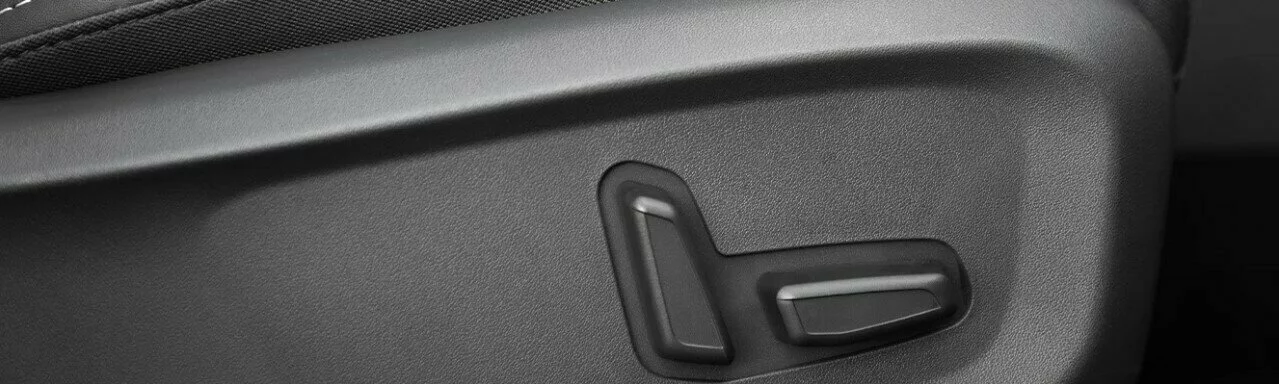

| Electric driver seat adjustment (Power driver) | - | - | - | - | |||
| Seat material | Cloth & Artificial Leather | Cloth & Artificial Leather | Cloth & Artificial Leather | Artificial Leather |
| Specification | 1.5 LS Man | 1.5 LS CVT | 1.5 LX CVT | 1.5 GT-Line CVT | 1.5 CRDI GT-Line AT | 1.5 T-GDI Turbo GT-Line S | 1.5 CRDI X-Line |
|---|---|---|---|---|---|---|---|
| Battery Saver System | X | X | X | X | X | X | X |

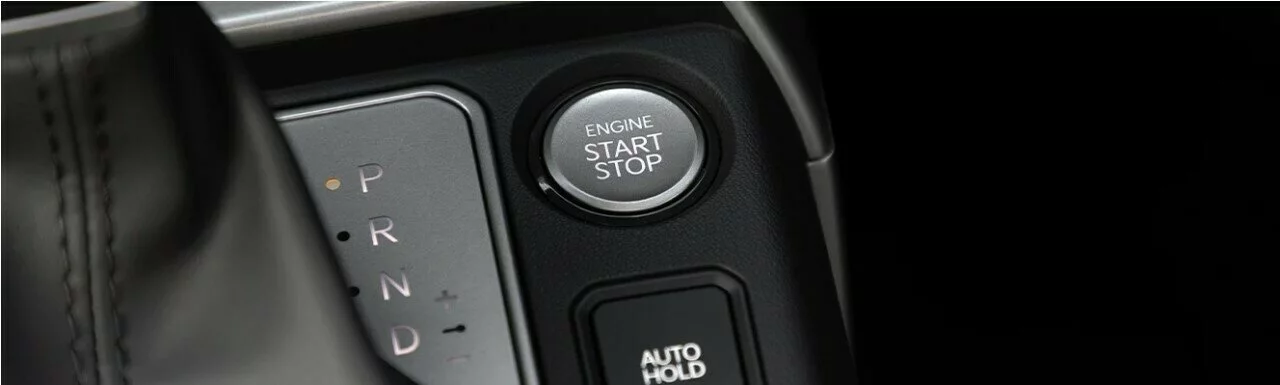

| Smart Key (FOB) with button start | Remote Cental | Remote Cental | X | X | |||
| Centre console armrest with integrated storage box | X | X | X | X | X | X | X |
| Air-Conditioner | Manual | Manual | Automatic Dual Zone | Automatic Dual Zone | |||
| Electric window control | FR/RR | FR/RR | FR/RR | FR/RR | FR/RR | FR/RR | FR/RR |
| Electric windows - Safety Control (Driver) | - | - | - | X | |||
| Cruise control (Conventional) | X | X | X | X | |||
| Smart Cruise Control with Stop & Go | - | - | - | - | |||
| Front Ventilated Seats | - | - | - | - |
| Specification | 1.5 LS Man | 1.5 LS CVT | 1.5 LX CVT | 1.5 GT-Line CVT | 1.5 CRDI GT-Line AT | 1.5 T-GDI Turbo GT-Line S | 1.5 CRDI X-Line |
|---|---|---|---|---|---|---|---|

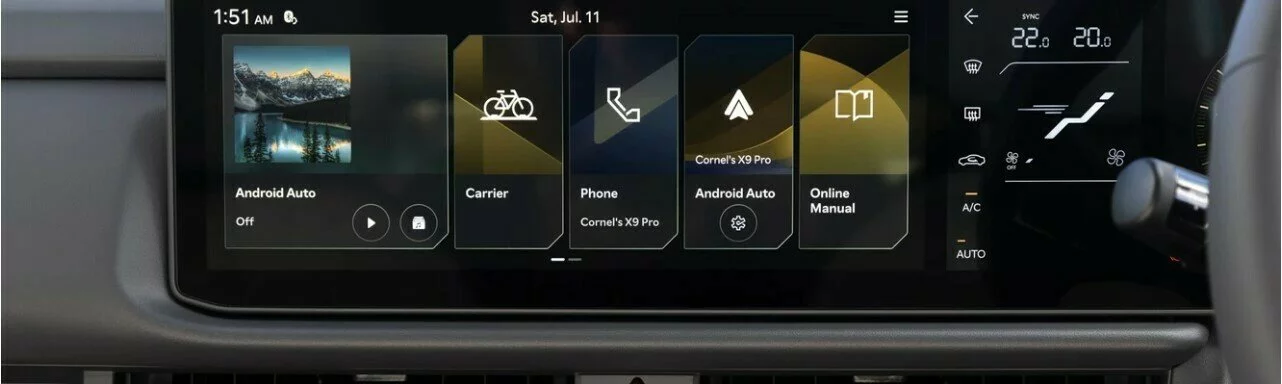

| 10,25 “ AV infotainment display | X | X | - | - | |||

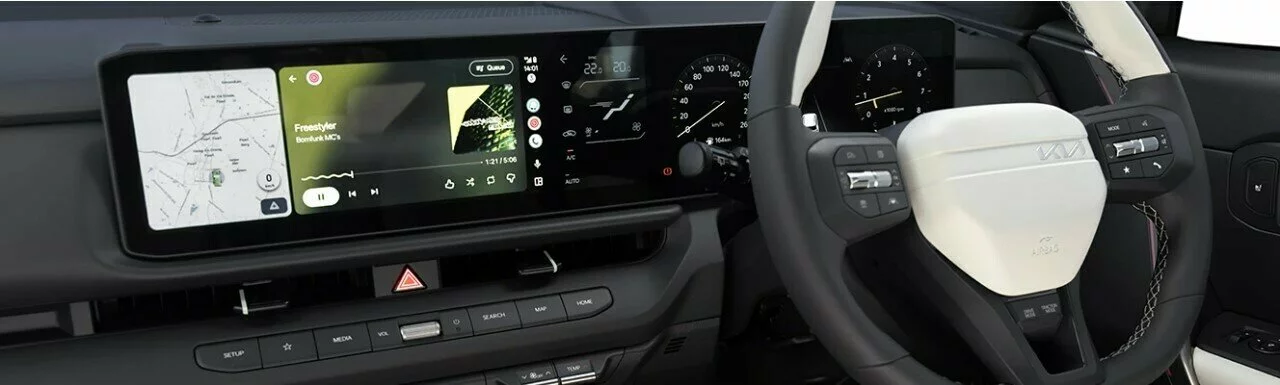

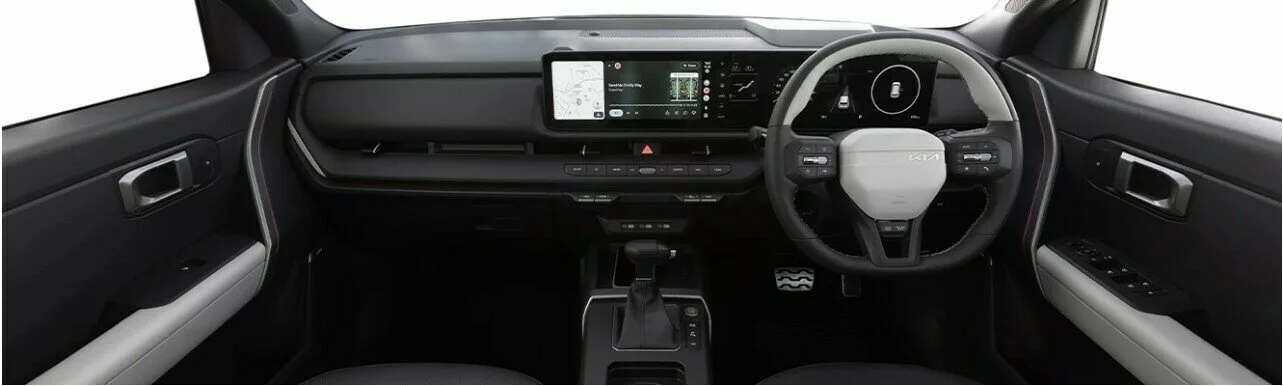

| 12.3 “ AV infotainment display | - | - | X | X | |||
| Front USB port | X | X | X | X | |||
| Wireless Apple CarPlay & Android Auto | X | X | X | X | |||
| Bluetooth W/Voice Recognition + Audio Remote Control | X | X | X | X | |||
| Front USB Port | X | X | X | X | |||
| Front USB Charge Ports | X | X | X | X | |||
| Front Seat USB Charge Ports | X | X | X | X | |||

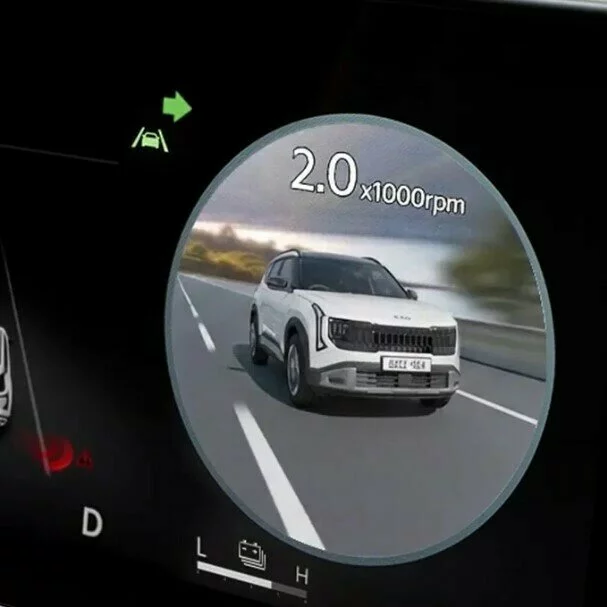

| Supervision 4” intergrated TFT LCD cluster | X | X | - | - | |||
| Supervision 4” TFT + 5" Segment (CDU) intergrated LCD | - | - | X | X | |||
| Digital 12” TFT intergrated LCD cluster display | - | - | - | - | |||

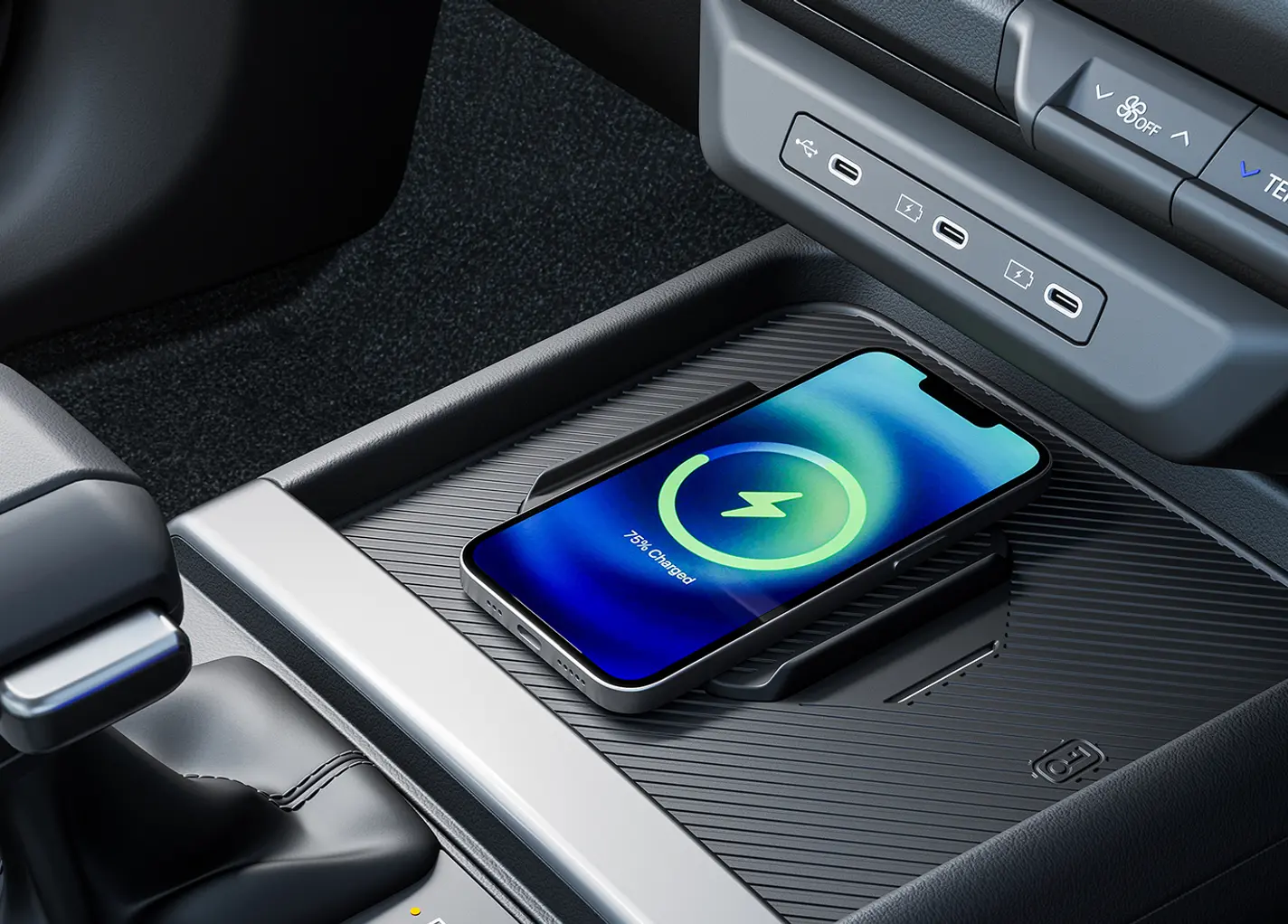

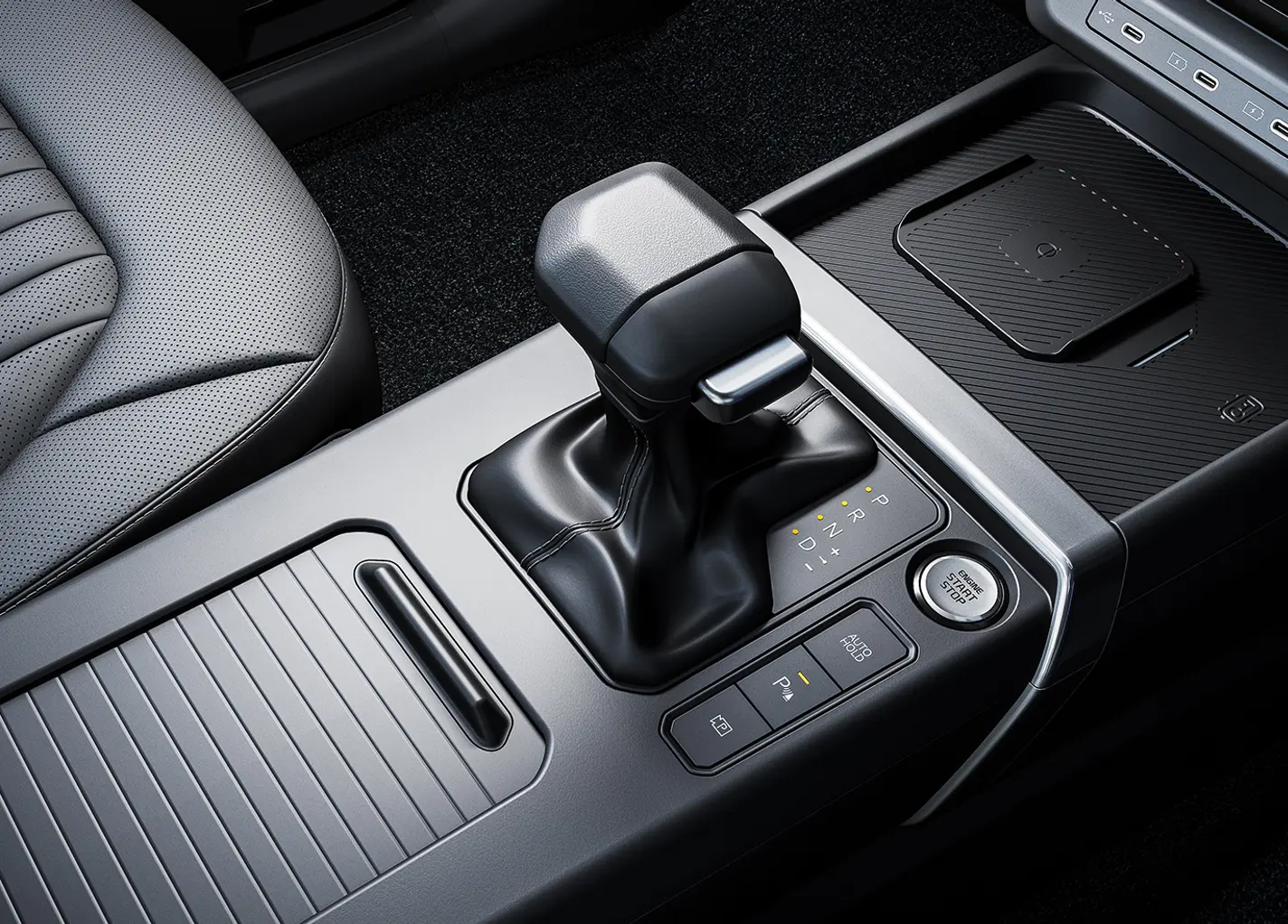

| Wireless Charger for Smart Phone | - | - | - | X | |||
| Speakers + Tweeter | 6 | 6 | 6 | 6 | |||

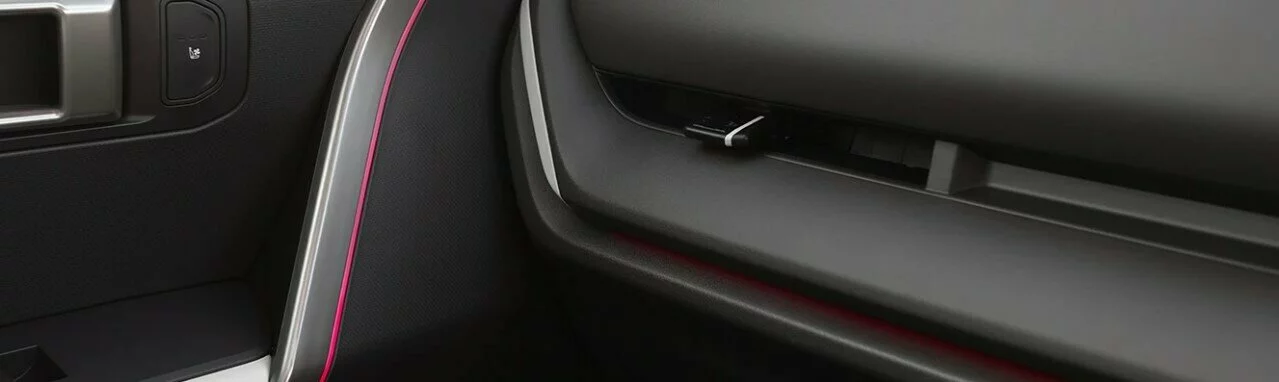

| Ambient mood lighting | - | - | - | X | |||
| Speakers and Tweeters with External Amplifier + Centre(Front) | - | - | - | - | |||

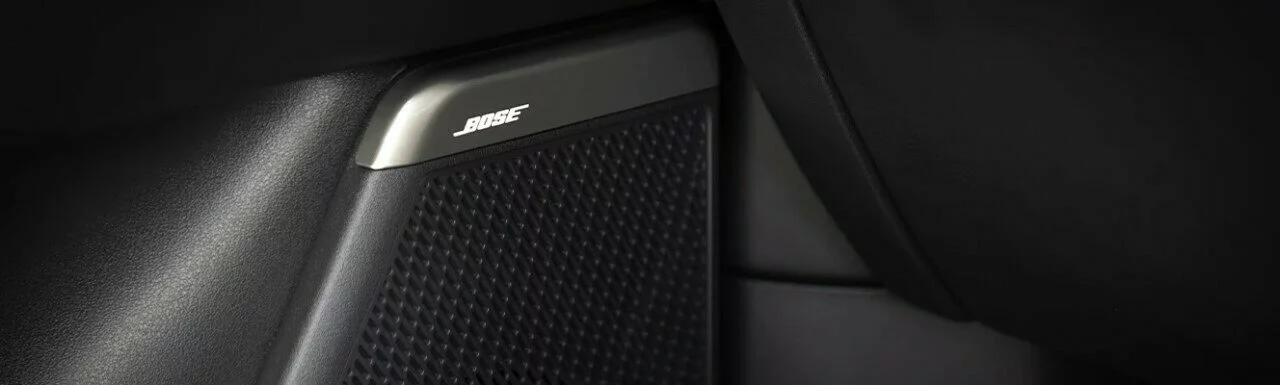

| Bose Premium Sound System | - | - | - | - |
| Specification | 1.5 LS Man | 1.5 LS CVT | 1.5 LX CVT | 1.5 GT-Line CVT | 1.5 CRDI GT-Line AT | 1.5 T-GDI Turbo GT-Line S | 1.5 CRDI X-Line |
|---|---|---|---|---|---|---|---|
| ABS (Anti-lock Braking System) | X | X | X | X | X | X | X |
| ESC (Electronic Stability Control) | X | X | X | X | X | X | X |
| HAC (Hill Start Assist Control) | X | X | X | X | X | X | X |
| DBC (Down-hill Brake Control) | X | X | X | X | X | X | X |
| Airbags | Driver & Passenger Front + Front Thorax & Pelivs + Curtain | Driver & Passenger Front + Front Thorax & Pelivs + Curtain | Driver & Passenger Front + Front Thorax & Pelivs + Curtain | Driver & Passenger Front + Front Thorax & Pelivs + Curtain | Driver & Passenger Front + Front Thorax & Pelivs + Curtain | Driver & Passenger Front + Front Thorax & Pelivs + Curtain | Driver & Passenger Front + Front Thorax & Pelivs + Curtain |
| Data Dot | X | X | X | X | X | X | X |
| Central locking with immobiliser | X | X | X | X | X | X | X |
| Rear View Camera | X | X | X | X | X | X | X |
| Isofix (child anchors) | X | X | X | X | X | X | X |
| Child Lock (Manual) | X | X | X | X | X | X | X |
| TPMS (Tyre Pressure Monitoring System) | X | X | X | X | X | X | X |
| Seat belt height adjustment | - | - | X | X | |||
| MSLA (Manual Speed Limit Assist) | - | - | X | X | |||
| PDW (Parking Distance Warning) | Rear | Rear | Front & Rear | Front & Rear | |||
| EPB (Electric Parking Brake with Auto Hold Function) | (- MT)/(X AT) | (- MT)/(X AT) | X | X | |||
| BCA (Blind-Spot Collision-Avoidance Assist); Rear | - | - | - | - | |||
| LKA (Lane Keeping Assist); Line/Road-Edge | - | - | - | - | |||
| FCA (Forward Collision-Avoidance Assist) | - | - | - | - | |||
| LFA (Lane Following Assist) | - | - | - | - |
