| Specification | 1.0 LS | 1.0 LX | 1.2 EX | 1.2 EX+ |
|---|---|---|---|---|
| Engine Type | In-line 3 Cylinder, 12-Valve DOHC | In-line 3 Cylinder, 12-Valve DOHC | In-line 4 Cylinder, 16-Valve DOHC | In-line 4 Cylinder, 16-Valve DOHC |
| Displacement (cc) | 998 | 998 | 1197 | 1197 |
| Fuel Supply System | Multi Point Injection (MPI) | Multi Point Injection (MPI) | Multi Point Injection (MPI) | Multi Point Injection (MPI) |
| Maximum Power | 49 kW @ 5,500 rpm | 49 kW @ 5,500 rpm | 62 kW @ 6,000 rpm | 62 kW @ 6,000 rpm |
| Maximum Torque | 95 Nm @ 3,750 rpm | 95 Nm @ 3,750 rpm | 122 Nm @ 4,000 rpm | 122 Nm @ 4,000 rpm |
| Compression Ratio | 10.5 : 1 | 10.5 : 1 | 10.5 : 1 | 10.5 : 1 |
| Bore x Stroke (mm) | 71.0 x 84.0 | 71.0 x 84.0 | 71.0 x 78.8 | 71.0 x 78.8 |

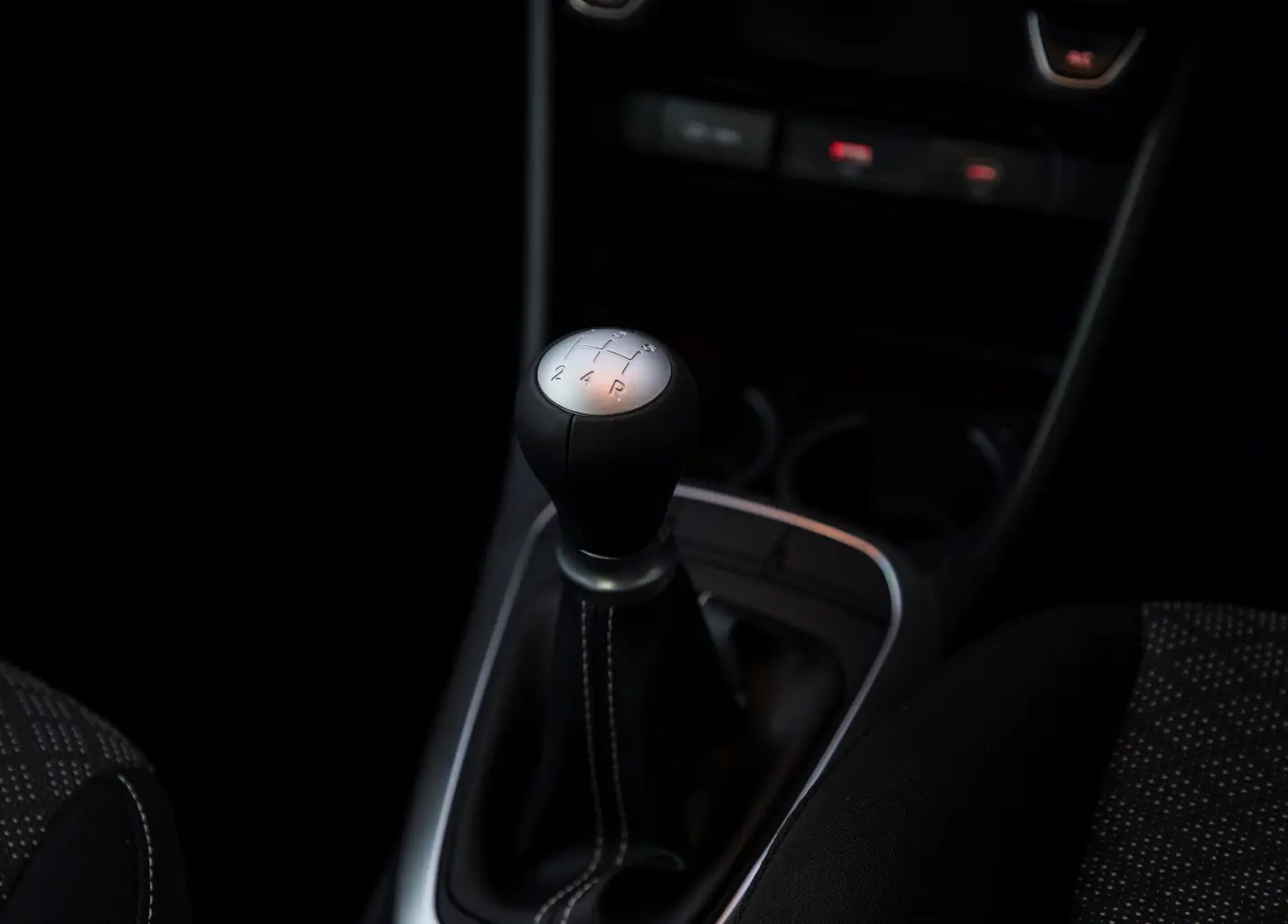

| Transmission | 5-Speed Manual / 4-Speed Automatic | 5-Speed Manual / 4-Speed Automatic | 5-Speed Manual / 4-Speed Automatic | 5-Speed Manual / 4-Speed Automatic |
| Maximum Speed (km/h) (MT / AT) | 155 / 149 | 155 / 149 | 170 / 160 | 170 / 160 |
| Fuel Type | Unleaded Petrol | Unleaded Petrol | Unleaded Petrol | Unleaded Petrol |
| Specification | 1.0 LS | 1.0 LX | 1.2 EX | 1.2 EX+ |
|---|---|---|---|---|
| Overall Length x Width x Height (mm) | 3595 x 1595 x 1495 | 3595 x 1595 x 1495 | 3595 x 1595 x 1495 | 3595 x 1595 x 1495 |
| Overhang Front / Rear (mm) | 675 / 520 | 675 / 520 | 675 / 520 | 675 / 520 |
| Minimum Ground Clearance (mm) | 151 | 151 | 151 | 151 |
| Curb Weight (kg) (MT / AT) | 957 / 979 | 957 / 979 | 962 / 985 | 962 / 985 |
| Gross Vehicle Mass (GVM) (kg) | 1370 (MT) / 1380 (AT) | 1370 (MT) / 1380 (AT) | 1370 (MT) / 1380 (AT) | 1370 (MT) / 1380 (AT) |
| Fuel Tank Capacity (L) | 35 | 35 | 35 | 35 |

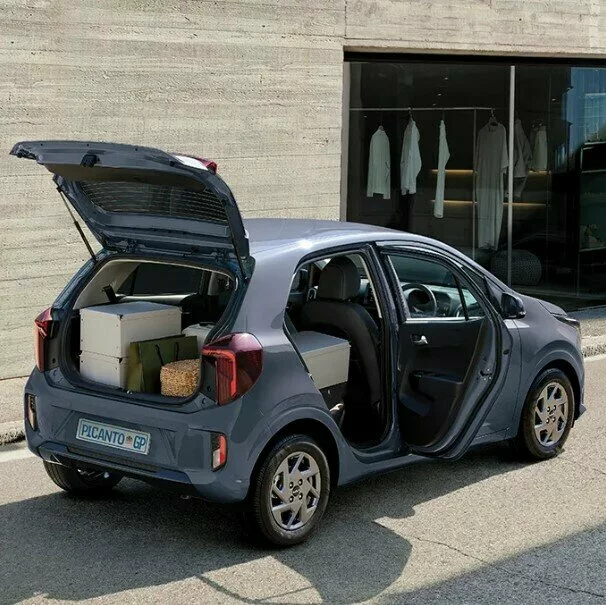

| Cargo Area Capacity - Seat Up (VDA, L) | 255 | 255 | 255 | 255 |
| Specification | 1.0 LS | 1.0 LX | 1.2 EX | 1.2 EX+ |
|---|---|---|---|---|
| Steering Type | Motor Driven Power Steering (MDPS) | Motor Driven Power Steering (MDPS) | Motor Driven Power Steering (MDPS) | Motor Driven Power Steering (MDPS) |
| Front Brakes | Disc (256 mm) | Disc (256 mm) | Disc (256 mm) | Disc (256 mm) |
| Rear Brakes | Drum (203.2 mm) | Drum (203.2 mm) | Drum (203.2 mm) | Drum (203.2 mm) |
| Front Suspension | MacPherson Strut | MacPherson Strut | MacPherson Strut | MacPherson Strut |
| Rear Suspension | Coupled Torsion Beam Axle | Coupled Torsion Beam Axle | Coupled Torsion Beam Axle | Coupled Torsion Beam Axle |
| Specification | 1.0 LS | 1.0 LX | 1.2 EX | 1.2 EX+ |
|---|---|---|---|---|

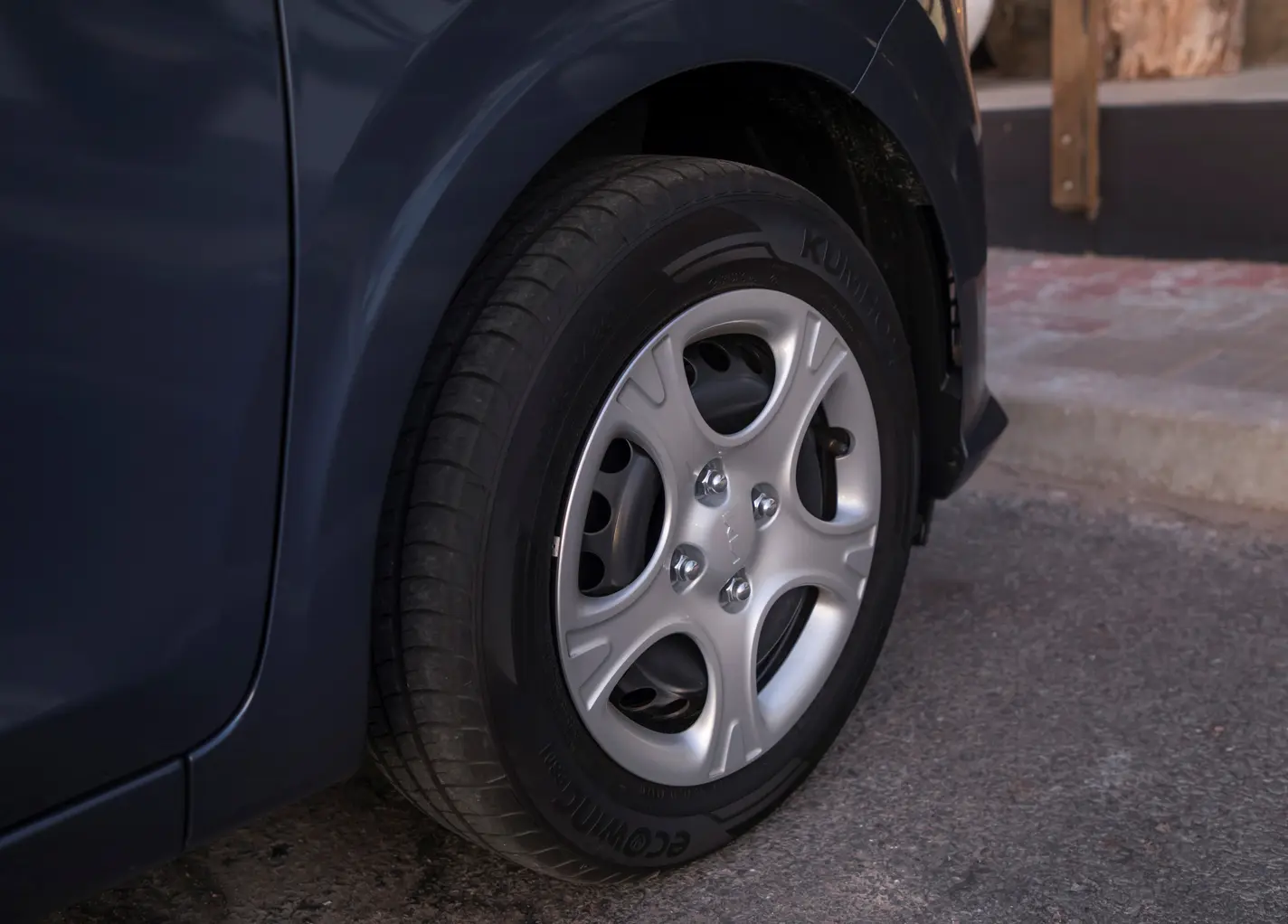

| Wheels | 14" Steel | 14" Steel | 14" Alloy | 15" Alloy |
| Tyre Size | 175/65 R14 | 175/65 R14 | 175/65 R14 | 185/55 R15 |
| Wheel Tread Front / Rear (mm) | 1403 / 1414 | 1403 / 1414 | 1403 / 1414 | 1391 / 1402 |
| Specification | 1.0 LS | 1.0 LX | 1.2 EX | 1.2 EX+ |
|---|---|---|---|---|
| Airbags | Driver & Passenger | Driver & Passenger | Driver & Passenger | Driver & Passenger |
| Data Dot | • | • | • | • |
| ISOFIX Child Seat Anchors | • | • | • | • |
| Anti-Lock Braking System (ABS) | • | • | • | • |
| Electronic Stability Control (ESC) | - | - | • | • |
| Hill-Start Assist Control (HAC) | - | - | • | • |
| Specification | 1.0 LS | 1.0 LX | 1.2 EX | 1.2 EX+ |
|---|---|---|---|---|

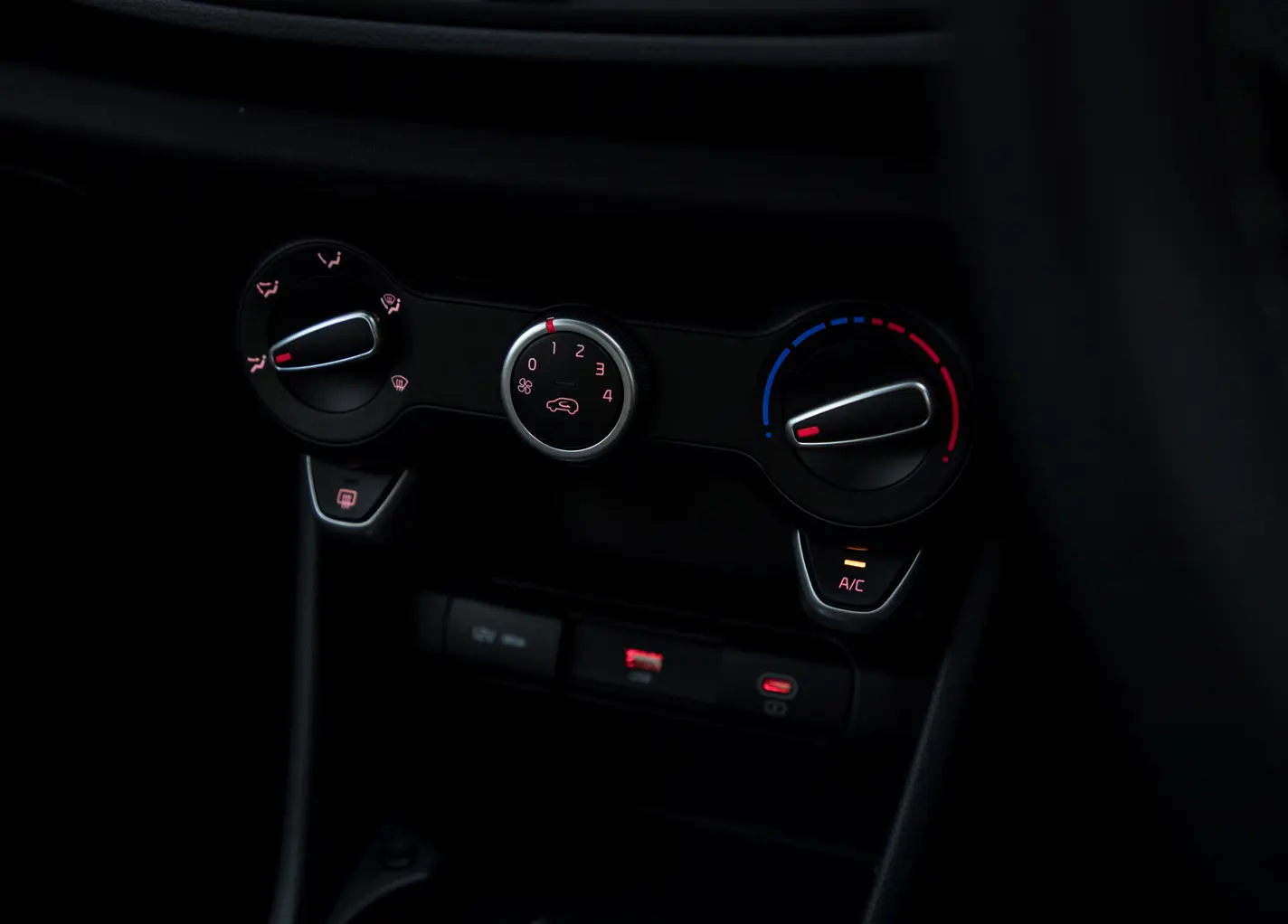

| Air-Conditioner | Manual | Manual | Manual | Automatic Climate Control |
| Motor Driven Power Steering | • | • | • | • |
| Body-Coloured Bumpers | • | • | • | • |
| Tilt-Adjustable Steering | • | • | • | • |

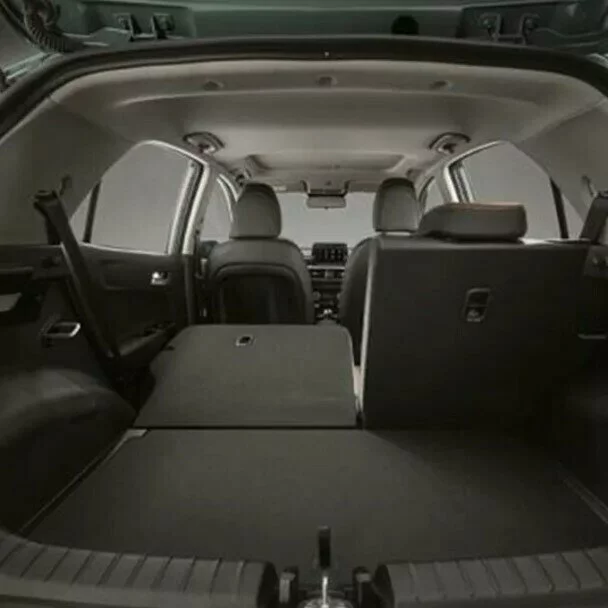

| 60:40 Split Rear Folding Seats | - | • | • | • |
| Adjustable Headrests (Up/Down) | • | • | • | • |
| Trip Computer | • | • | • | • |
| High-Mounted Stop Lamp | • | • | • | • |

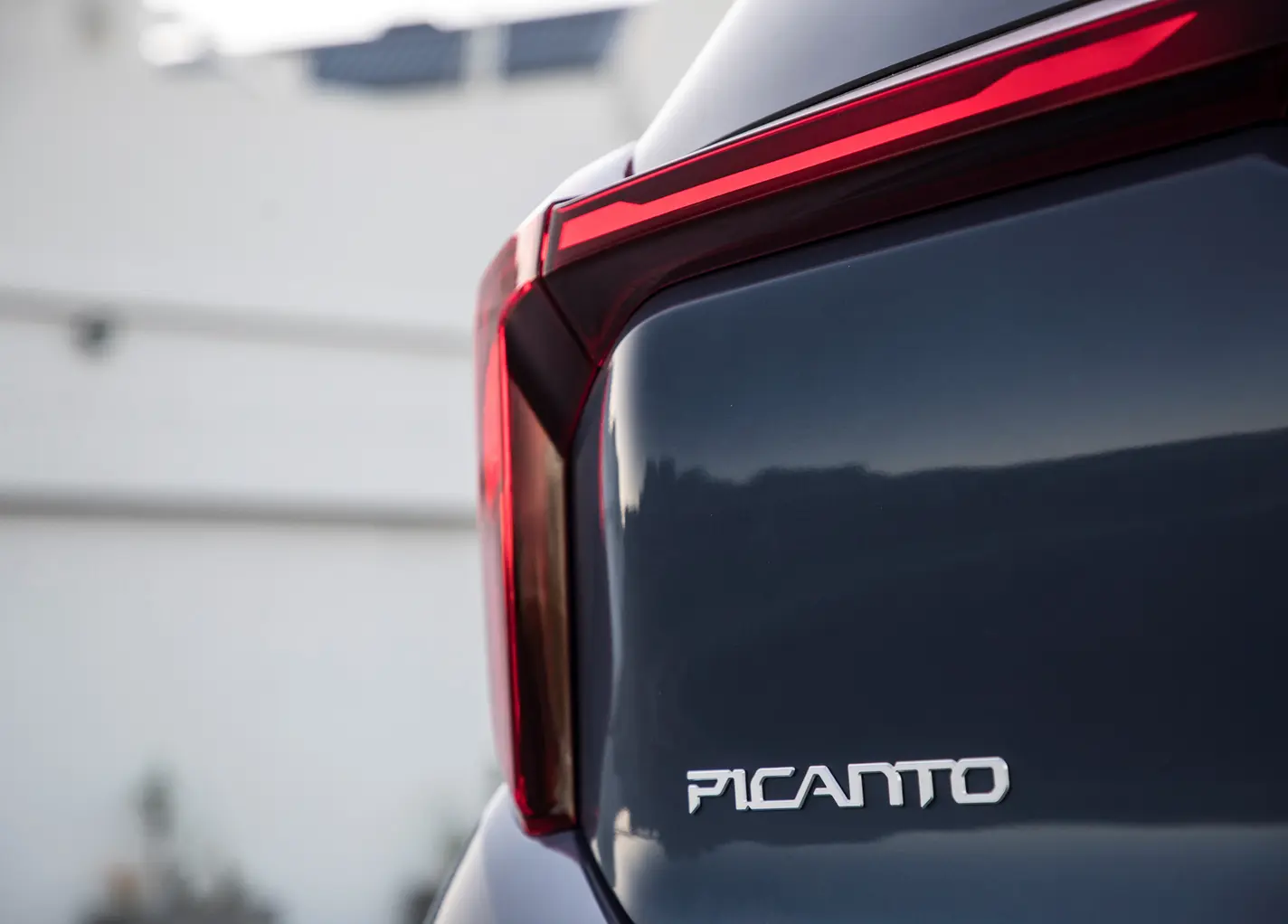

| Rear Combination Lamps | Bulb | Bulb | Bulb | LED |

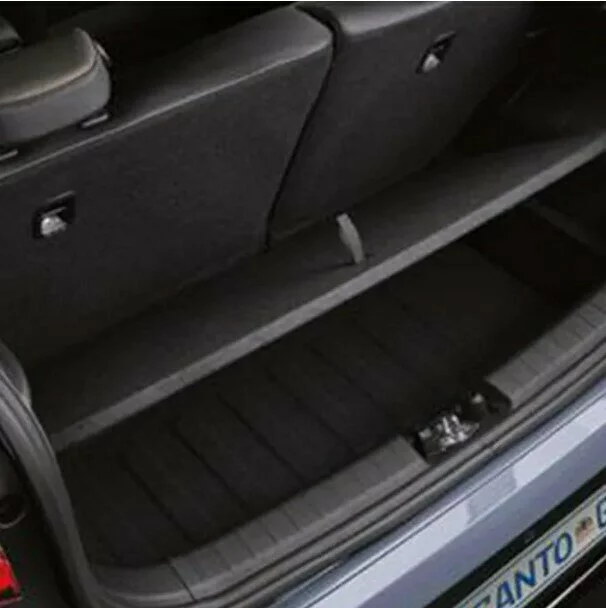

| Covering Shelf Trim | • | • | • | • |
| Luggage Hook | • | • | • | • |
| Driver Seat Height Adjuster | • | • | • | • |
| Electric Heated Side Mirrors | • | • | • | • |
| Electric Windows (Front & Rear) | • (W/O Safety Auto) | • (W/ Driver Auto Up/Down) | • (W/ Driver Auto Up/Down) | • (W/ Driver Auto Up/Down) |
| Leather Steering Wheel & Gear Knob | - | • | • | • |
| Keyless Entry (Folding Key) | • | • | • | • |
| Rear View Camera with Parking Guidance | • | • | • | • |
| Driver & Passenger Vanity Mirrors | • | • | • | • |
| Automatic Light Control | - | - | • | • |
| Electric Folding Mirrors & Side Indicator | - | - | • | • |

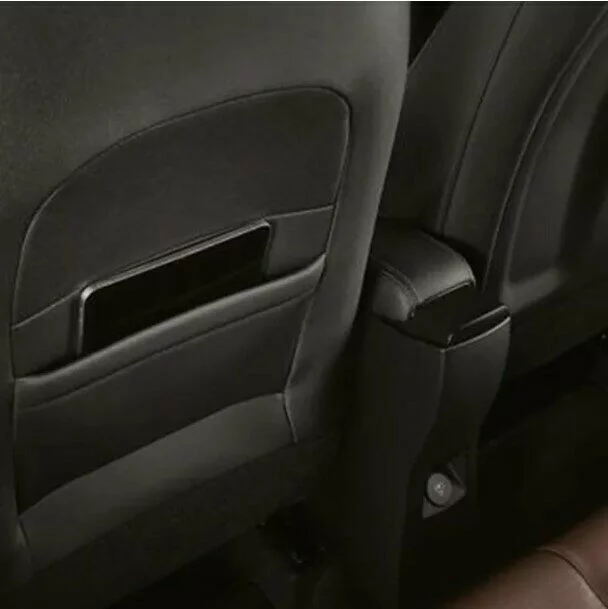

| Seat Back Pockets | - | - | • | • |
| Rear Occupant Alert | - | - | • | • |
| Mud Guards | - | - | • | • |

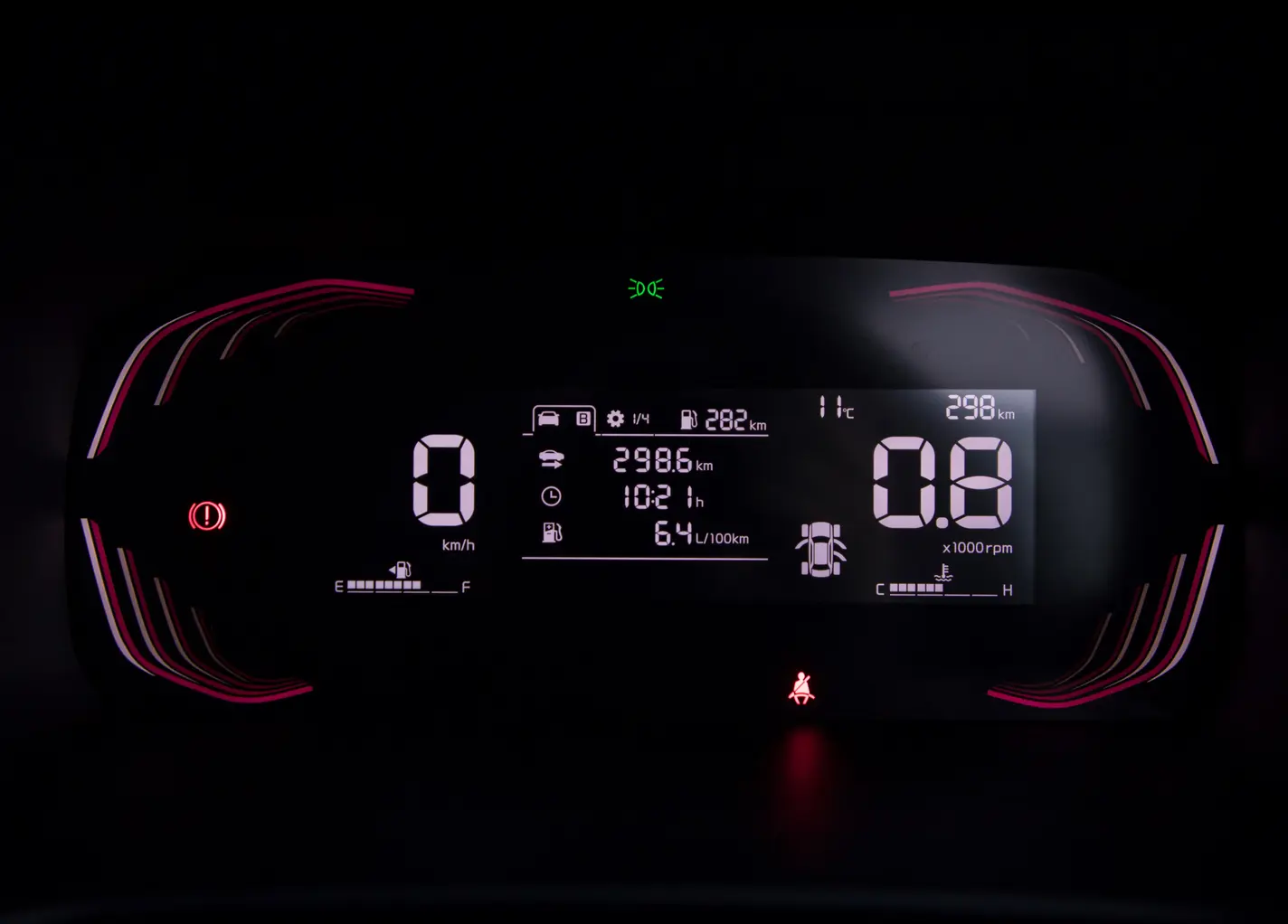

| Supervision Cluster 4.2" TFT LCD | - | - | • | • |
| Storage Box & Tweeters | - | - | • | • |
| Smart Key & Start/Stop Button | - | - | - | • |
| Rear Parking Distance Warning (PDC) | - | - | - | • |
| Leather Seats | - | - | - | • |
| Illuminated Driver Vanity Mirror | - | - | - | • |
| High Gloss Centre Fascia | - | - | - | • |
| Solar Windshield Glass + Tinted Front Door Glass | - | - | - | • |
| Specification | 1.0 LS | 1.0 LX | 1.2 EX | 1.2 EX+ |
|---|---|---|---|---|

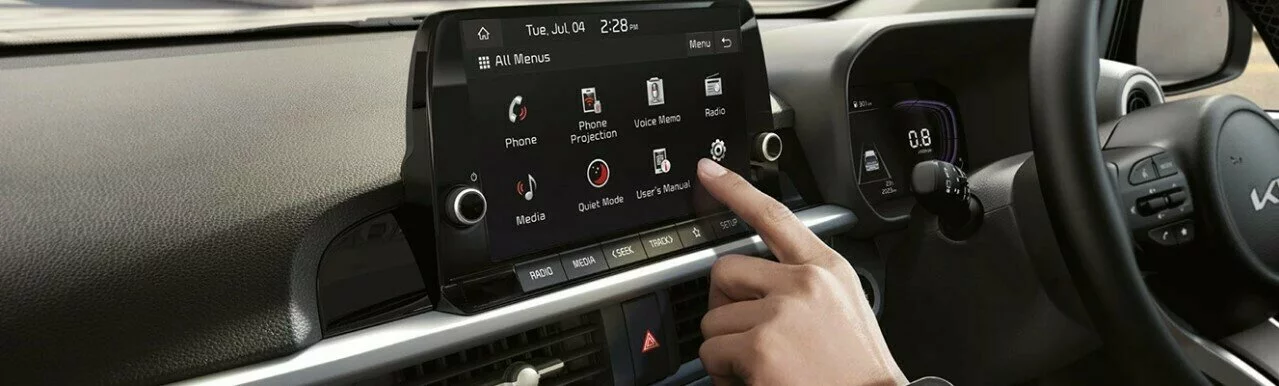

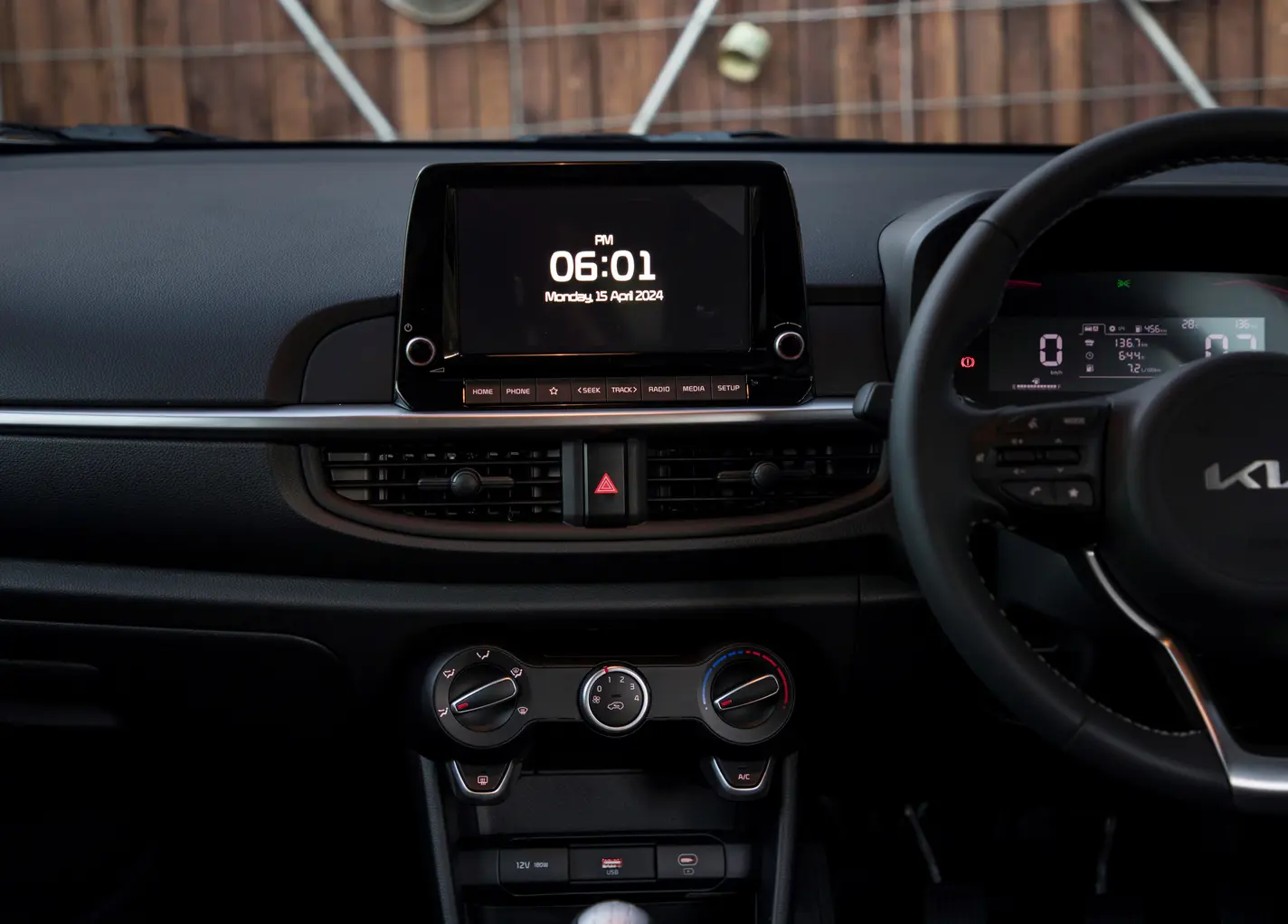

| Infotainment System | 8-inch Touchscreen Audio Display | 8-inch Touchscreen Audio Display | 8-inch Touchscreen Audio Display | 8-inch Touchscreen Audio Display |
| Wireless Apple CarPlay & Android Auto | • | • | • | • |
| Bluetooth with Voice Recognition | • | • | • | • |

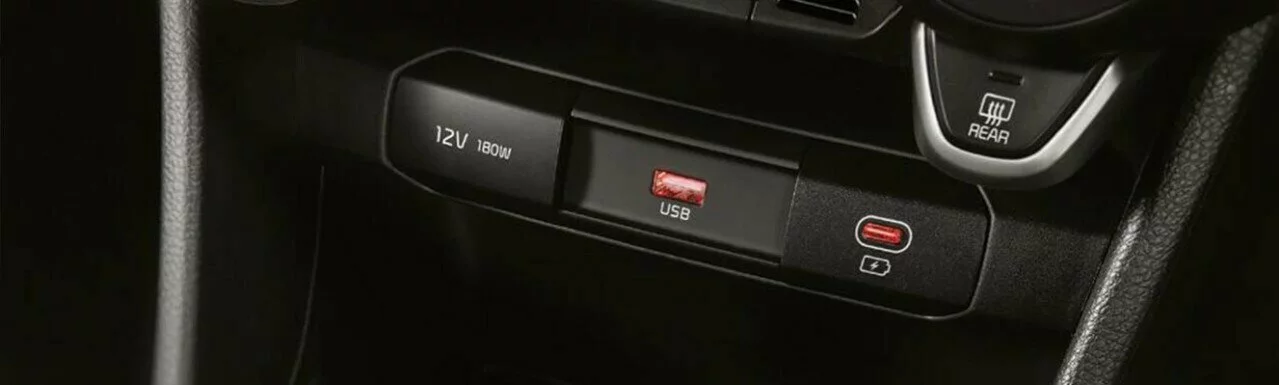

| USB Charging Port | • | • | • | • |

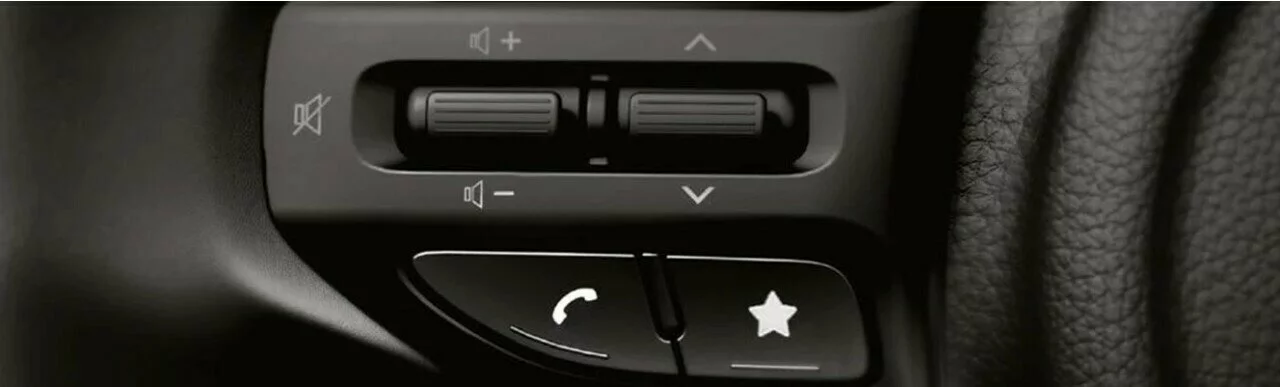

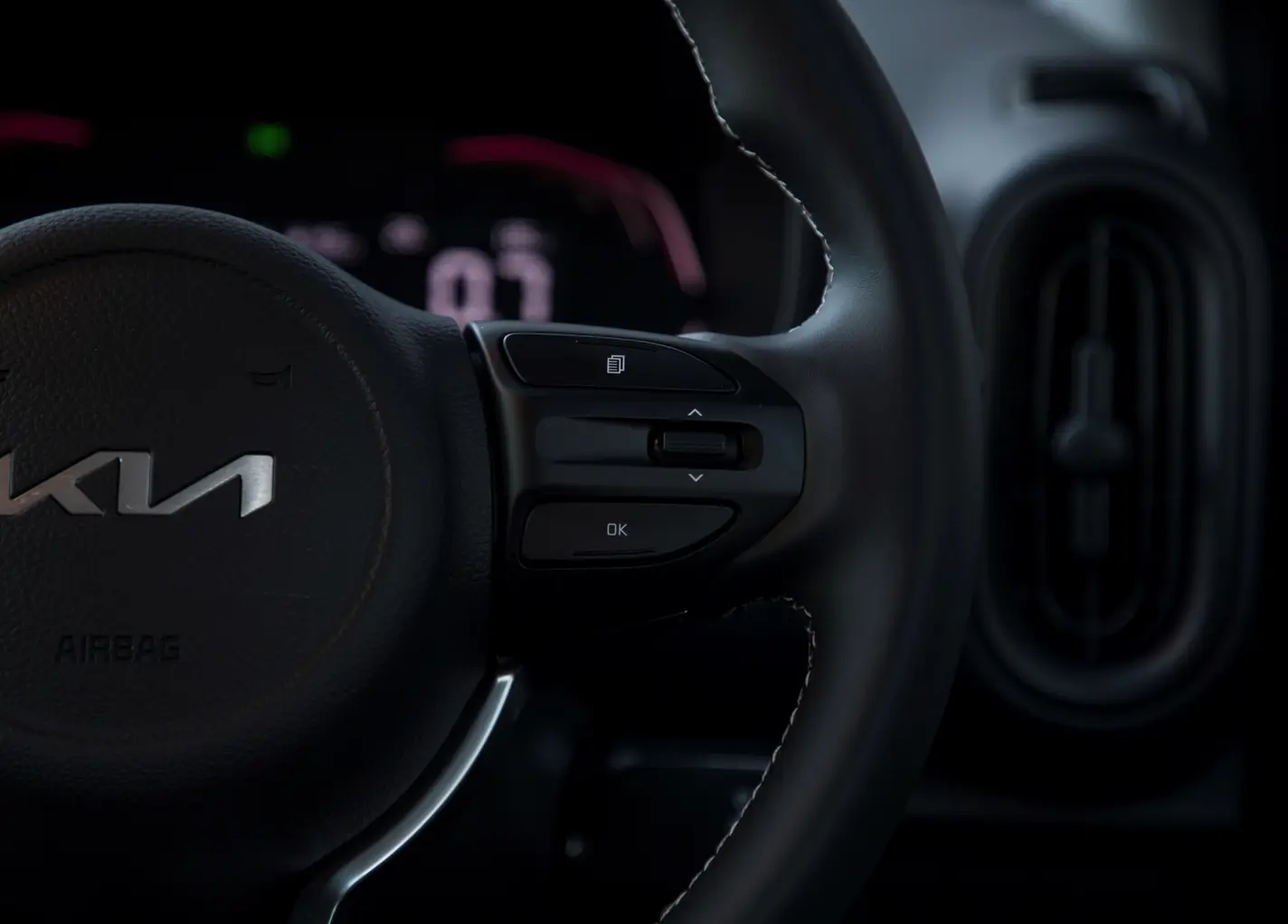

| Steering Wheel Remote Controls | • | • | • | • |
| Speakers | 4 Speakers | 4 Speakers | 4 Speakers + 2 Tweeters | 4 Speakers + 2 Tweeters |
| Specification | 1.0 LS | 1.0 LX | 1.2 EX | 1.2 EX+ |
|---|---|---|---|---|
| Warranty | 5 Years / Unlimited Kilometre | 5 Years / Unlimited Kilometre | 5 Years / Unlimited Kilometre | 5 Years / Unlimited Kilometre |
| Roadside Assistance | 5 Years / Unlimited Kilometre | 5 Years / Unlimited Kilometre | 5 Years / Unlimited Kilometre | 5 Years / Unlimited Kilometre |
| Service Plan | Optional | 2 Years / 30 000 km | 2 Years / 30 000 km | 2 Years / 30 000 km |
