| Specification | K2500 |
|---|---|

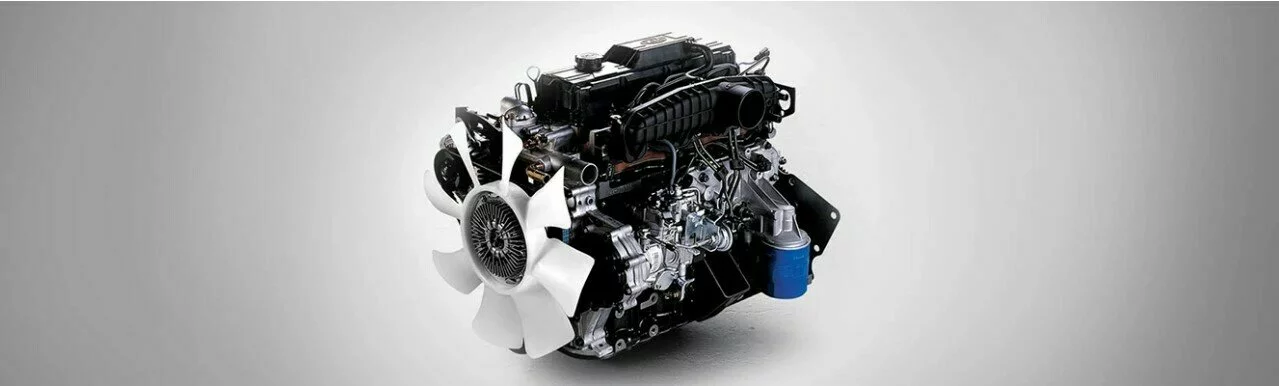

| Engine Type | In-line 4 Cylinder, DOHC 16-Valve Turbocharged Diesel |
| Displacement (cc) | 2497 |
| Fuel Supply System | Commonrail Diesel |
| Maximum Power | 96 kW @ 3,800 rpm |
| Maximum Torque | 255 Nm @ 1,500 - 3,500 rpm |
| Compression Ratio | 16.4 : 1 |
| Bore x Stroke (mm) | 91.0 x 96.0 |
| Maximum Speed | 142 km/h |
| Fuel Type | Diesel (10ppm / 50ppm / 500ppm) |
| Specification | K2500 |
|---|---|
| Transmission | 6-Speed Manual |
| Steering Type | Hydraulic Power Steering (HPS), Rack & Pinion |
| Minimum Turning Radius (m) | 5.03 |
| Specification | K2500 |
|---|---|
| Overall Dimensions (L x W x H) (mm) | 4825 x 1740 x 1995 |
| Overhang Front / Rear (mm) | 1205 / 1205 |
| Wheelbase (mm) | 2415 |
| Minimum Ground Clearance (mm) | 200 |
| Curb Weight (kg) | 1670 - 1715 |
| Gross Vehicle Mass (GVM) (kg) | 2980 |
| Loading Capacity (kg) | 1000 |
| Towing Mass Braked / Unbraked (kg) | 1400 / 700 |
| Fuel Tank Capacity (L) | 65 |

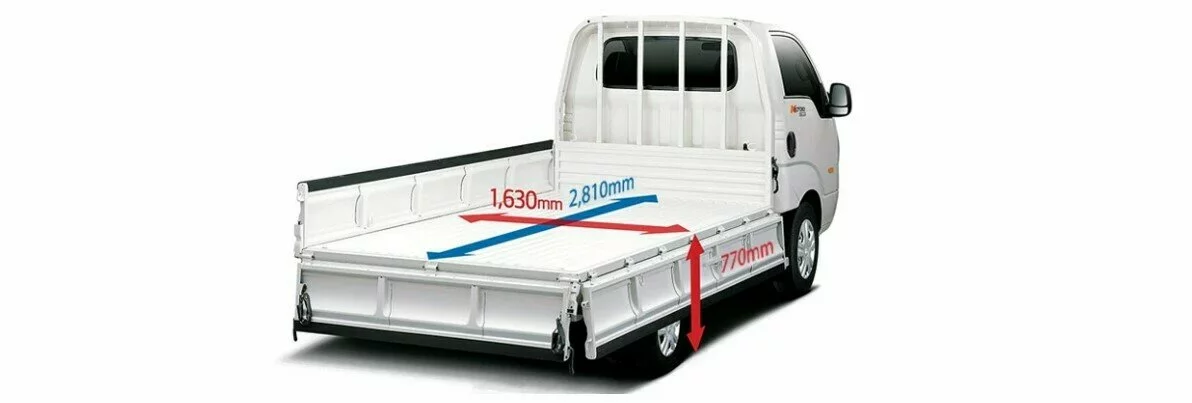

| Cargo Deck Dimensions (L x W x H mm) | 2810 x 1630 x 355 |
| Specification | K2500 |
|---|---|
| Front Brakes | Disc (278 mm) |
| Rear Brakes | Drum (260 mm) |
| Front Suspension | Torsion Bar Spring |
| Rear Suspension | Multi-Leaf Spring |
| Specification | K2500 |
|---|---|
| Wheels | 5.5 J x 15" Steel |
| Tyre Size | 195/R15 - 8PR |
| Spare Wheel | Temporary Spare Wheel |
| Specification | K2500 |
|---|---|
| Power Steering | • |
| Electric Windows | • |
| Remote Central Locking | • |
| Lockable Fuel Inlet | • |
| Data Dot | • |

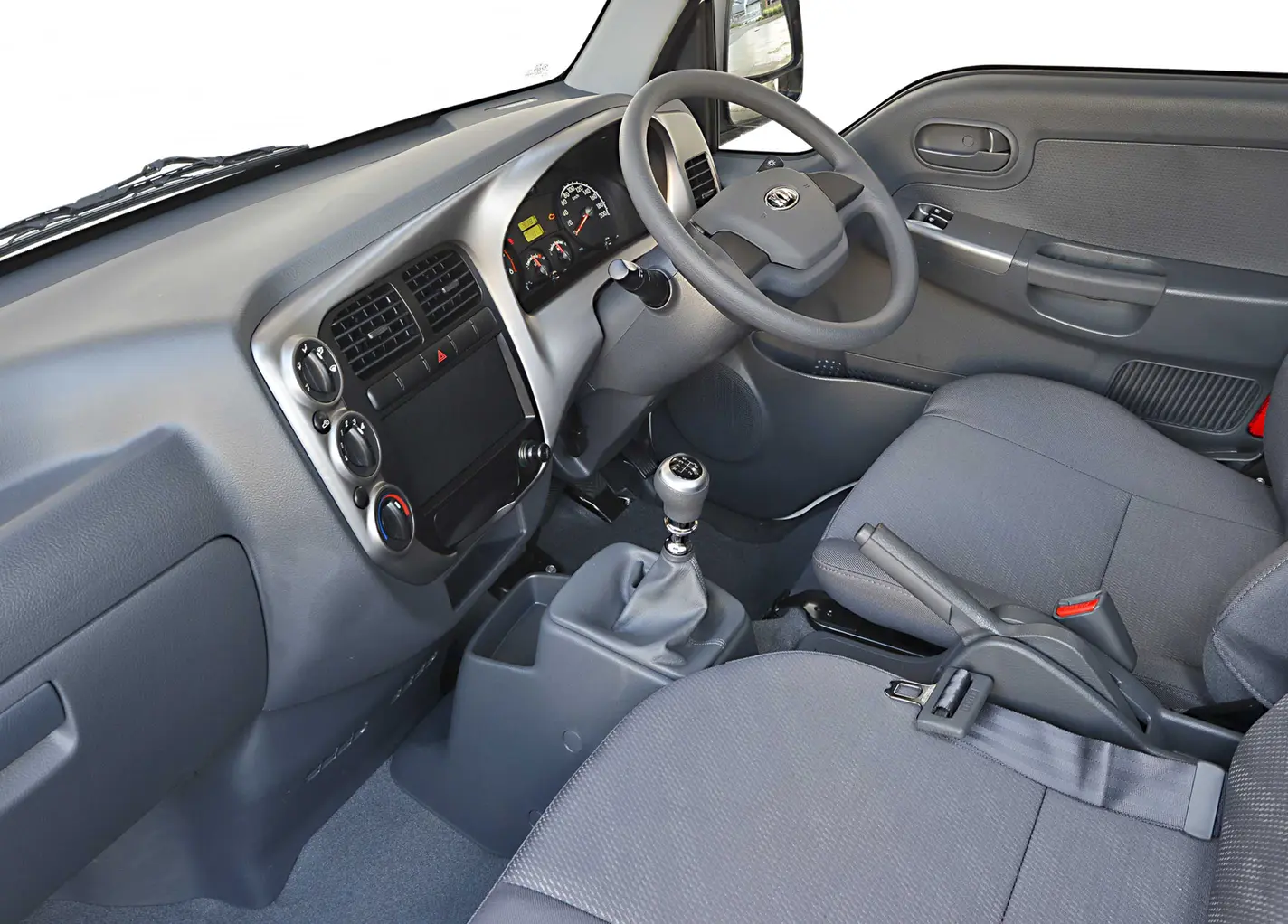

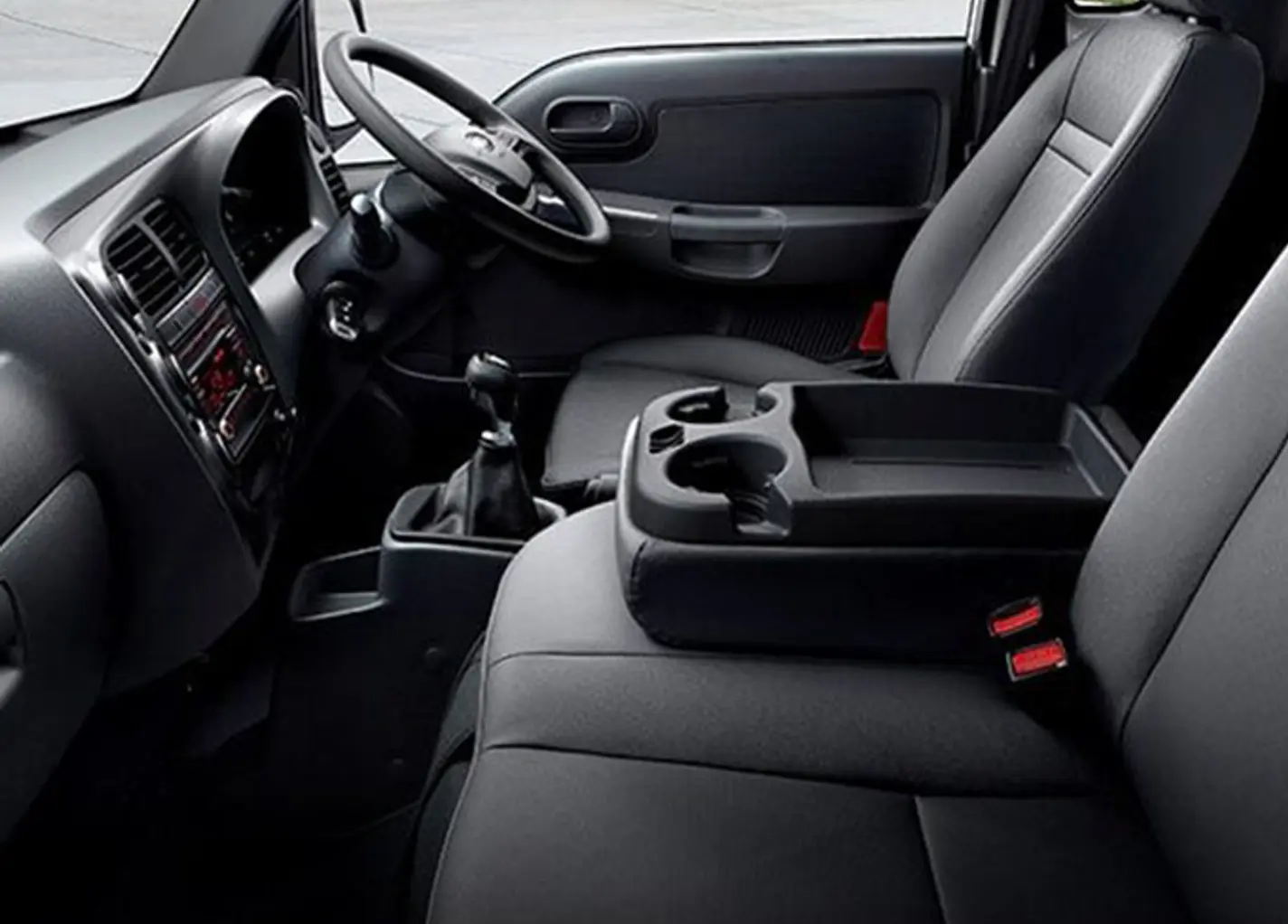

| Independent Sliding & Reclining Driver's Seat | • |
| Cloth Upholstery | • |
| Passenger Seat Bench (Seats 2 People) | • |

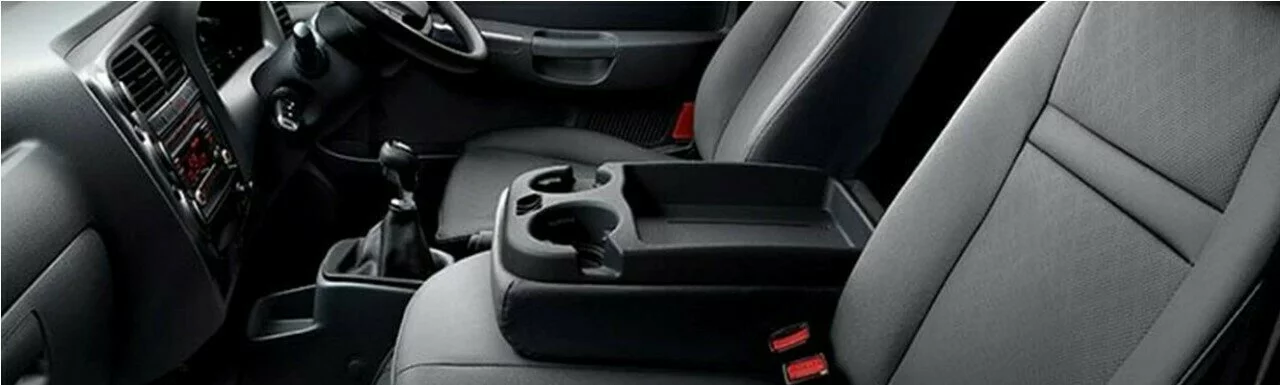

| Centre Seat Back Console with Cup Holders | • |

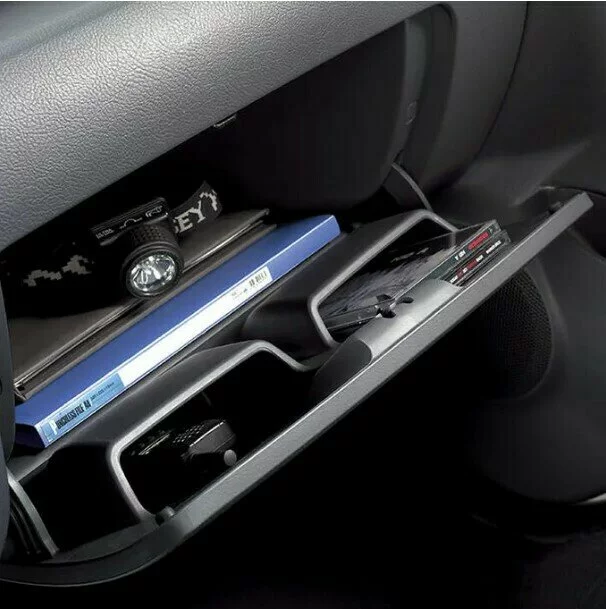

| Glove Box (11 Litres) | • |
| Heater | • |

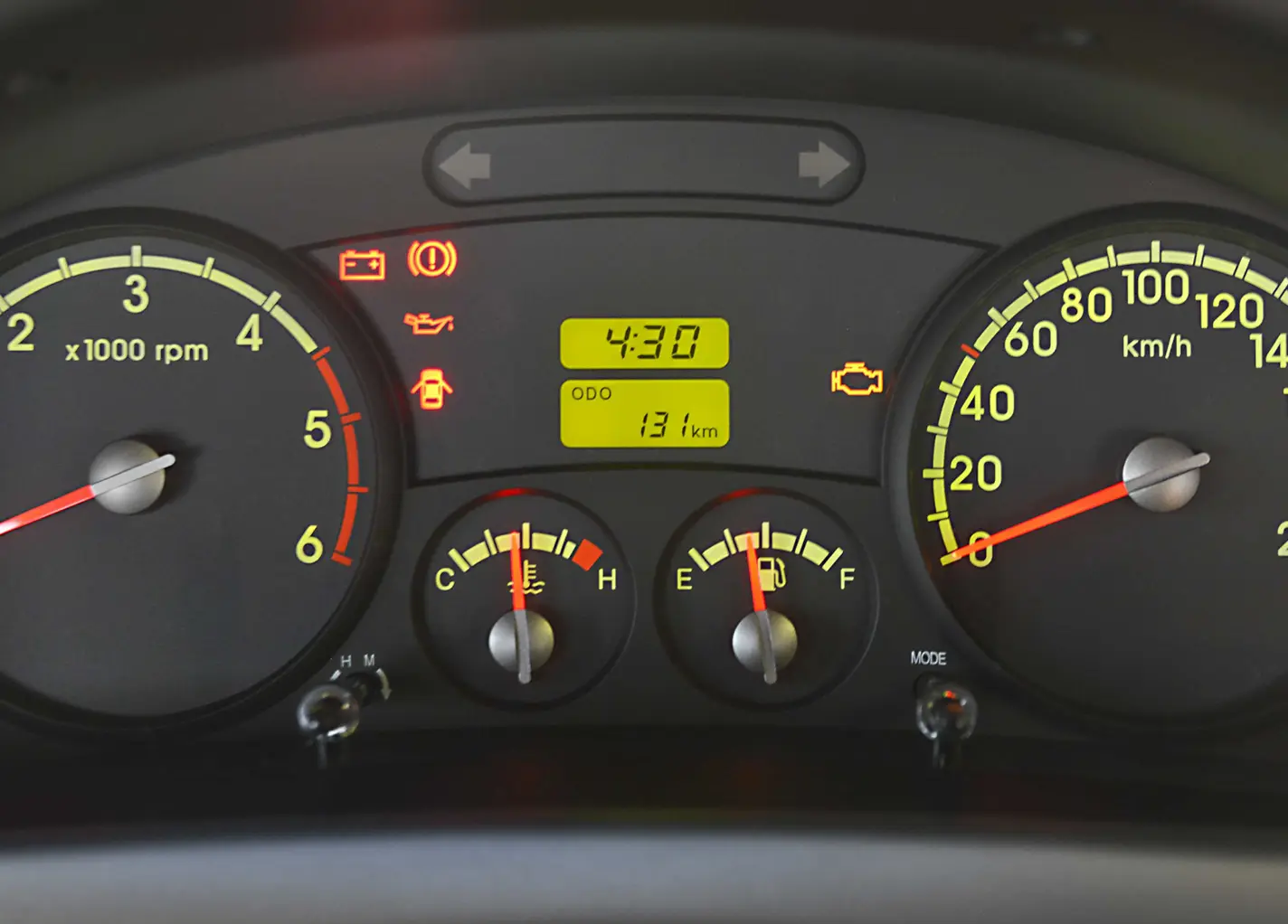

| Digital Clock, Odometer & Tripmeter | • |
| Tachometer | • |

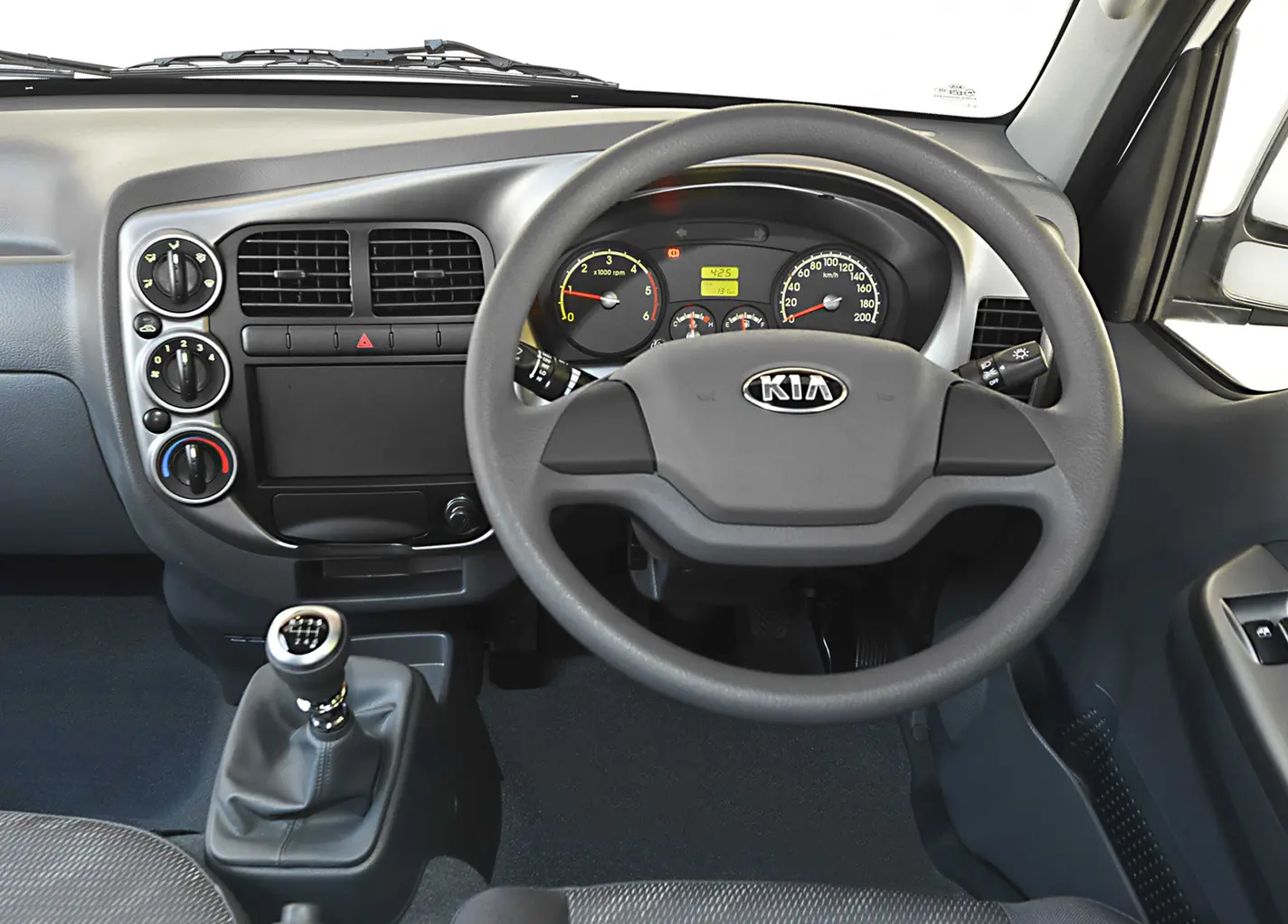

| Tilt-Adjustable Steering | • |
| Cigarette Lighter & Ashtray | • |
| Foot Rest | • |
| Integrated Headlights with Height Adjustment | • |
| Wipers and Integrated Washer | • |
| Body-Coloured Bumpers | • |
| ELR 3-Point Front Seatbelts | • |
| Adjustable Headrests | • |
| Battery Saver | • |
| Maintenance Free Battery | • |
| Mudguards | • |
| Snorkel Type Air Intake Duct | • |

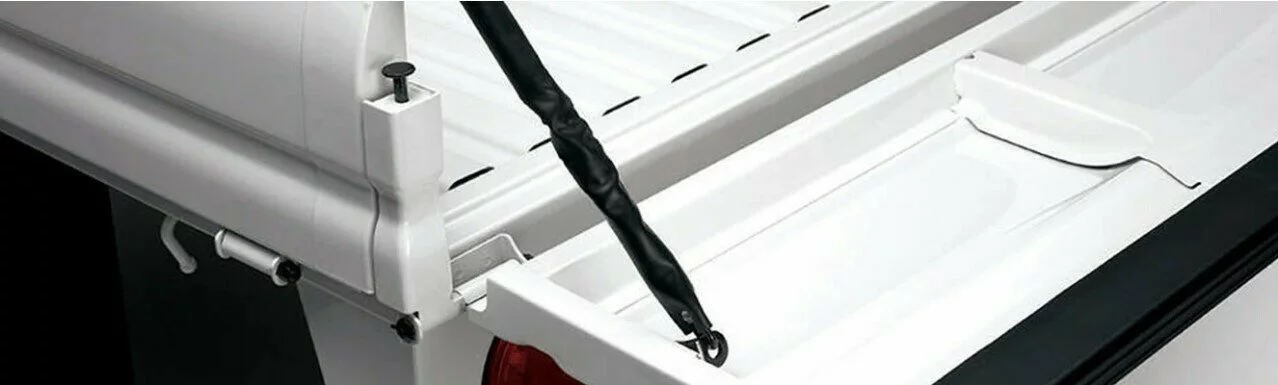

| Covered Rear Gate Chain | • |
| Folding-Type Stopper (to secure long objects) | • |
| Rear Guard Step | • |
| Round-Edged Brim Cover | • |
| Tool Set and Jack | • |
| Specification | K2500 |
|---|---|
| Warranty | 5 Years / Unlimited Kilometre |
| Service Plan | 3 Years / 60 000 km |
| Roadside Assistance | 5 Years / Unlimited Kilometre |
