| Specification | EX | SXL |
|---|---|---|
| Drive Type | 2WD | 2WD |
| Transmission | Auto 8-Speed | Auto 8-Speed |
| Overall Dimensions (L x W x H) (mm) | 5155 x 1995 x 1775 (with roof rack) | 5155 x 1995 x 1775 (with roof rack) |
| Wheelbase (mm) | 3090 | 3090 |
| Overhang Front / Rear (mm) | 935 / 1130 | 935 / 1130 |
| Minimum Ground Clearance (mm) | 172 | 172 |
| Wheel Tread Front / Rear (mm) | 1746 / 1746 | 1741 / 1741 |
| Specification | EX | SXL |
|---|---|---|
| Engine Type | New R 2.2 CRDI | New R 2.2 CRDI |
| Displacement (cc) | 2151 | 2151 |
| Valve System | 16-Valve HLA | 16-Valve HLA |
| Maximum Power | 148 kW @ 3,800 rpm | 148 kW @ 3,800 rpm |
| Maximum Torque | 440 Nm @ 1,750–2,750 rpm | 440 Nm @ 1,750–2,750 rpm |
| Compression Ratio | 16.0 ± 3% | 16.0 ± 3% |
| Bore x Stroke (mm) | 83.0 x 99.4 | 83.0 x 99.4 |
| Fuel Injection System | Common Rail Direct Injection (CRDi) | Common Rail Direct Injection (CRDi) |
| Fuel Type | Diesel (10ppm - 50ppm) | Diesel (10ppm - 50ppm) |
| Acceleration (0-100 km/h) | 10.8 sec | 10.7 sec |
| Maximum Speed (km/h) | 190 | 190 |
| CO2 Emissions Combined (g/km) | 177 | 177 |
| Specification | EX | SXL |
|---|---|---|
| Curb Weight (kg) | 2157 | 2140 |
| Gross Vehicle Mass (GVM) (kg) | 2890 | 2880 |
| Towing Mass Braked / Unbraked (kg) | 1588 / 454 | 1588 / 454 |
| Fuel Tank Capacity (L) | 72 | 72 |

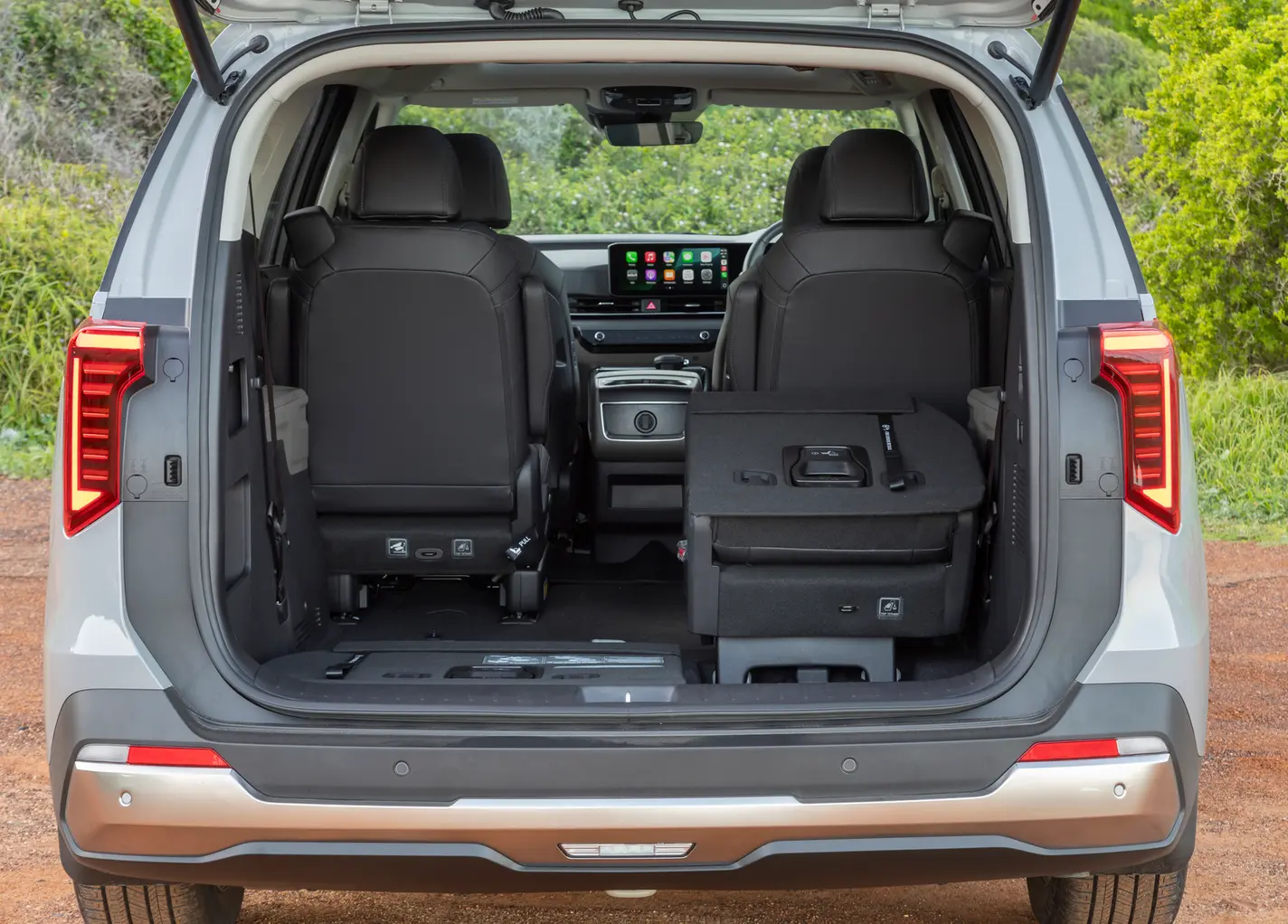

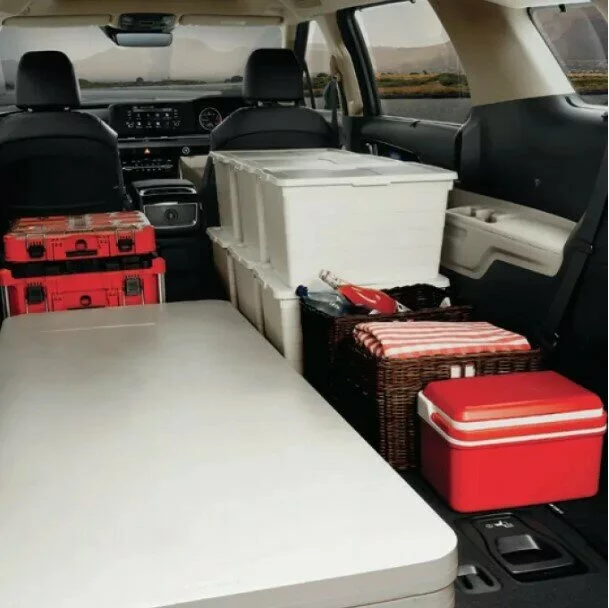

| Cargo Space (VDA 1st / 3rd row, L) | 627 / 2905 | 627 / 2905 |
| Cargo Opening (W x H) (mm) | 1225 x 1025 | 1225 x 1025 |
| Lift-Over Height (mm) | 640 | 640 |
| Steering Type | Motor Power Assisted, Rack & Pinion Type (MDPS) | Motor Power Assisted, Rack & Pinion Type (MDPS) |
| Minimum Turning Radius (m) | 5.6 ± 0.2 | 5.6 ± 0.2 |
| Front Brakes | Disc (345 mm) | Disc (345 mm) |
| Rear Brakes | Disc (325 mm) | Disc (325 mm) |
| Front Suspension | MacPherson Strut Type | MacPherson Strut Type |
| Rear Suspension | Multi Link Type | Multi Link Type |
| Specification | EX | SXL |
|---|---|---|
| Wheels | 18" Alloy | 19" Alloy |
| Tyres | 235/60 R18 | 235/55 R19 |
| Spare Wheel | Temporary Alloy Spare Wheel | Temporary Alloy Spare Wheel |
| Specification | EX | SXL |
|---|---|---|
| Anti-Lock Braking System (ABS) | • | • |
| Number of Airbags | 7 | 7 |
| Airbag Location | Driver & Passenger, Side + Curtain, Driver Knee | Driver & Passenger, Side + Curtain, Driver Knee |
| Central Locking with Immobiliser | • | • |
| Data Dot | • | • |
| Electronic Brake-force Distribution (EBD) | • | • |
| Electric Parking Brake with Auto Hold (EPB) | • | • |
| Electronic Stability Control (ESC) | • | • |
| Hill-Start Assist Control (HAC) | • | • |
| ISOFIX Child Seat Anchors | 2nd & 3rd Row | 2nd & 3rd Row |
| Child Lock (Manual) | • | • |
| Door Lock Control System | Central, Driver + Passengers | Central, Driver + Passengers |
| Parking Assist Sensors (PDC) | Front and Rear | Front and Rear |
| Rheostat | • | • |
| Smart Entry with Push Button Start | • | • |
| Specification | EX | SXL |
|---|---|---|
| Auto Light Control | • | • |
| LED Daytime Running Lights | • | • |
| Front LED Headlights (Multi MFR) | • | • |
| Front Fog Lamp | - | LED |
| Rear Spoiler with LED High Mounted Stop Lamp | • | • |
| Rear Combination Lamp | Bulb | LED |
| Rear Fog Lamp | Bulb | LED |
| Electric Folding & Adjustable Side Mirrors W/ Indicator | • | • |
| Body Colour Door Handles | • | • |
| Roof Rack & Mud Guards | • | • |
| Dual Sliding Doors | Manual | Power |
| Power Tailgate | - | • |

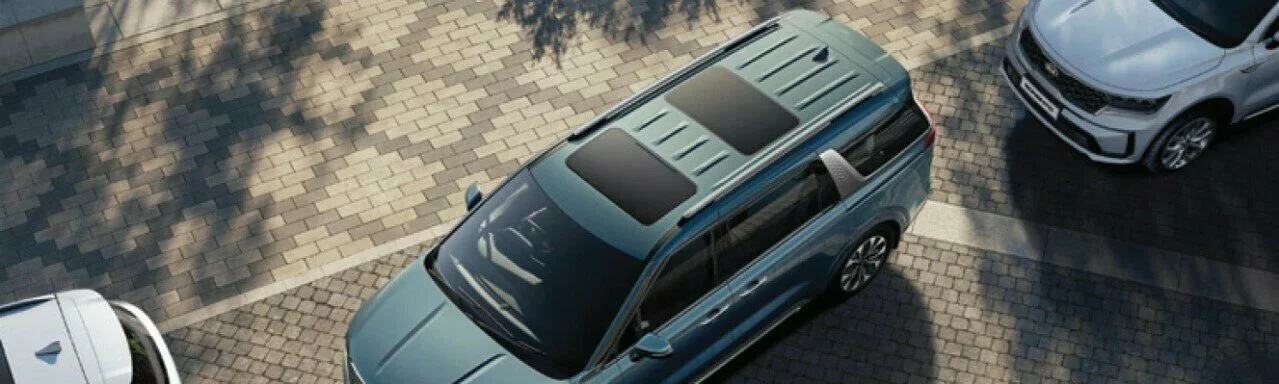

| Dual Sunroof (Tilt & Slide) | - | • |
| Chrome Skid Plates (Front & Rear) | - | • |
| Rain Sensing Wipers | - | • |
| Remote Rear Door and Tailgate Opening on Key | - | • |
| Specification | EX | SXL |
|---|---|---|

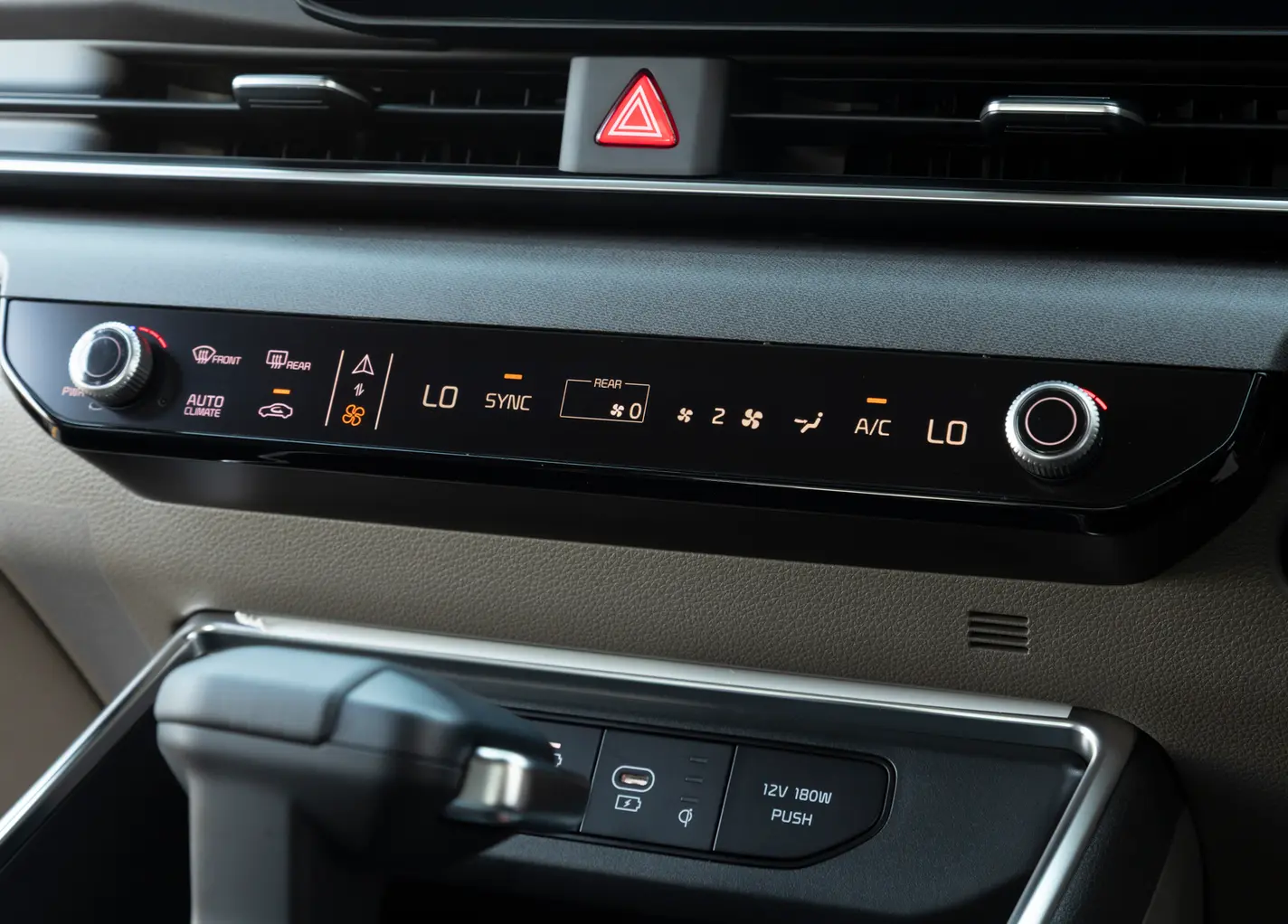

| Automatic Temperature Control Air Conditioner | 3-Zone Full Auto (Front & Rear) | 3-Zone Full Auto (Front & Rear) |
| Leather Seats (Artificial) | • | • |
| Leather Steering Wheel | • | • |
| Steering Wheel Tilt & Telescopic Adjustment | • | • |
| Auto Electric Windows with Safety (Front & Rear) | • | • |
| Driver & Passenger Illuminated Sunvisors | • | • |
| Room Lamp | 2nd & 3rd Rows | 2nd & 3rd Rows |
| LED Room, Cargo & Personal Lamp | - | • |
| Cargo Lamp | LED | LED |
| Front & Rear Cup Holders | • | • |
| Seat Back Panel with Pocket | Driver + Passenger | Driver + Passenger |

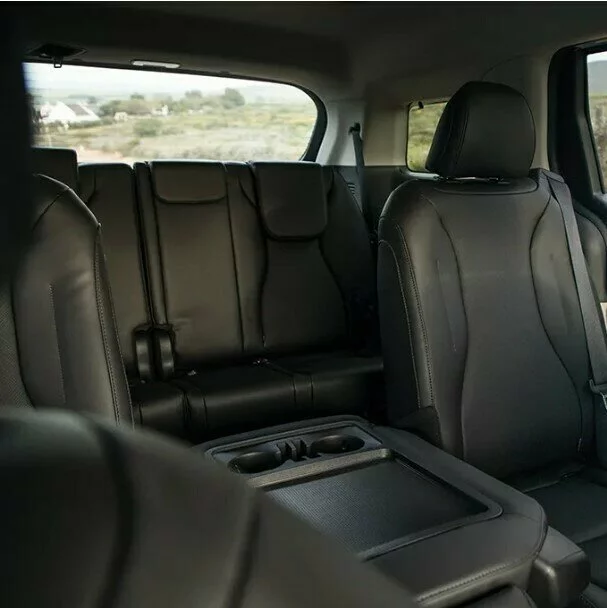

| 60:40 Split Back Folding 3rd Row Seats | • | • |
| Centre Console Armrest W/ Storage Box | • | • |
| Electric Lumbar Support | Driver 2-Way | Driver 4-Way |
| Electric Seats | Driver | Driver + Passenger |
| Driver Memory Seat | - | • |
| Ventilated Front Seats | - | Driver + Passenger |
| Heated Seats | - | Driver + Passenger |
| Rear Door and 3rd Row Curtain Shade | - | • |
| Specification | EX | SXL |
|---|---|---|

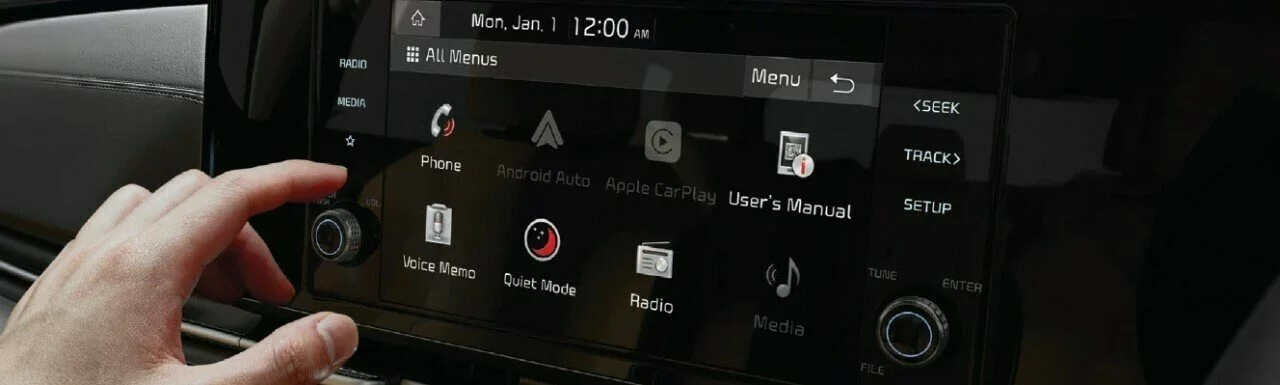

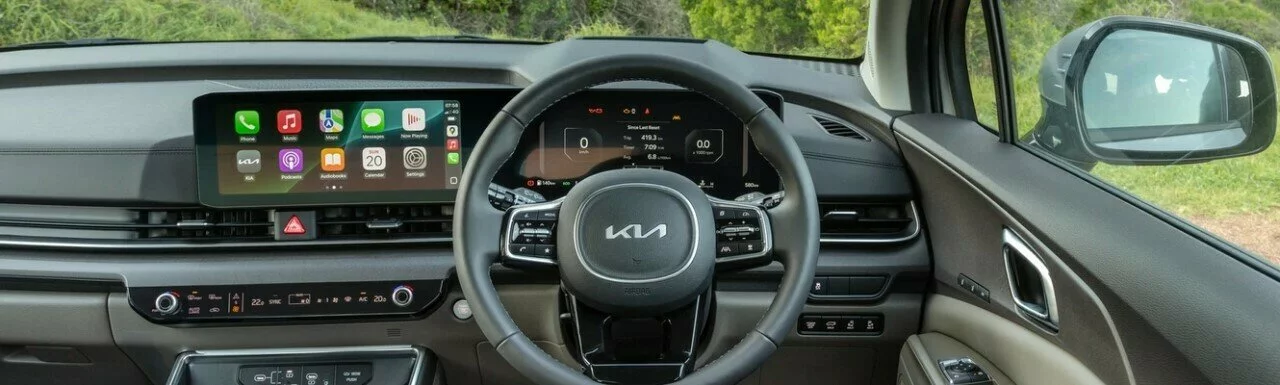

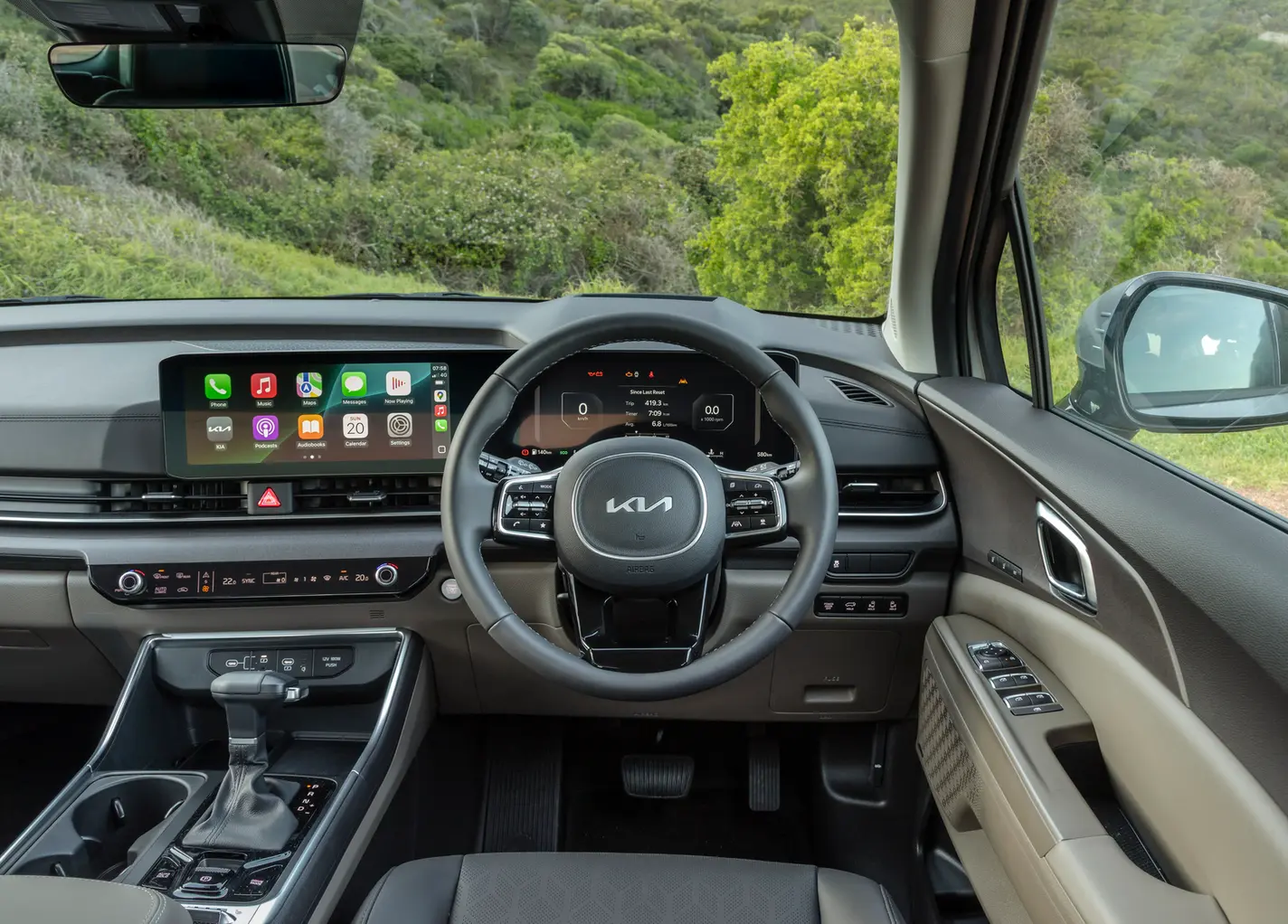

| Infotainment Display | 12.3" Audio Display Infotainment + RDS | 12.3" Audio Display Infotainment + RDS |
| Instrument Cluster Display | 4.2" Supervision Cluster TFT LCD + Rheostat | 12.3" Integrated Display Supervision Cluster TFT LCD + Rheostat |

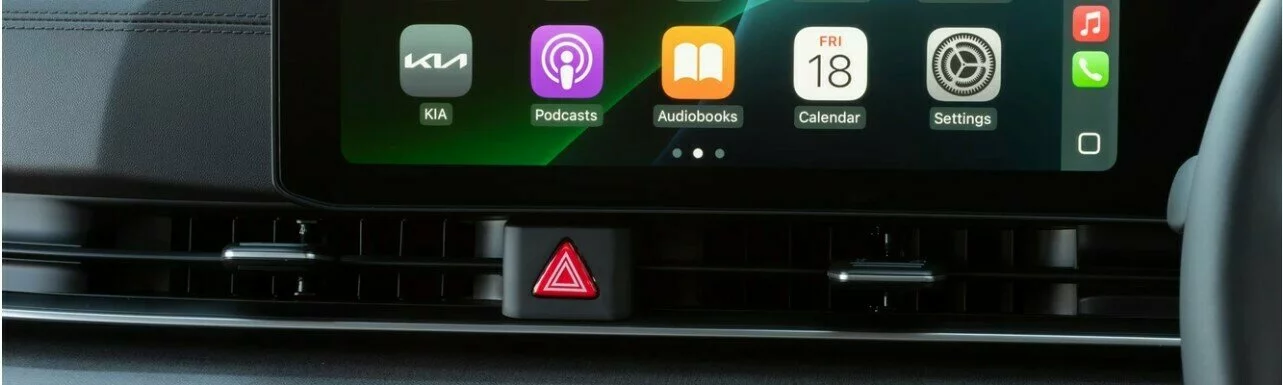

| Wireless Apple CarPlay & Android Auto | • | • |
| Bluetooth with Voice Recognition | • | • |
| Audio Remote Control / Steering Controls | • | • |

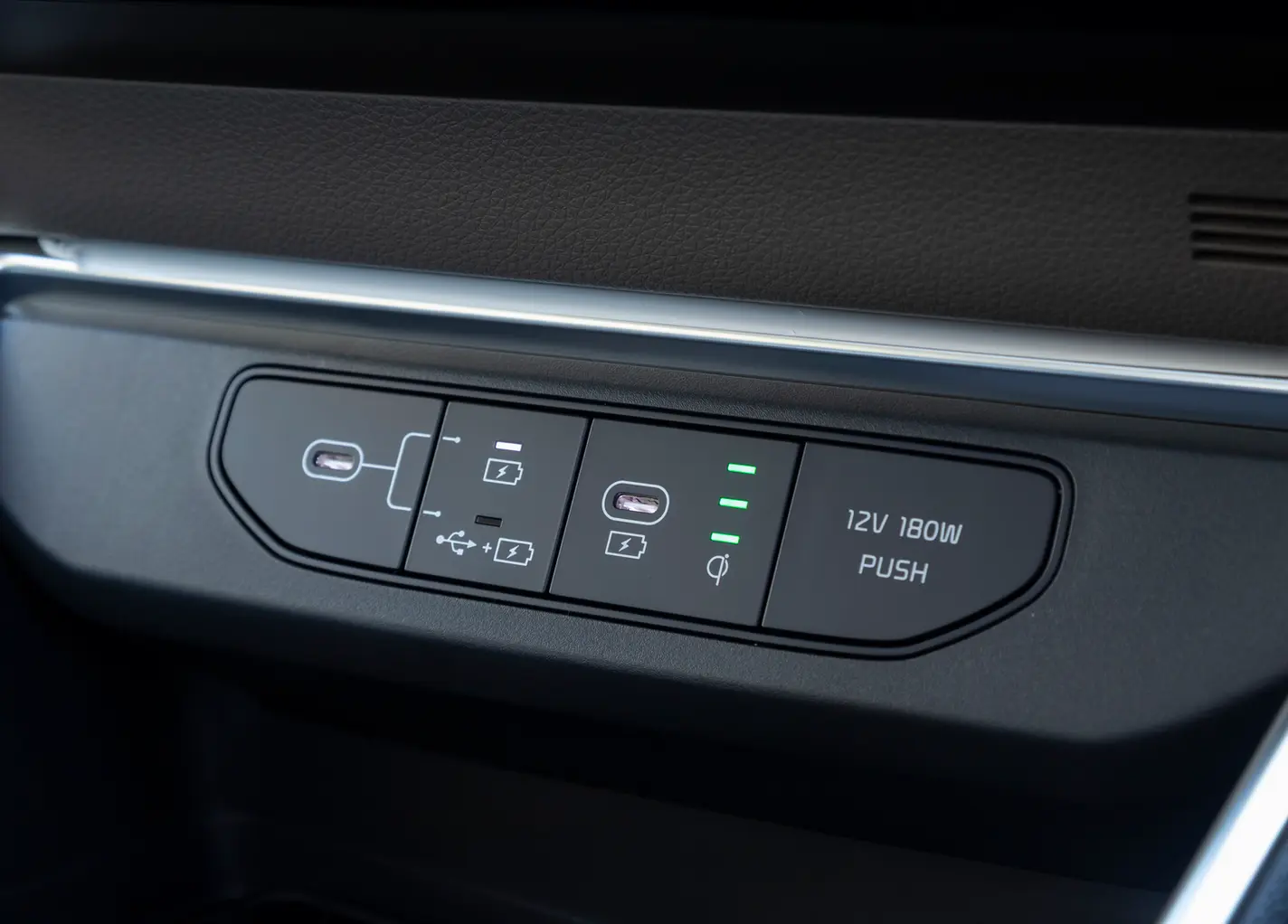

| Front & Rear USB Ports | • | • |

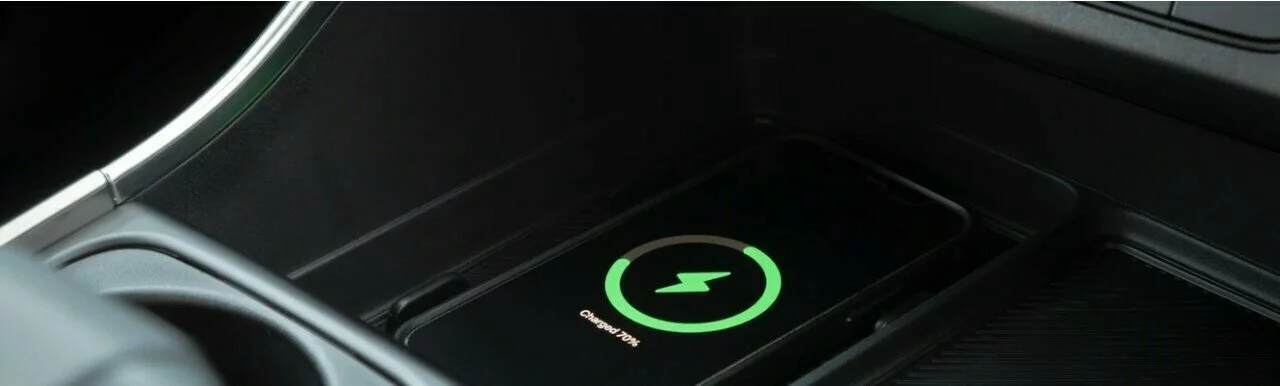

| Wireless Smartphone Charger | • | • |
| Rear Camera View Function (All Gears) | • | • |
| Electrochromatic Inside Rear View Mirror | • | • |
| Overhead Console Lamps | • | LED |

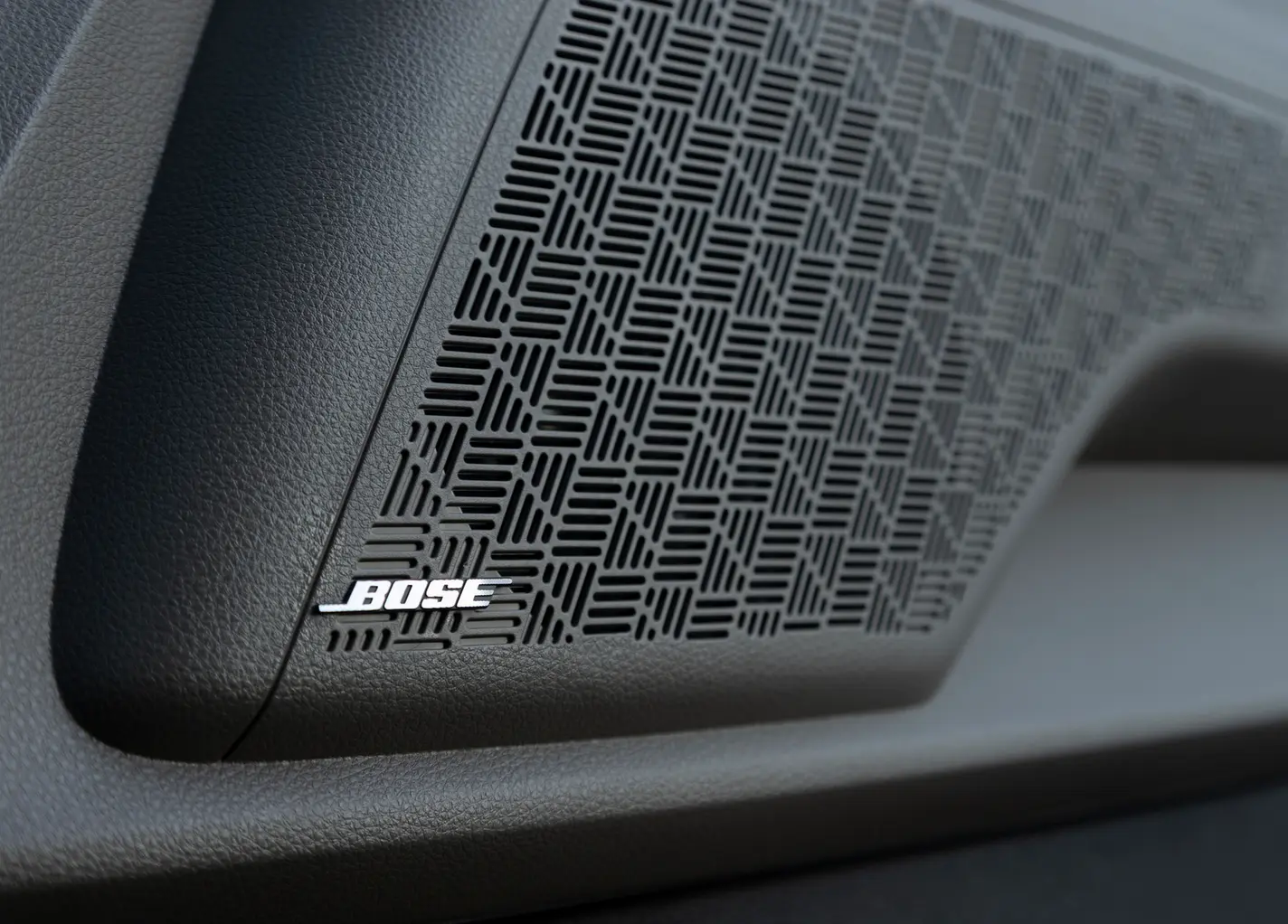

| Speakers | 6 Speakers | 12 Speakers (Bose Premium Sound) |
| Head-Up Display | - | • |
| Specification | EX | SXL |
|---|---|---|
| Drive Mode Select | • | • |
| Remote Start on Key | • | • |
| Cruise Control | Conventional | Adaptive (Smart Cruise Control) |

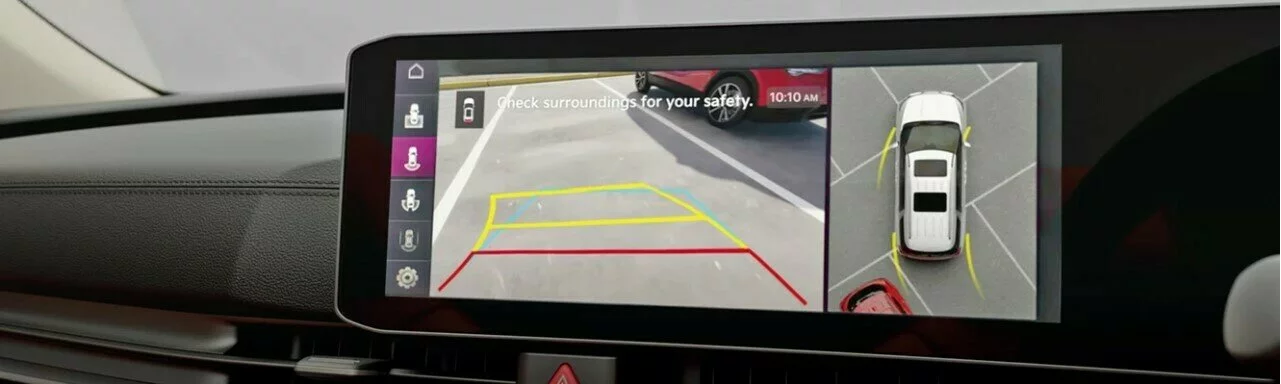

| Around View Monitor (AVM) | - | • |

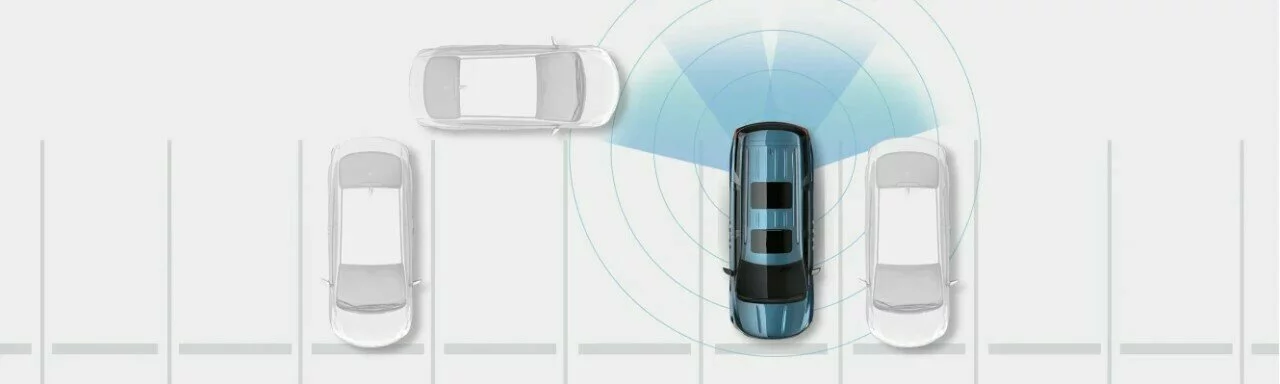

| Rear Cross-Traffic Alert / RCCA | - | • |

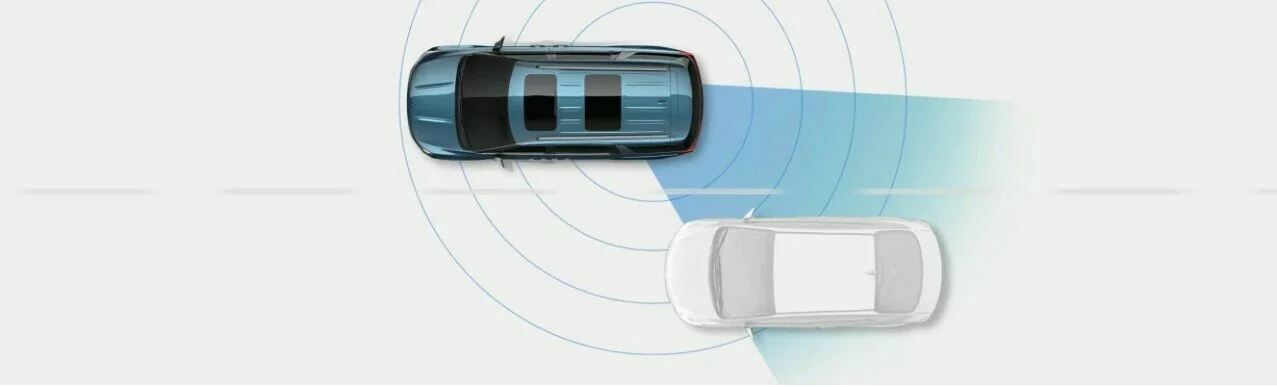

| Blind-Spot Collision-Avoidance Assist (BCA) | - | • |

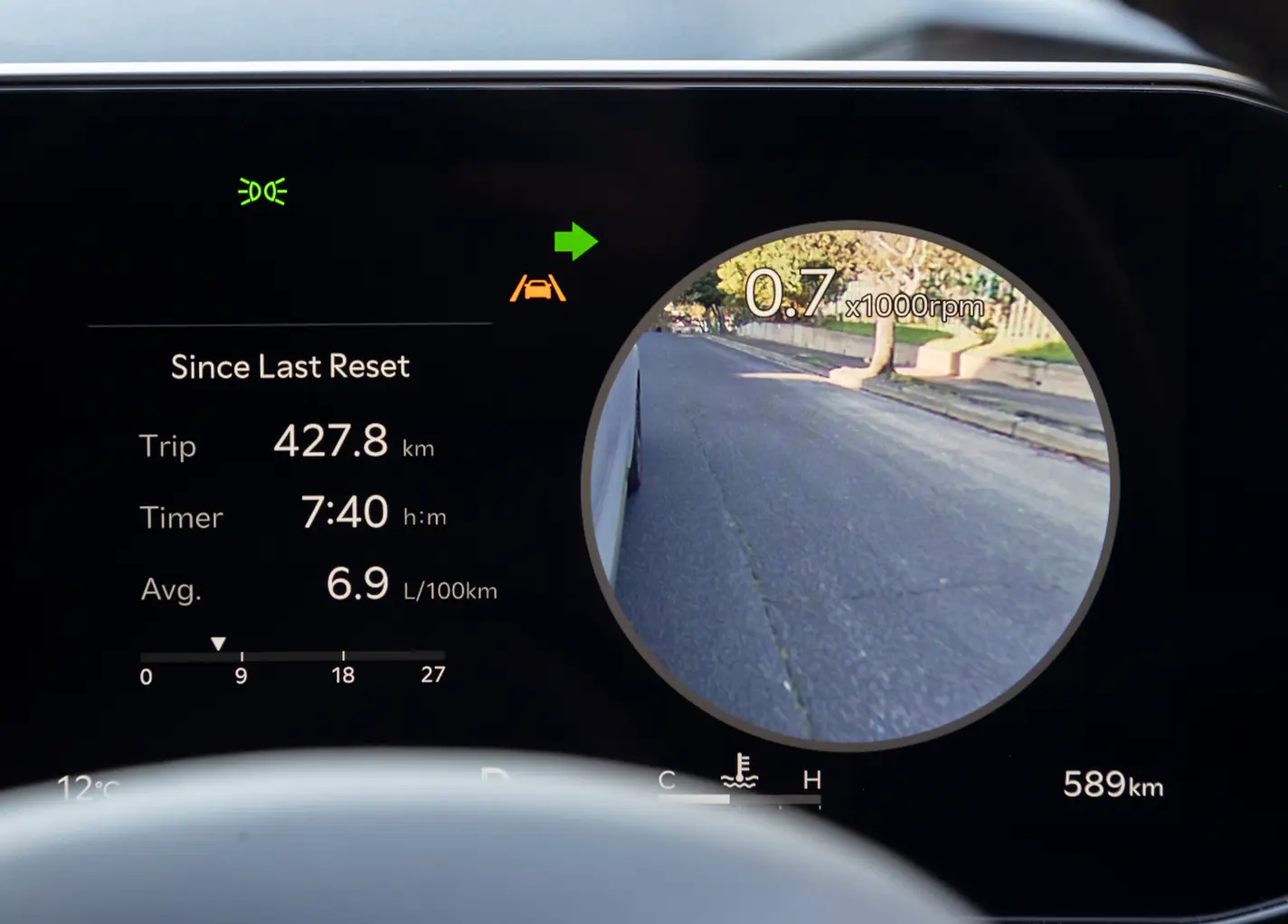

| Blind-Spot View Monitor (BVM) | - | • |
| Lane Keeping Assist (LKA) | - | • |
| Lane Following Assist (LFA) | - | • |
| Forward Collision-Avoidance Assist 2.0 | - | • |
| Specification | EX | SXL |
|---|---|---|
| Warranty | 5 Years / Unlimited Kilometre | 5 Years / Unlimited Kilometre |
| Service Plan | 6 Years / 90 000 km | 6 Years / 90 000 km |
| Roadside Assistance | 5 Years / Unlimited Kilometre | 5 Years / Unlimited Kilometre |
