| Specification | LS Petrol | LS Diesel | LX | EX | SX |
|---|---|---|---|---|---|
| Drive Train Configuration | 2WD | 2WD | 2WD | 2WD | 2WD |
| Transmission | 6MT | 6MT | 6AT | 6AT | 6AT |
| Overall Length x Width x Height (mm) | 4550 x 1800 x 1734 | 4550 x 1800 x 1734 | 4550 x 1800 x 1734 | 4550 x 1800 x 1734 | 4550 x 1800 x 1734 |
| Wheelbase (mm) | 2780 | 2780 | 2780 | 2780 | 2780 |
| Wheel Tread (mm) | 1575 (195/65R15) | 1575 (205/65R16) | 1563 (215/55R17) | 1563 (215/55R17) | 1563 (215/55R17) |
| Overhang Front/Rear (mm) | 830 / 940 | 830 / 940 | 830 / 940 | 830 / 940 | 830 / 940 |
| Specification | LS Petrol | LS Diesel | LX | EX | SX |
|---|---|---|---|---|---|
| Engine Type | Gamma II 1.5 MPI | In-line 4 Cylinder, 16-Valve HLA | In-line 4 Cylinder, 16-Valve HLA | In-line 4 Cylinder, 16-Valve HLA | In-line 4 Cylinder, 16-Valve HLA |
| Displacement (cc) | 1497 | 1493 | 1493 | 1493 | 1493 |
| Valve System | 16-Valve HLA | 16-Valve HLA | 16-Valve HLA | 16-Valve HLA | 16-Valve HLA |
| Maximum Power | 84 kW @ 6,300 rpm | 85 kW @ 4,000 rpm | 85 kW @ 4,000 rpm | 85 kW @ 4,000 rpm | 85 kW @ 4,000 rpm |
| Maximum Torque | 144 Nm @ 4,500 rpm | 250 Nm @ 1,500–2,750 rpm | 250 Nm @ 1,500–2,750 rpm | 250 Nm @ 1,500–2,750 rpm | 250 Nm @ 1,500–2,750 rpm |
| Compression Ratio | 11.0 : 1 | 16.0 : 1 | 16.0 : 1 | 16.0 : 1 | 16.0 : 1 |
| Bore x Stroke (mm) | 75.6 x 83.4 | 75.0 x 84.5 | 75.0 x 84.5 | 75.0 x 84.5 | 75.0 x 84.5 |
| Fuel System | Multi Point Injection (MPI) | Common Rail Direct Injection (CRDi) | Common Rail Direct Injection (CRDi) | Common Rail Direct Injection (CRDi) | Common Rail Direct Injection (CRDi) |
| Fuel Type | Petrol | Diesel (10ppm - 50ppm) | Diesel (10ppm - 50ppm) | Diesel (10ppm - 50ppm) | Diesel (10ppm - 50ppm) |
| Fuel Consumption (L/100km) | 7.2 (Combined) | 5.0 (Combined) | 5.3 (Combined) | 5.3 (Combined) | 5.3 (Combined) |
| Acceleration (0-100 km/h) | 11.1 sec (est) | 12.0 sec | 13.1 sec | 13.1 sec | 13.1 sec |
| Maximum Speed (km/h) | 175 | 175 | 170 | 170 | 170 |
| CO2 Emissions Combined (g/km) | 162 | 133 | 139 | 139 | 139 |
| Specification | LS Petrol | LS Diesel | LX | EX | SX |
|---|---|---|---|---|---|
| Ground Clearance (mm) | 180 | 180 | 180 | 180 | 180 |
| Curb Weight (kg) | 1395 | 1462 | 1488 | 1488 | 1488 |
| Gross Vehicle Mass (GVM) (kg) | 1910 | 2020 | 2050 | 2050 | 2050 |
| Gross Combination Weight (kg) | 1910 | 2020 | 2050 | 2050 | 2050 |
| Towing Mass Braked / Unbraked | N/A | N/A | N/A | N/A | N/A |
| Fuel Tank Capacity (L) | 45 | 45 | 45 | 45 | 45 |
| Front Brakes | Disc (381mm) | Disc (381mm) | Disc (381mm) | Disc (381mm) | Disc (381mm) |
| Rear Brakes | Disc (355mm) | Disc (355mm) | Disc (355mm) | Disc (355mm) | Disc (355mm) |
| Front Suspension | McPherson Strut | McPherson Strut | McPherson Strut | McPherson Strut | McPherson Strut |
| Rear Suspension | Coupled Torsion Beam | Coupled Torsion Beam | Coupled Torsion Beam | Coupled Torsion Beam | Coupled Torsion Beam |
| Steering Type | MDPS (DC) | MDPS (DC) | MDPS (DC) | MDPS (DC) | MDPS (DC) |
| Specification | LS Petrol | LS Diesel | LX | EX | SX |
|---|---|---|---|---|---|

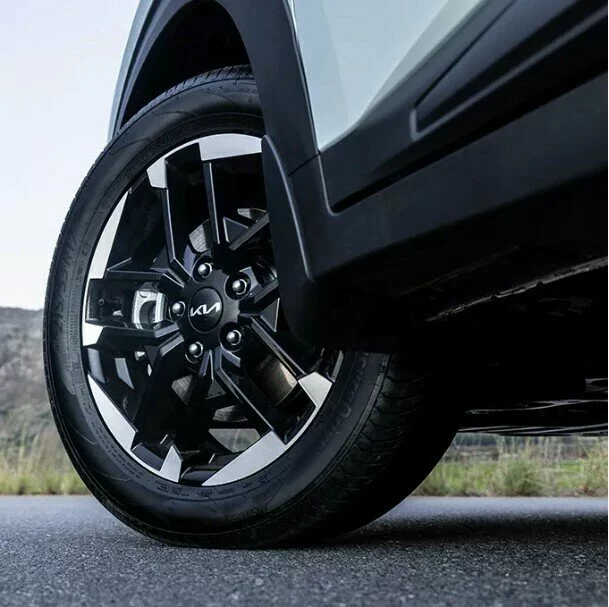

| Wheels | 15" Alloy | 16" Styled | 17" Alloy | 17" Alloy | 17" Alloy |
| Tyre Size | 195/65R15 | 205/65R16 | 215/55R17 | 215/55R17 | 215/55R17 |
| Specification | LS Petrol | LS Diesel | LX | EX | SX |
|---|---|---|---|---|---|
| Auto Light Control | • | • | • | • | • |
| Halogen Headlamps (Bi-function projection) | • | • | • | • | - |
| High-Mounted Stop Lamp | • | • | • | • | • |
| LED Daytime Running Lights | - | - | - | • | • |
| LED Multi-Focus Reflector Headlamps | - | - | - | - | • |
| LED Rear Combination Lamp | • (LED + Bulb) | • (LED + Bulb) | • | • | • |
| Mud Guards | • | • | • | • | • |
| Auto-Folding Side Mirrors | - | - | • | • | • |
| Body-Colour Outside Handle | • | • | • | • | • |
| Roof Rack | - | - | • | • | • |

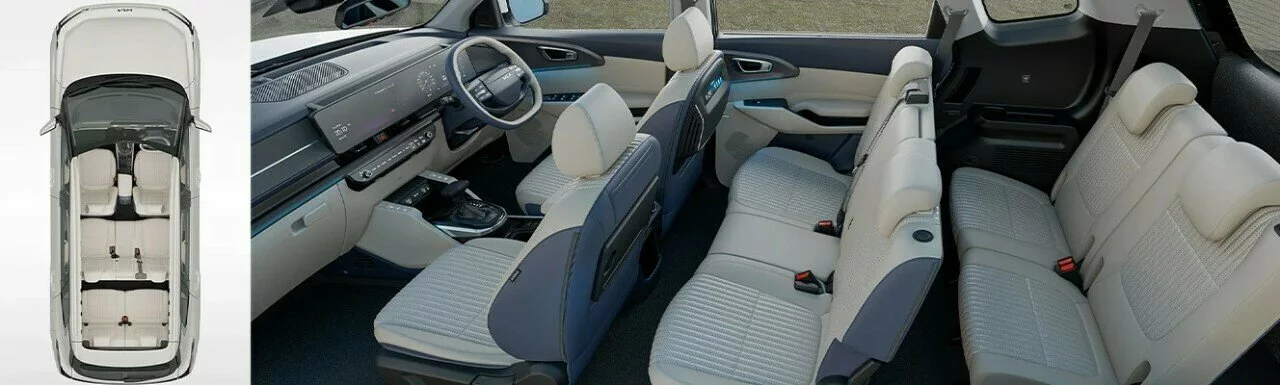

| Specification | LS Petrol | LS Diesel | LX | EX | SX |
|---|---|---|---|---|---|
| Leg Room Front / 2nd Row / 3rd Row (mm) | 1031 / 928 / 898 | 1031 / 928 / 898 | 1031 / 928 / 898 | 1031 / 928 / 898 | 1031 / 928 / 898 |
| Head Room Front / Rear (mm) | 1062 / 1045 / 935 | 1062 / 1045 / 935 | 1062 / 1045 / 935 | 1062 / 1045 / 935 | 1062 / 1045 / 935 |
| Shoulder Room Front / Rear (mm) | 1421 / 1441 / 1317 | 1421 / 1441 / 1317 | 1421 / 1441 / 1317 | 1421 / 1441 / 1317 | 1421 / 1441 / 1317 |
| Hip Room Front / Rear (mm) | 1360 / 1350 / 1062 | 1360 / 1350 / 1062 | 1360 / 1350 / 1062 | 1360 / 1350 / 1062 | 1360 / 1350 / 1062 |
| Overhead Console Lamp | • | • | • | • | • |
| 2nd & 3rd Row Room Lamp | • | • | • | • | • |
| Artificial Leather Steering & Gear Knob | - | - | • | • | • |

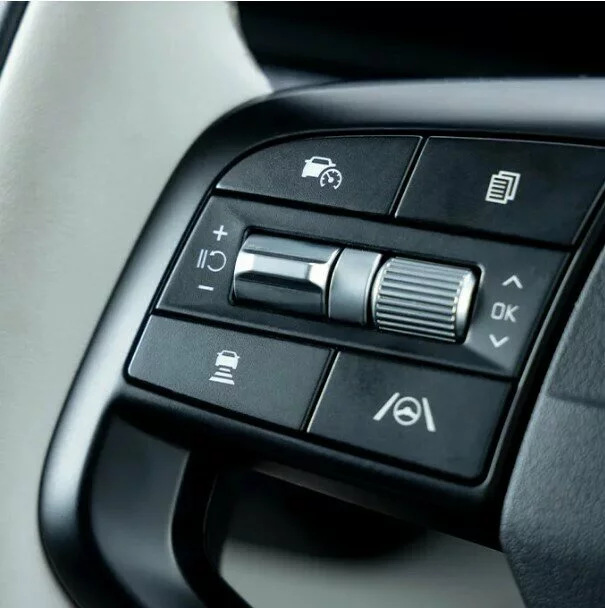

| Remote Steering Controls | • | • | • | • | • |
| 60:40 Split Back Folding 2nd Row Seats | • | • | • | • | • |
| 50:50 Split Back Folding 3rd Row Seats | • | • | • | • | • |
| Sunvisor with Vanity Mirror (Passenger) | - | - | • | • | • |
| Driver Seat Height Adjustment | • | • | • | • | Power Adjustment |
| Back Seat Panel with Pocket (Driver & Passenger) | - | - | • | • | • |
| Electric Driver Seat Adjustment | - | - | - | - | Driver Seat |

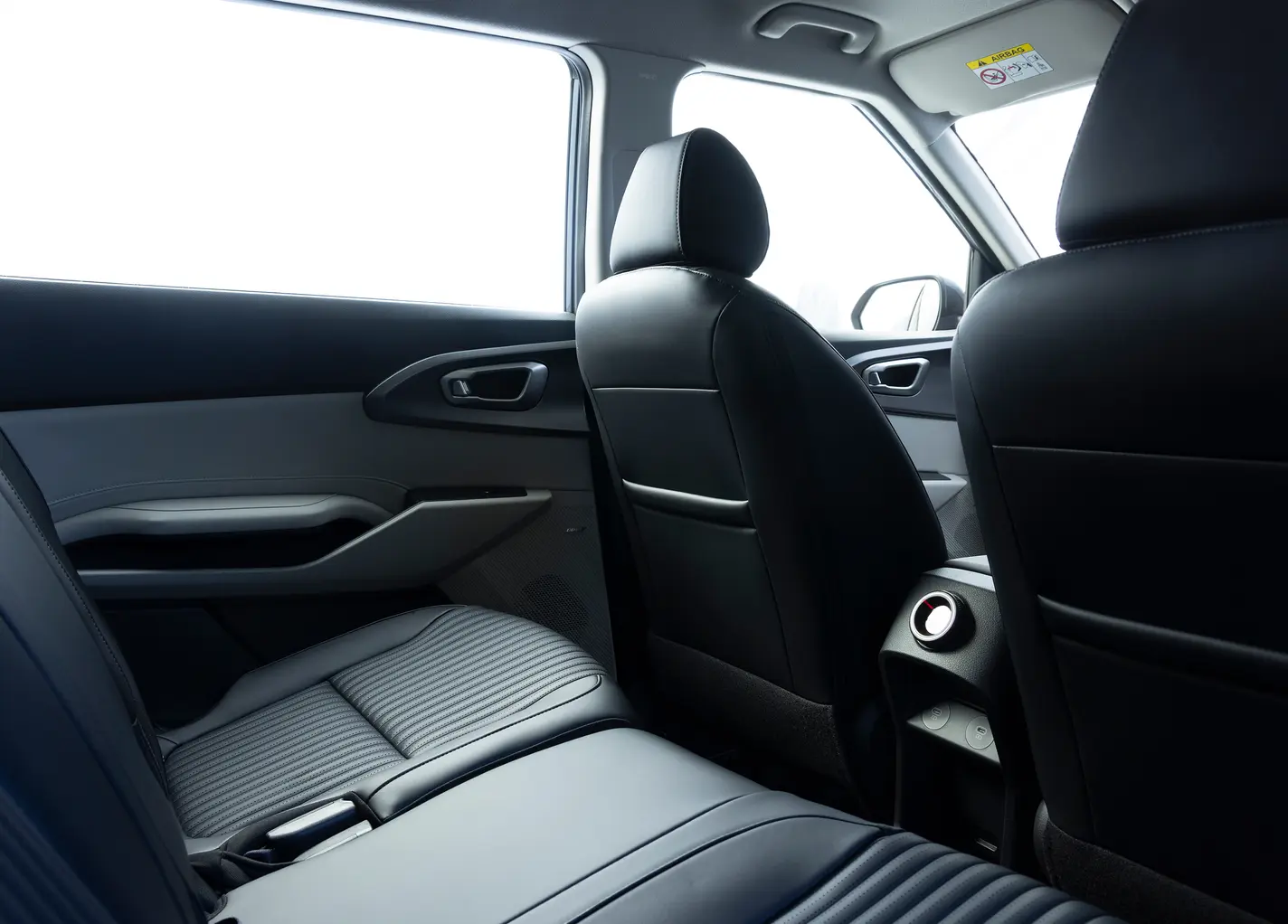

| Seat Material | Cloth & Artificial Leather | Cloth & Artificial Leather | Artificial Leather | Artificial Leather | Artificial Leather |
| Electronic Lumbar Support | - | - | - | - | Driver Seat |
| Specification | LS Petrol | LS Diesel | LX | EX | SX |
|---|---|---|---|---|---|
| Battery Saver System | • | • | • | • | • |
| Smart Key (FOB) with Push Button Start | - | - | - | • | • |
| Centre Console Armrest with Integrated Storage Box | • | • | • | • | • |
| Air Conditioner | Manual | Manual | Manual | Automatic Single Zone | Automatic Single Zone |
| Rear Air Conditioner Manual Control | • | • | • | • | • |
| Electric Window Control (Front & Rear) | • | • | • | • | • |
| Cruise Control (Conventional) | - | - | • | • | - |
| Smart Cruise Control with Stop & Go | - | - | - | - | • |
| Electric Windows Safety Control (Driver & Passenger) | - | - | - | - | • |
| Front Heated Seats (3-Level Control) | - | - | - | - | • |
| Specification | LS Petrol | LS Diesel | LX | EX | SX |
|---|---|---|---|---|---|
| 8" AV Infotainment Display | • | • | • | - | - |
| 12.3" AV Infotainment Display | - | - | - | • | • |
| Front USB Port | • | • | • | • | • |
| Wireless Apple CarPlay & Android Auto | • | • | • | • | • |
| Bluetooth with Voice Recognition & Audio Controls | • | • | • | • | • |
| Front USB Charger & Charge Ports | • | • | • | • | • |
| Supervision 4.2" TFT LCD Cluster | • | • | • | • | - |

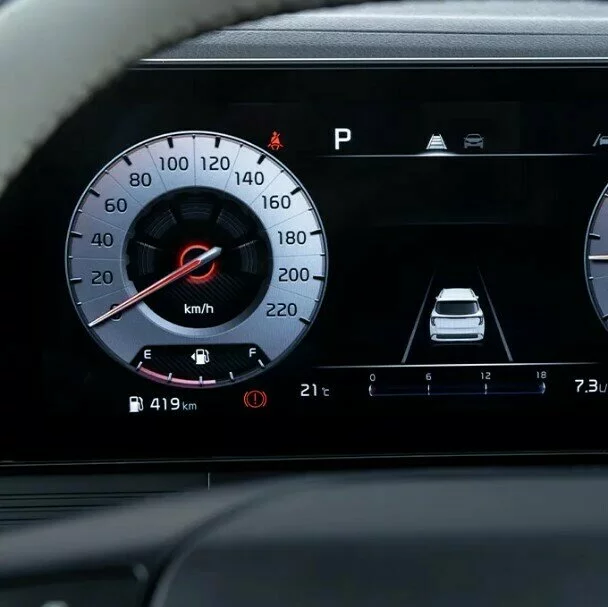

| Digital 12" TFT Integrated LCD Cluster Display | - | - | - | - | • |

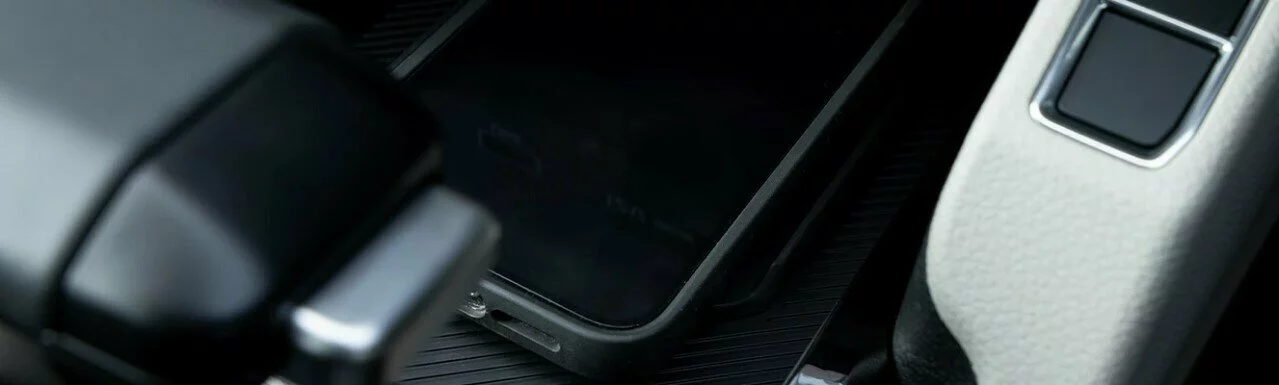

| Wireless Charger for Smart Phone | - | - | • | • | • |
| Speakers + Tweeters | 6 | 6 | 6 | 6 | 8 |
| Ambient Mood Lighting | - | - | - | - | • |
| External Amplifier & Centre Speaker (Front) | - | - | - | - | • |

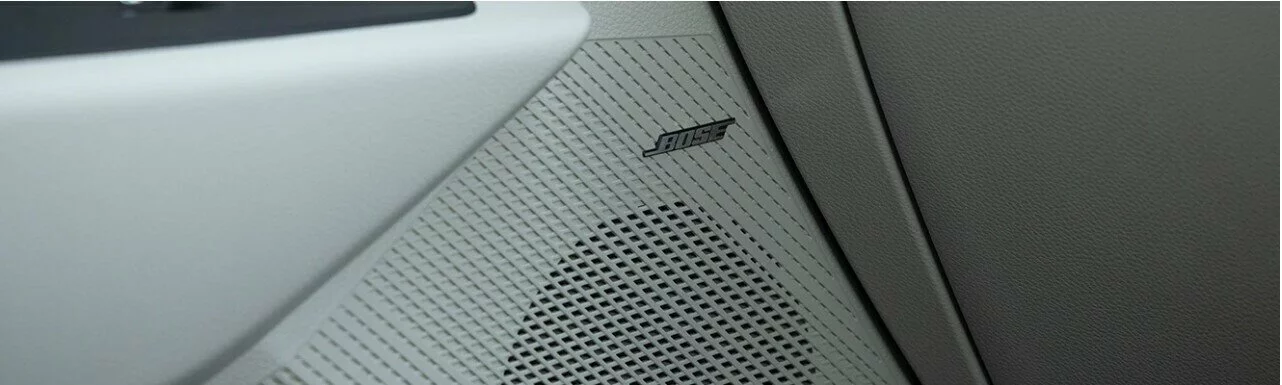

| Bose Premium Sound System | - | - | - | - | • |
| Specification | LS Petrol | LS Diesel | LX | EX | SX |
|---|---|---|---|---|---|
| Anti-Lock Braking System (ABS) | • | • | • | • | • |
| Electronic Stability Control (ESC) | • | • | • | • | • |
| Hill Start Assist Control (HAC) | • | • | • | • | • |
| Airbags | Front, Thorax & Pelvis, Curtain | Front, Thorax & Pelvis, Curtain | Front, Thorax & Pelvis, Curtain | Front, Thorax & Pelvis, Curtain | Front, Thorax & Pelvis, Curtain |
| Data Dot | • | • | • | • | • |
| Central Locking with Immobiliser | • | • | • | • | • |
| Rear View Camera | • | • | • | • | • |
| ISOFIX Child Seat Anchors | • | • | • | • | • |
| Child Safety Lock (Manual) | • | • | • | • | • |
| Seat Belt Height Adjustment | - | - | • | • | • |
| Manual Speed Limit Assist (MSLA) | - | - | • | • | • |
| Parking Distance Warning (PDW) | Rear | Rear | Rear | Front & Rear | Front & Rear |

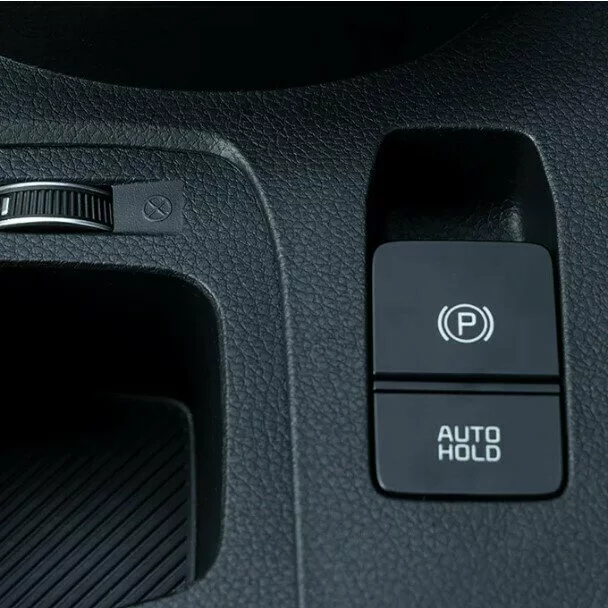

| Electric Parking Brake (EPB) with Auto Hold | - | - | - | - | • |
| Surround View Monitor (SVM) | - | - | - | - | • |
| Blind-Spot View Monitor (BVM) | - | - | - | - | • |
| Blind-Spot Collision-Avoidance Assist Rear (BCA) | - | - | - | - | • |
| Lane Keeping Assist (LKA) | - | - | - | - | • |
| Forward Collision-Avoidance Assist (FCA) | - | - | - | - | • |
| Lane Following Assist (LFA) | - | - | - | - | • |
| Specification | LS Petrol | LS Diesel | LX | EX | SX |
|---|---|---|---|---|---|
| Warranty | 5 Years / Unlimited Kilometre | 5 Years / Unlimited Kilometre | 5 Years / Unlimited Kilometre | 5 Years / Unlimited Kilometre | 5 Years / Unlimited Kilometre |
| Service Plan | 3 Years / 45 000 km | 3 Years / 45 000 km | 3 Years / 45 000 km | 3 Years / 45 000 km | 3 Years / 45 000 km |
| Roadside Assistance | 5 Years / Unlimited Kilometre | 5 Years / Unlimited Kilometre | 5 Years / Unlimited Kilometre | 5 Years / Unlimited Kilometre | 5 Years / Unlimited Kilometre |
